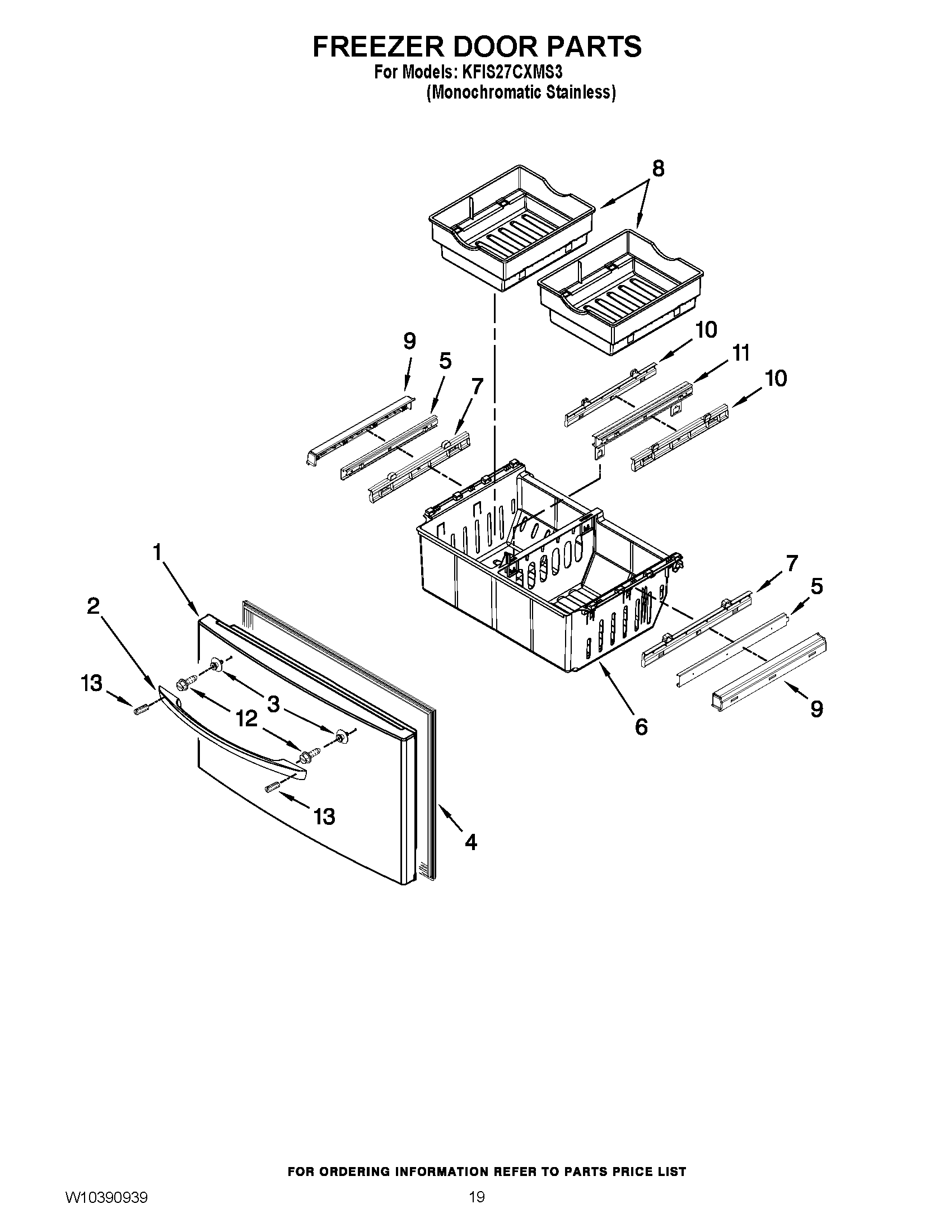

KFIS27CXMS3 10 – FREEZER DOOR PARTS

KFIS27CXMS3 10 – FREEZER DOOR PARTS

Written by

in

KFIS27CXMS3 10 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (STAINLESS)
2WPW10314522K Whirlpool Refrigerator Handle
3WP67006113 Whirlpool Stud Bolt
4GASKET-FIP
5WPW10235367 Whirlpool Refrigerator Glide
6WP67006366 Whirlpool Refrigerator Lower Bin
7W10166742 Whirlpool Refrigerator Bracket
8WP12924903 Whirlpool Refrigerator Freezer Bin
9W10826788 Whirlpool Refrigerator Retainer
9WP67006368 Whirlpool Refrigerator Retainer
1012925404SP Whirlpool Refrigerator Bracket
11WPW10235357 Whirlpool Refrigerator Glide Assembly
12SCREW
13WP3400203 Whirlpool Screw
