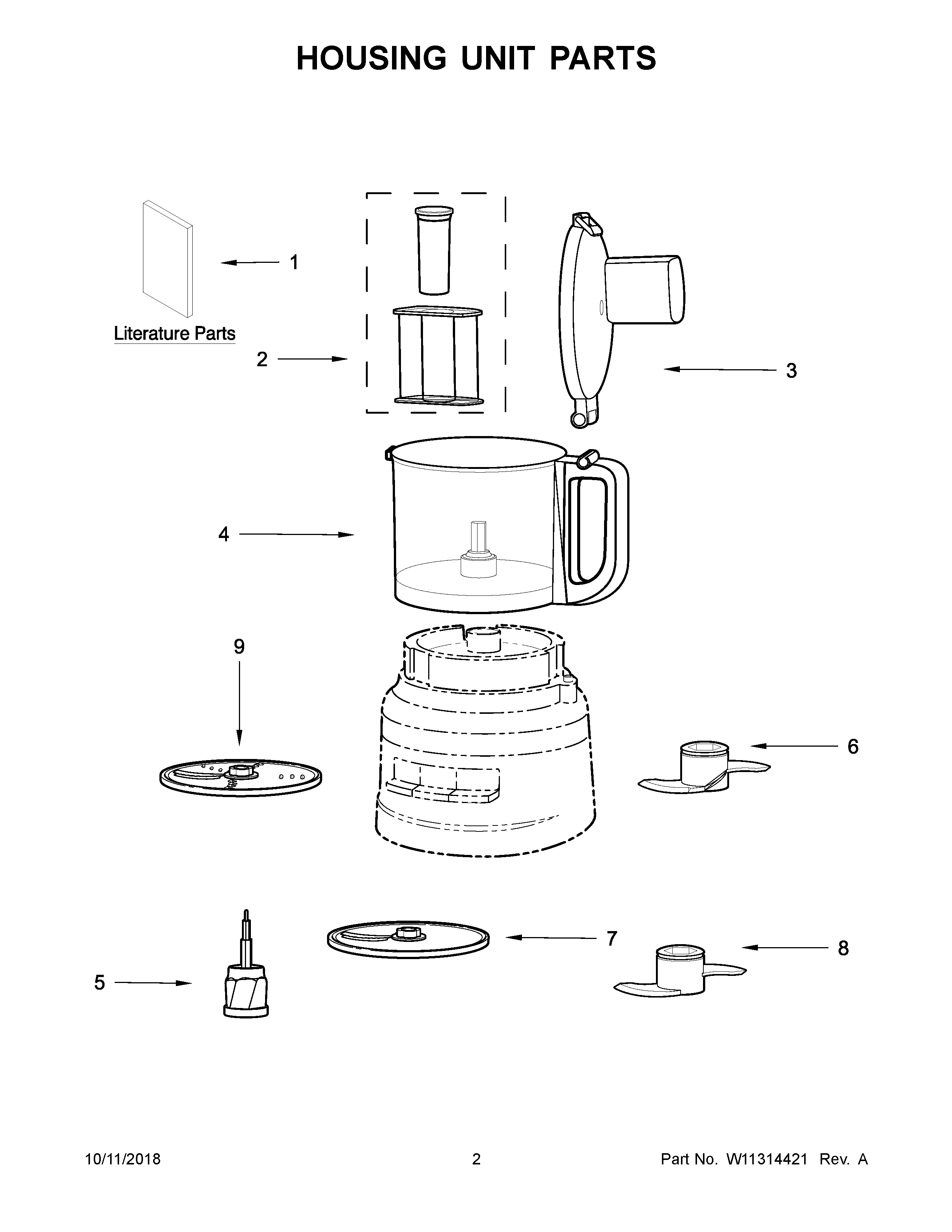

KFP0718OB0 02 – HOUSING UNIT PARTS

KFP0718OB0 02 – HOUSING UNIT PARTS

Written by

in

KFP0718OB0 02 – HOUSING UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIDISC, JULIENNE (ON SOME MODELS)
1AUSE & CARE GUIDE (KFP0719*)
1USE & CARE GUIDE (KFP0718*)
2W11569314 Whirlpool Pusher Assembly
3W11551396 Whirlpool Bowl Cover
4W11319163 Whirlpool Bowl
5W11239489 Whirlpool Adapter
6W11239491 Whirlpool Disc Assembly
7W11319164 Whirlpool Blade
8W11319166 Whirlpool Blade
9W11319167 Whirlpool Shredding Disc
