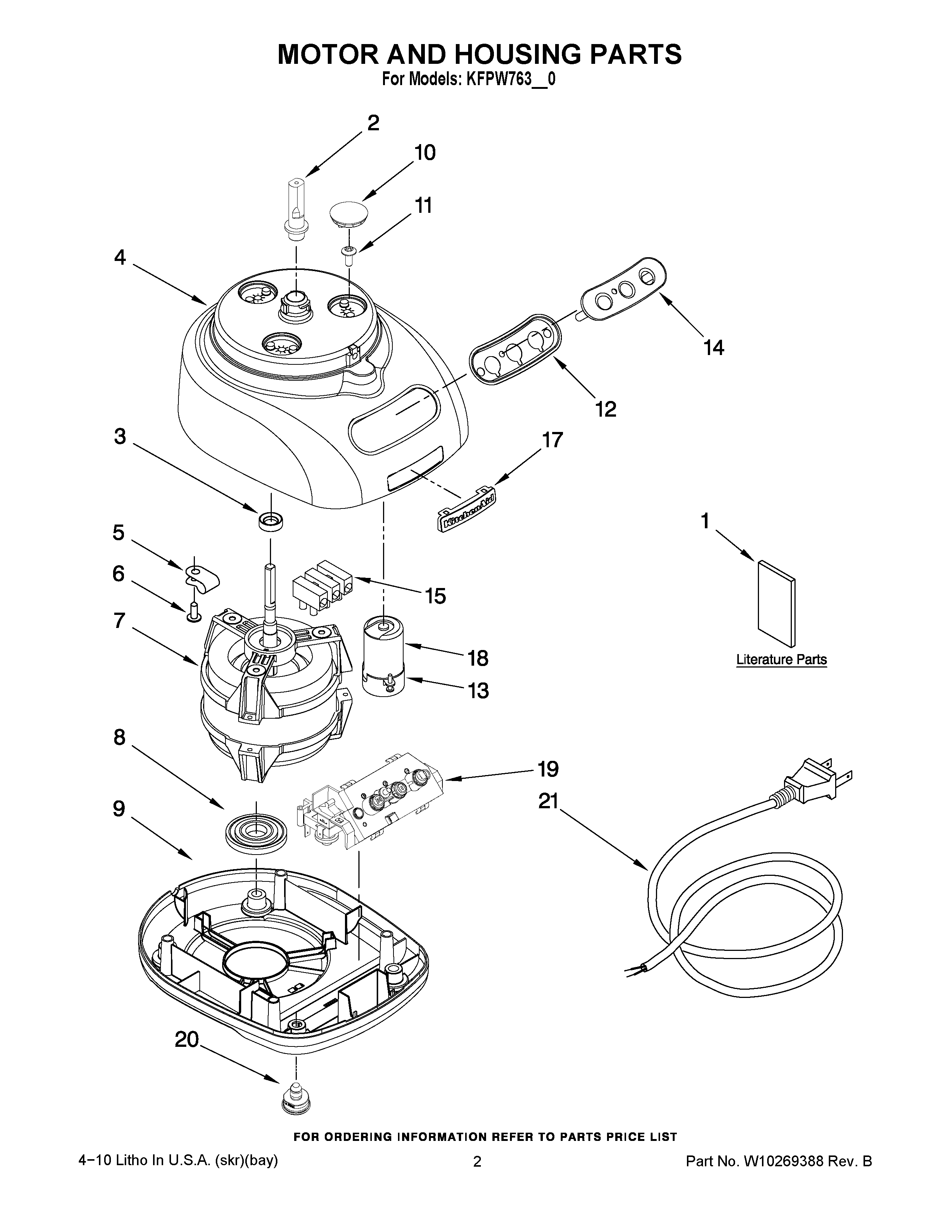

KFPW763OB0 01 – MOTOR AND HOUSING PARTS

Products

Position	Product
1	REPAIR PARTS LIST
1	USE & CARE GUIDE
2	Sleeve, Motor Shaft
3	Seal, Oil
4	Housing, Motor (Onyx Black)
4	HOUSING, MOTOR (COCOA SILVER)
5	2185825 Whirlpool Refrigerator Clamp
6	Screw, Clamp
7	Motor
8	Grommet, Motor
9	BASE, HOUSING (BLACK)
10	COVER, SCREW (DARK TAUPE)
10	Cover, Screw (Black)
11	Screw, Motor Locking
12	Bezel, Switch Panel
13	Clip, Capacitor
14	OVERLAY, SWITCH ASSEMBLY (BLACK)
15	Block, Terminal
17	Nameplate
17	NAMEPLATE (ARCHITECT)
18	Capacitor
19	Relay/Switch Assy
20	Foot (Black)
21	W10451329 Whirlpool Power Cord
