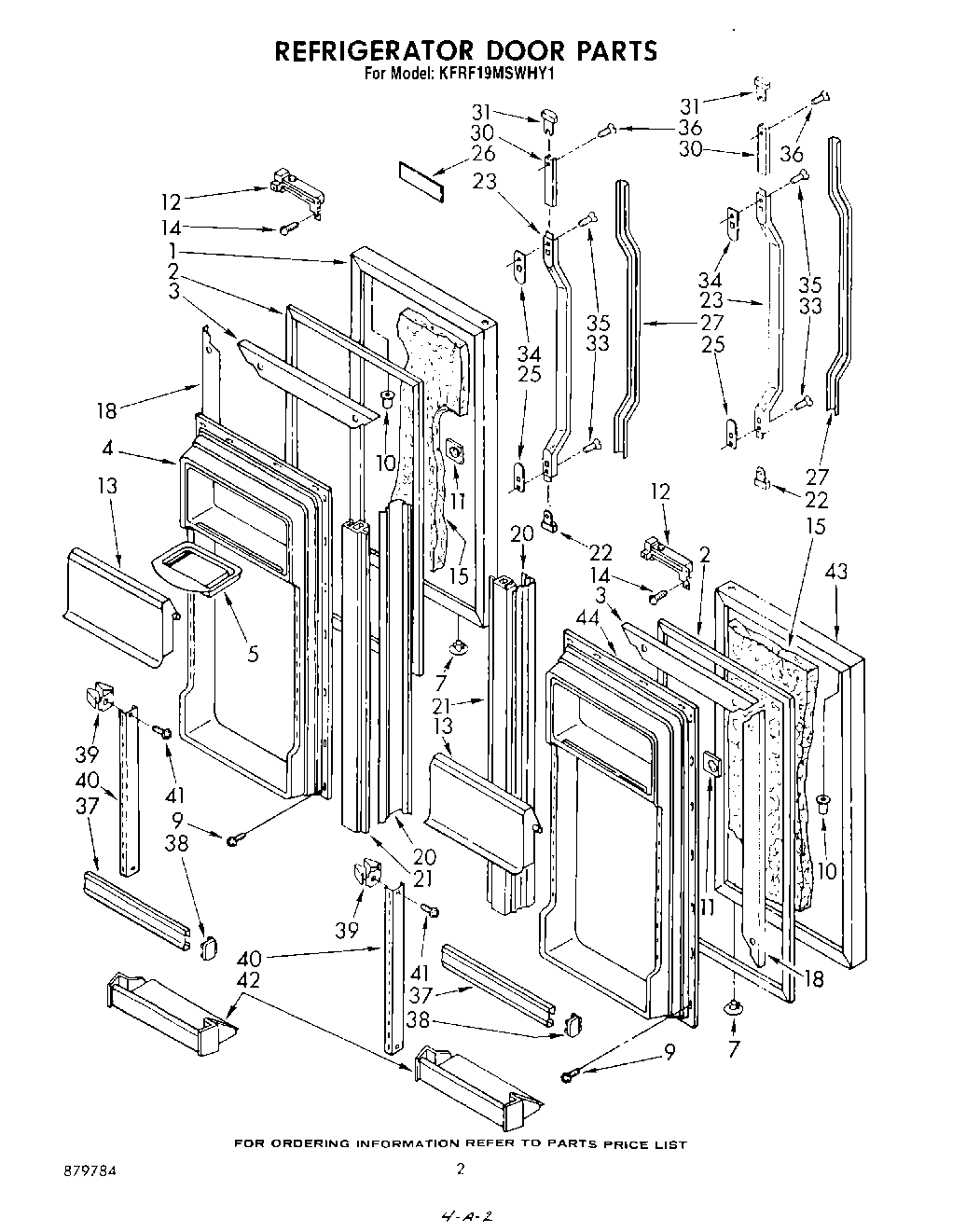

KFRF19MSWHY1 02 – REFRIGERATOR DOOR

Products

Position	Product
1	Door, Refrigerator (R.H.) (Also Order Item 15) (Toast)
1	Door, Refrigerator (R.H.) (Also Order Item 15) (Platinum)
1	Door, Refrigerator (R.H.) (Also Order Item 15) (Almond)
1	Door, Refrigerator (R.H.) (Also Order Item 15) (White)
2	Gasket, Refrigerator Door (2)
3	Retainer Gasket, Top & Bottom (2)
4	Interior Door Panel (R.H.)
7	Hole Plug (2) (Almond)
7	Hole Plug (2)
7	Hole Plug (2) (Platinum)
7	Hole Plug (2) (Toast)
9	SCREW
9	WP489069 Whirlpool Compactor Screw
10	Cap, Hinge Sleeve (2)
11	Screw Anchor (2)
12	Door Closer (2)
13	Door, Butter
14	WP488729 Whirlpool Refrigerator Door Screw
15	WPL 876029
18	Retainer Gasket, Side (2)
20	Retainer, Gasket Mullion (2)
21	Door Gasket, Mullion (2)
22	End Cap
23	Handle
25	Spacer, Handle
26	Insert, Nameplate
27	Insert, Handle
27	Insert, Handle
30	Retainer, Insert
31	End Cap (2)
33	Screw (Repair)
33	WP488920 Whirlpool Refrigerator Screw
34	Spacer, Handle
36	Screw
37	Trim, Door Shelf
38	Retainer, Door Trim (2)
39	Expansion Clip
40	WPL 839430
42	Door Shelf, Cantilever (2)
43	WPL 1107707
43	WPL 1107706
43	WPL 1107705
43	Door, Refrigerator (L.H.) (Also Order Item 15) (
44	WPL 1101512
