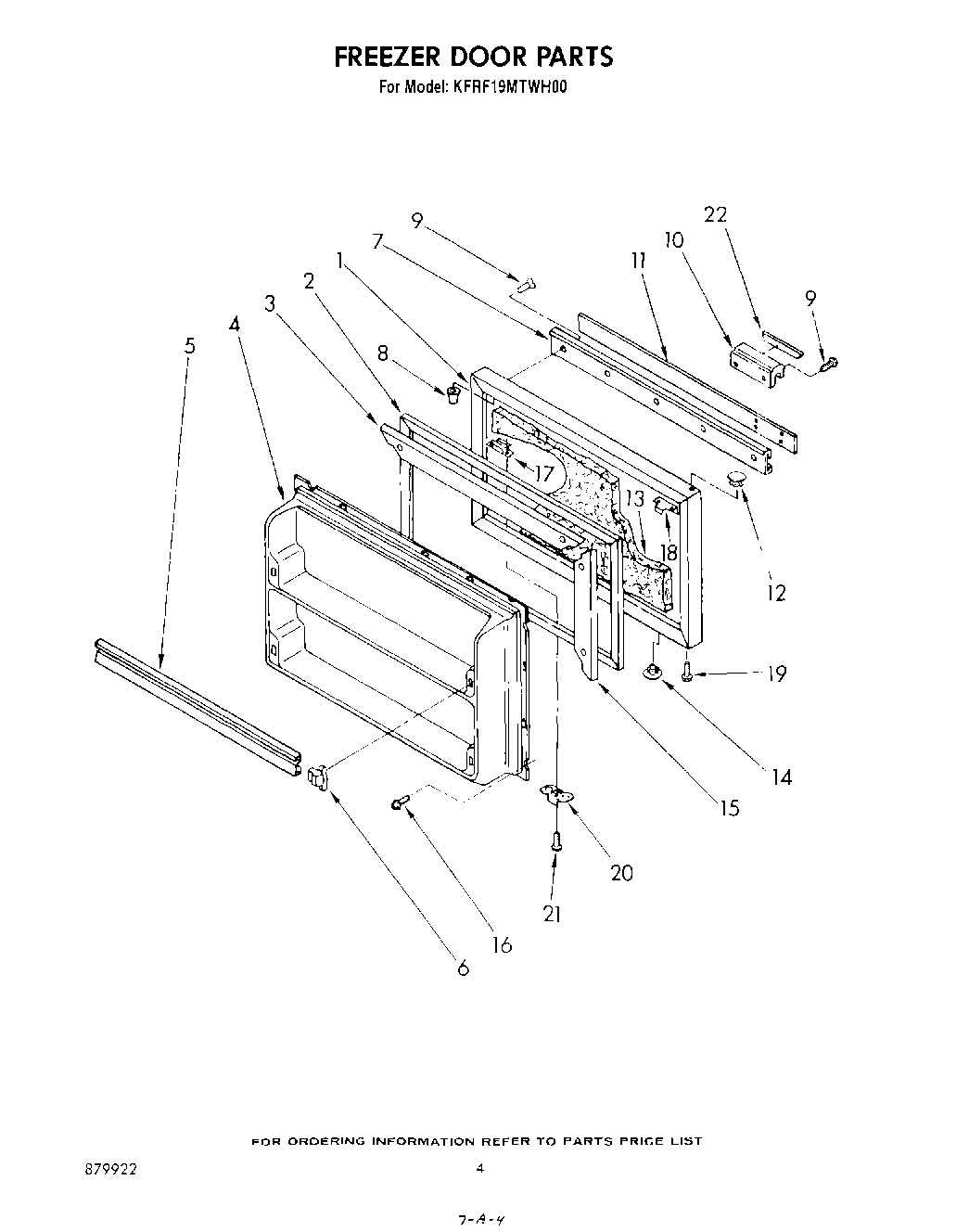

KFRF19MTPL00 03 – FREEZER DOOR

KFRF19MTPL00 03 – FREEZER DOOR

Written by

in

KFRF19MTPL00 03 – FREEZER DOOR

Products

PositionProduct
1Door, Freezer (Also Order Item 13) (Platinum)
1Door, Freezer (Also Order Item 13) (Toast)
1Door, Freezer (Also Order Item 13) (Almond)
1Door, Freezer (Also Order Item 13) (White)
2Gasket, Freezer Door
3Retainer, Gasket Top
4Panel, Interior Door
5Trim, Door Shelf (2)
6Retainer, Door Trim (2)
7Trim, Handle Door
8Cap, Hinge Sleeve (2)
9Screw, 8.18 x 3/4
10Handle, Door
11Insert, Trim Handle
12Hole Plug (Platinum)
12Hole Plug (Toast)
12Hole Plug (Almond)
12WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
13WPL 876029
14Hole Plug (2)
15WPL 986015
16WP489069 Whirlpool Compactor Screw
16SCREW
17W10833053 Whirlpool Refrigerator Plate
18WP939101 Whirlpool Refrigerator Plate
20Bracket, Door Stop
21Screw (Repair)
21WP488921 Whirlpool Refrigerator Screw
22Insert, Handle Door
