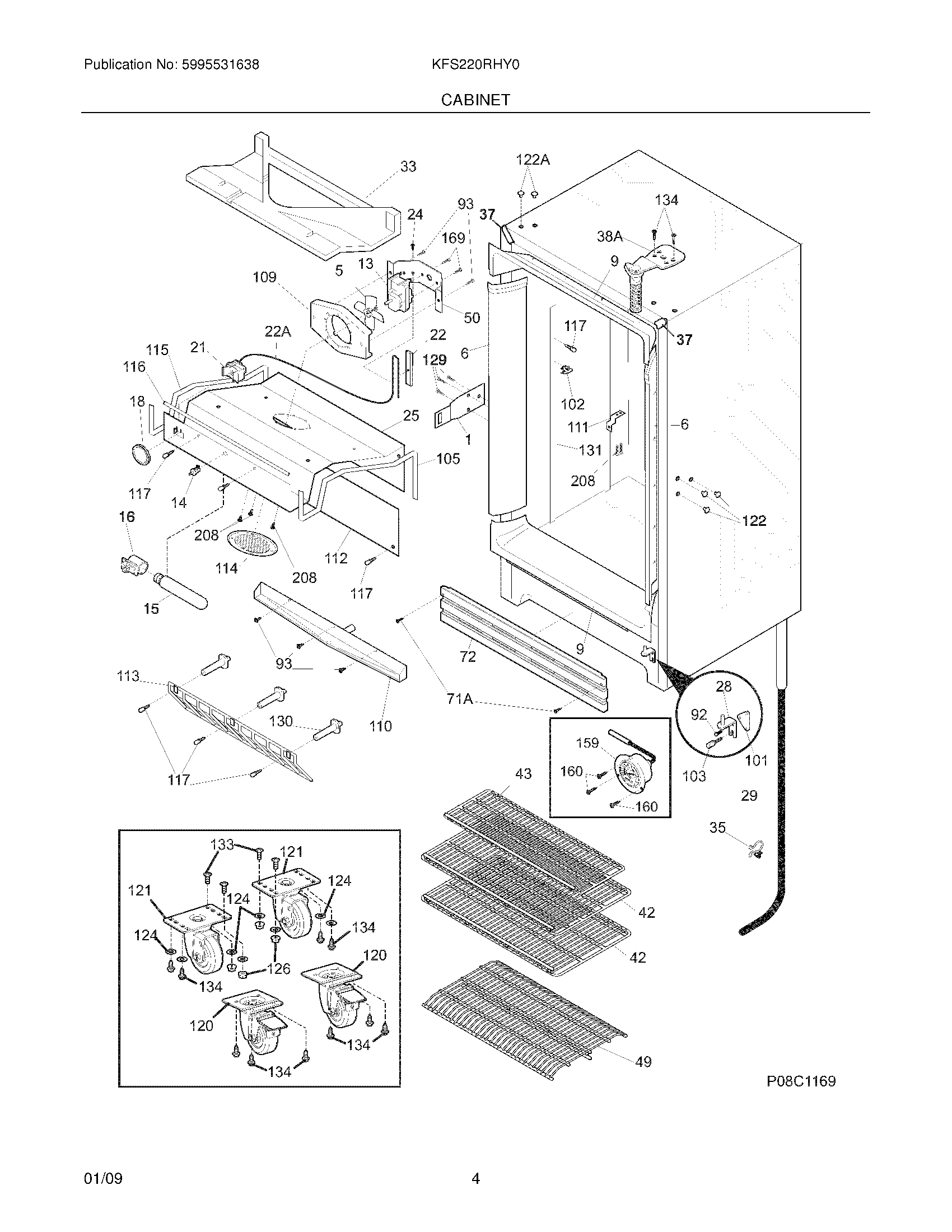

KFS220RHY0 05 – CABINET

KFS220RHY0 05 – CABINET

Written by

in

KFS220RHY0 05 – CABINET

Products

PositionProduct
NIWCI 5303311565
NIWCI 297001708
NIWCI 297211400
NIWCI 297069300
NIWCI 297090800
NIWCI 297086605
1297222500 Frigidaire Refrigerator Lock-Catch
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6297200900 Frigidaire Refrigerator Breaker Kit W/Corne
9297200100 Frigidaire Refrigerator W/Corner Breaker Kit
13EVAP FAN MOTOR – 115V
14297243800 Frigidaire Refrigerator Switch
155304517886 Frigidaire Refrigerator Light
16297139500 Frigidaire Refrigerator Socket
18216591506 Frigidaire Refrigerator Temperature Control Knob
21297216041 Frigidaire Refrigerator Control
22CLAMP, CAP TUBE, COLD CONTROL
22ATUBE
24Screw,type A ,10-24 x 3/8
25WCI 216659103
28WCI 216335600
29WCI 216361901
33WCI 216680901
35216273000 Frigidaire Refrigerator Strap
37WCI 241611305
38A297215900 Frigidaire Top Door Hinge
42WCI 216384002
43WCI 216386202
49WCI 216331802
50WCI 08013207
57WCI 216335500
71AWCI 216395801
72WCI 297138900
92241710601 Frigidaire Refrigerator Screw
93216858001 Frigidaire Refrigerator Screw
101WCI 216335700
102297121900 Frigidaire Shelf Support
103WCI 216336301
105WCI 216361100
109WCI 297014200
110216377000 Frigidaire Refrigerator Drain Trough
111WCI 297141400
111301036 Frigidaire Refrigerator Insert Nut
112WCI 216381300
113WCI 216383602
114WCI 297014300
115WCI 216383700
116WCI 216383800
117WCI 216605500
120WCI 297206600
121WCI 297206500
122215774922 Frigidaire Refrigerator Plug
122240494003 Frigidaire Refrigerator Plug-Button
124WCI 216212600
126WCI 216658601
129WCI 216393301
130297244700 Frigidaire Refrigerator Support
131WCI 297122000
133WCI 216658401
134240578902 Frigidaire Screw Mounting Hinge
1595304506337 Frigidaire Refrigerator Dial
160WCI 297096100
169216912401 Frigidaire Refrigerator Screw
208WCI 216504500
