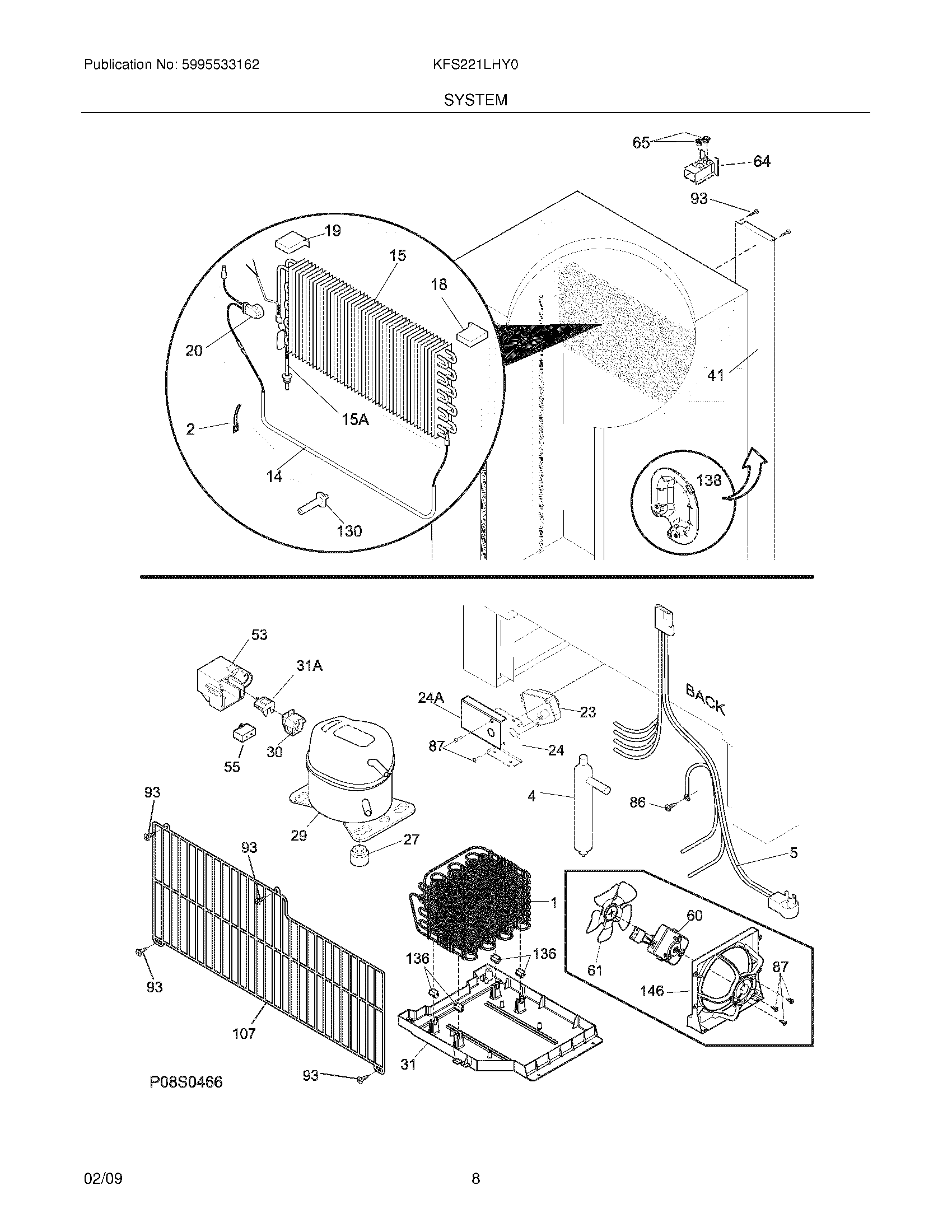

KFS221LHY0 07 – SYSTEM

Products

Position	Product
NI	WCI 297082300
NI	216987800 Frigidaire Harness-Adapter
NI	WCI 240491503
NI	297315800 Frigidaire Refrigerator Clip
NI	297111000 Frigidaire Standoff
NI	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NI	241853202 Frigidaire Refrigerator Screw
NI	297366805 Frigidaire Refrigerator Cord
NI	GROMMET-SPACER
1	297152201 Frigidaire Refrigerator Condenser
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 297170600
14	216730700 Frigidaire Refrigerator Defrost Heater
15	297311300 Frigidaire Freezer Evaporator Assembly
15A	WCI 297219100
18	WCI 297078700
19	WCI 297078800
20	297216600 Frigidaire Refrigerator Defrost Thermostat
23	5304518034 Frigidaire Refrigerator Defrost Timer
24	WCI 216968501
24A	WCI 297207900
27	218513300 Frigidaire Refrigerator Compressor Mount Grommet
29	WCI 216966900
30	216894200 Frigidaire Refrigerator Starter
31	WCI 297165801
31A	216100126 Frigidaire Refrigerator Overload Protector
41	WCI 297070700
53	WCI 216894500
55	297286810 Frigidaire Refrigerator Run Capacitor
60	297279500 Frigidaire Refrigerator Condenser Fan Motor
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
64	WCI 216578800
65	Valve,breather ,door base
86	216036601 Frigidaire Refrigerator Screw
93	216858001 Frigidaire Refrigerator Screw
107	WCI 297225500
130	297244700 Frigidaire Refrigerator Support
136	240405201 Frigidaire Refrigerator Grommet
138	COVER-DRAIN HOSE
146	216337701 Frigidaire Refrigerator Screw
146	WCI 297164000
