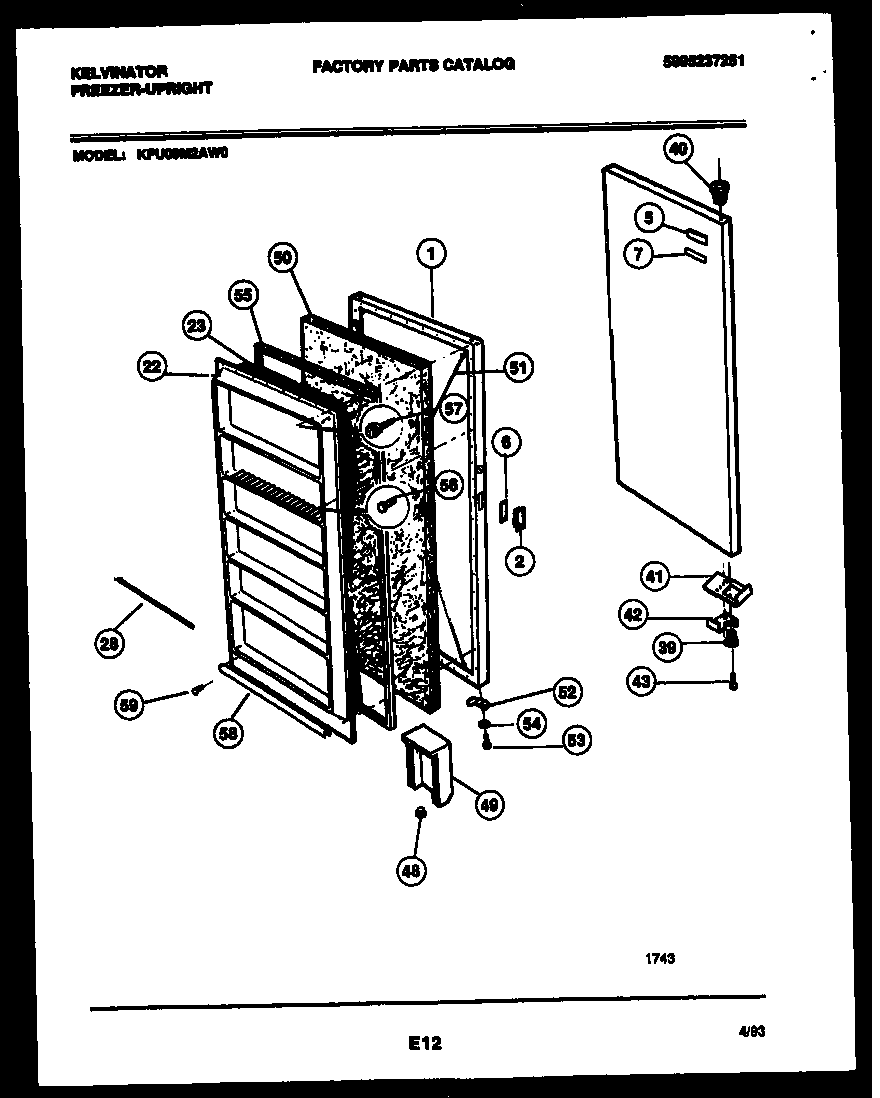

KFU09M2AW0 02 – DOOR PARTS

Products

Position	Product
1	PANEL-OUTER DOOR, WHITE
2	HANDLE
5	WCI 5303298522
6	GASKET, WHITE
7	INSERT
22	WCI 216048404
23	INSULATION (CUT TO SIZE)
28	WCI 216102500
39	297006800 Frigidaire Refrigerator Bearing Hinge
40	WCI 5303297490
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
48	Valve,breather ,door base
49	WCI 5303212700
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WCI 08037981
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
55	WCI 3206236
56	216858001 Frigidaire Refrigerator Screw
57	WCI 216022800
58	WCI 5308016356
59	5303212828 Frigidaire Refrigerator Primary Clip
