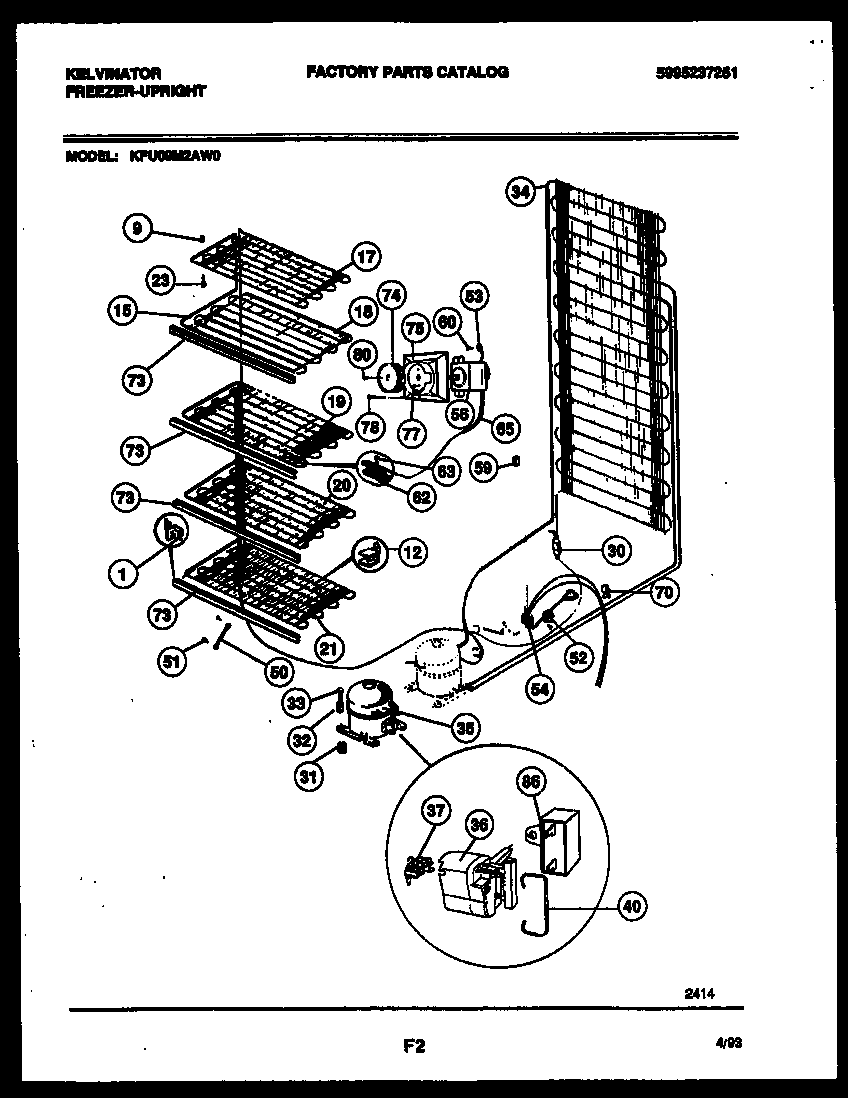

KFU09M2AW0 04 – SYSTEM AND ELECTRICAL PARTS

Products

Position	Product
1	297001600 Frigidaire Shelf Support
1A	297001500 Frigidaire Shelf Support
9	WCI 216109800
12	WCI 09949960
15	WCI 5308010744
17	WCI 216069300
18	WCI 216069400
19	WCI 216069500
21	WCI 216069600
23	WCI 216138900
30	5303305677 Frigidaire Replacement Filter Dryer Filters
31	216498900 Frigidaire Refrigerator Grommet
32	SLEEVE-COMPRESSOR
33	SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
34	WCI 08009370
35	WCI 216120800
36	WCI 216008900
37	WCI 5303206816
40	WCI 216147800
50	WCI 06594651
51	WCI 08037851
52	5304455846 Frigidaire Refrigerator Clamp
53	WIRE-GROUND, TEMP CONTROL
54	WCI 216113400
56	WCI 216150400
59	RETAINER, WIRE, BREAKER
60	216036601 Frigidaire Refrigerator Screw
62	CLAMP, CAP TUBE, COLD CONTROL
63	SCREW, CLAMP, TRUSS HD CR, CONTROL
65	TUBE
70	5303212614 Frigidaire Refrigerator Clip
73	FRONT-SHELF
74	WCI 216008602
75	WCI 5303288184
77	SCREW, COVER CONTROL
78	131420300 Frigidaire Screw
80	WCI 09950853
86	5304464438 Frigidaire Compressor Run Capacitor
