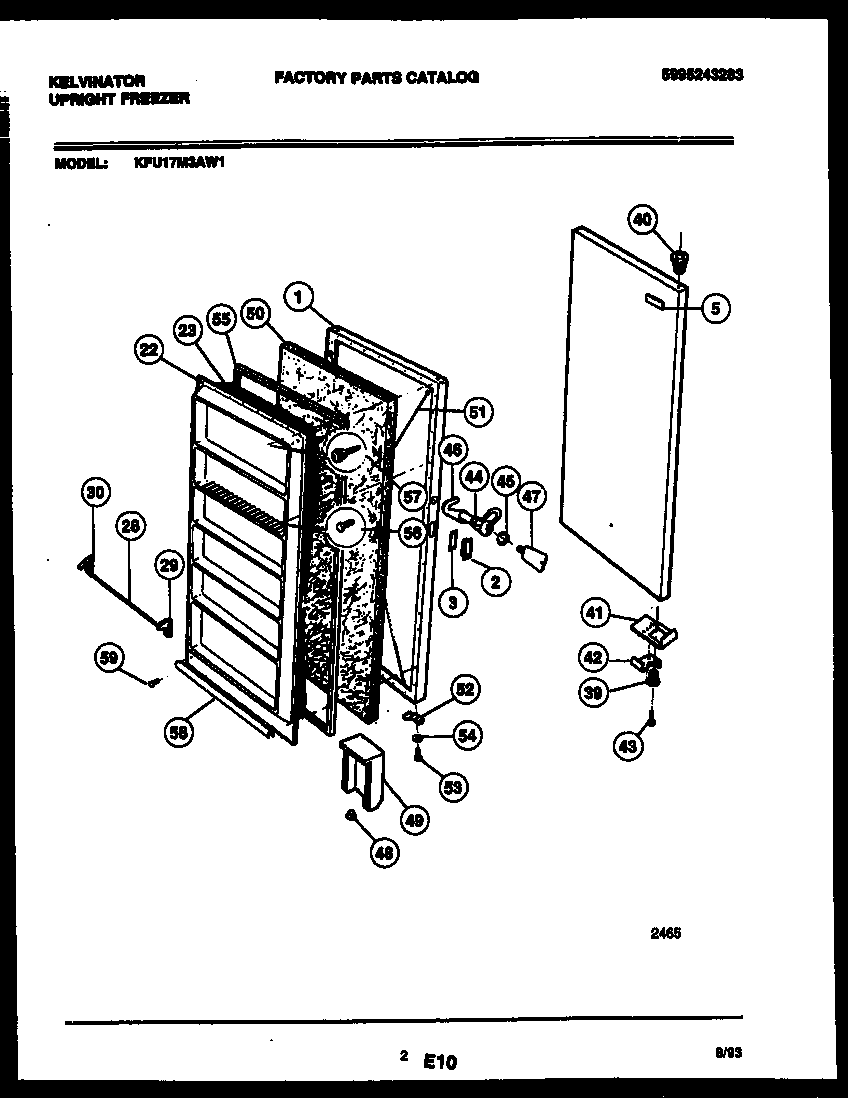

KFU17M3AW1 02 – DOOR PARTS

Products

Position	Product
1	WCI 216011504
2	HANDLE
3	GASKET, WHITE
5	WCI 5303298522
22	WCI 216063511
23	INSULATION (CUT TO SIZE)
28	WCI 216140000
29	WCI 08005524
30	WCI 08005525
39	297006800 Frigidaire Refrigerator Bearing Hinge
40	WCI 5306593364
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5303925107
45	Washer-sealing
46	WCI 216013800
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5303212700
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WCI 08037981
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
55	WCI 3206257
56	216858001 Frigidaire Refrigerator Screw
57	WCI 216022800
58	WCI 5308016356
59	5303212828 Frigidaire Refrigerator Primary Clip
