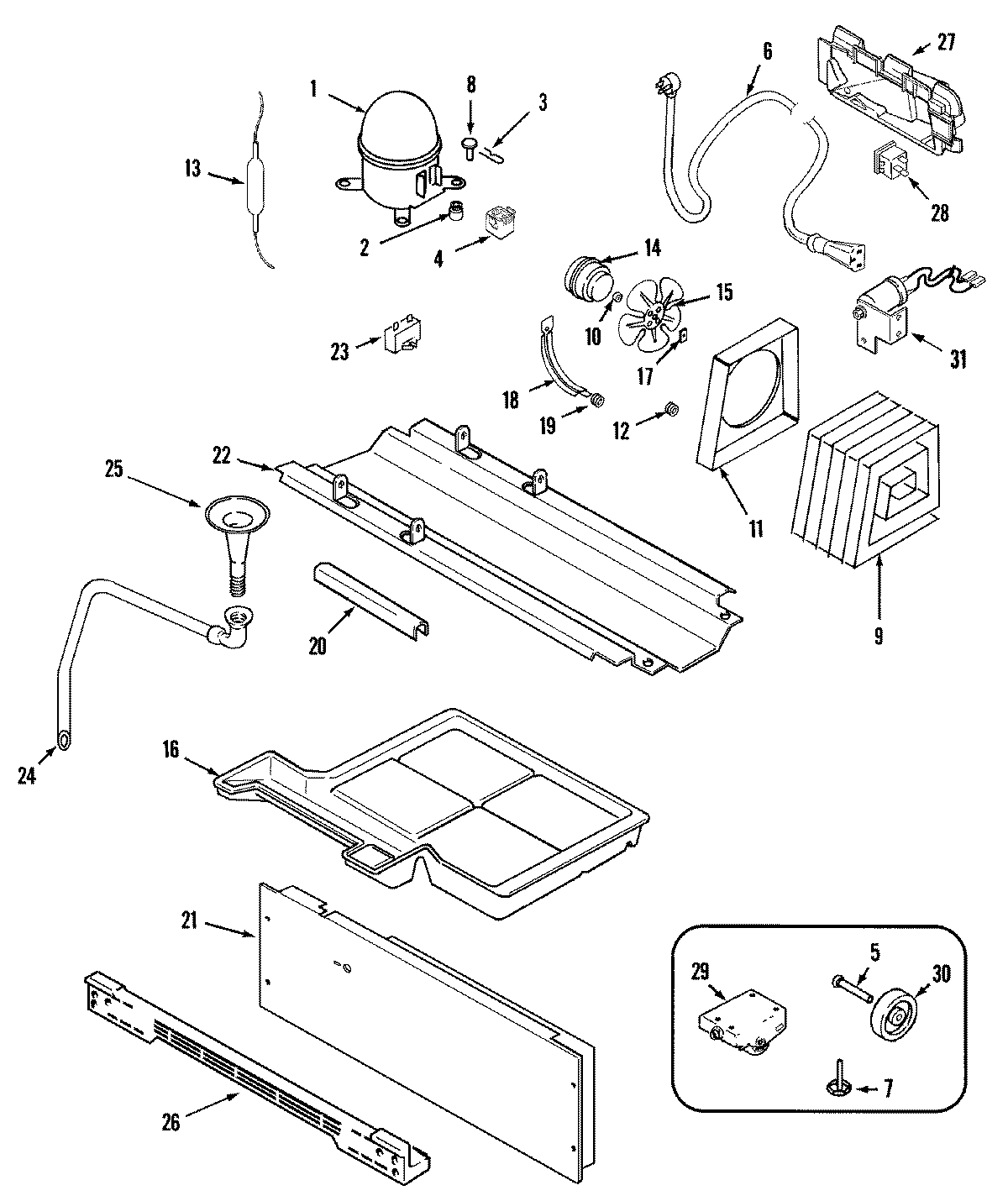

KFU5755 03 – COMPRESSOR (REV 17)
Written by
in
KFU5755 03 – COMPRESSOR (REV 17)
Products
Position
Product
1
MAY 61005803
1
MAY 12001961
1
MAY 61005870
2
WP4387558 Whirlpool Refrigerator Compressor Grommet
3
MAY 61003099
4
MAY 61005620
4
MAY 61005616
5
WP61002104 Whirlpool Refrigerator Pin Wheel
6
MAY 61004874
6
MAY 61006053
7
MAY 69810-1
7
MAY 61002014
8
MAY 52656-2
9
MAY 61003814
10
MAY 61001686
11
MAY 61001941
12
MAY 61002033
13
WPW10143759 Whirlpool Dryer Filter
14
MAY 65275-33
14
MAY 61002084
15
MAY 60683-1
16
MAY 61004095
17
WP486692 Whirlpool Refrigerator Nut
18
MAY 61001414
19
MAY 56933-1
20
MAY 61001974
21
MAY 61003815
21
MAY 65275-5
22
WP67006715 Whirlpool Refrigerator Screw
22
MAY 61005269
23
MAY 61004637
24
MAY 61003133
24
MAY 53516-9
25
MAY 61004751
26
MAY 61004053
26
SCREW
27
MAY 61002984
27
MAY 61004875
28
MAY 61004876
29
WP489478 Whirlpool Refrigerator Screw
29
MAY 61005232
30
WP61003826 Whirlpool Wheel
31
MAY 61005804
31
MAY 65275-50
31
WP489399 Whirlpool Refrigerator Screw
32
MAY 12001550
←
