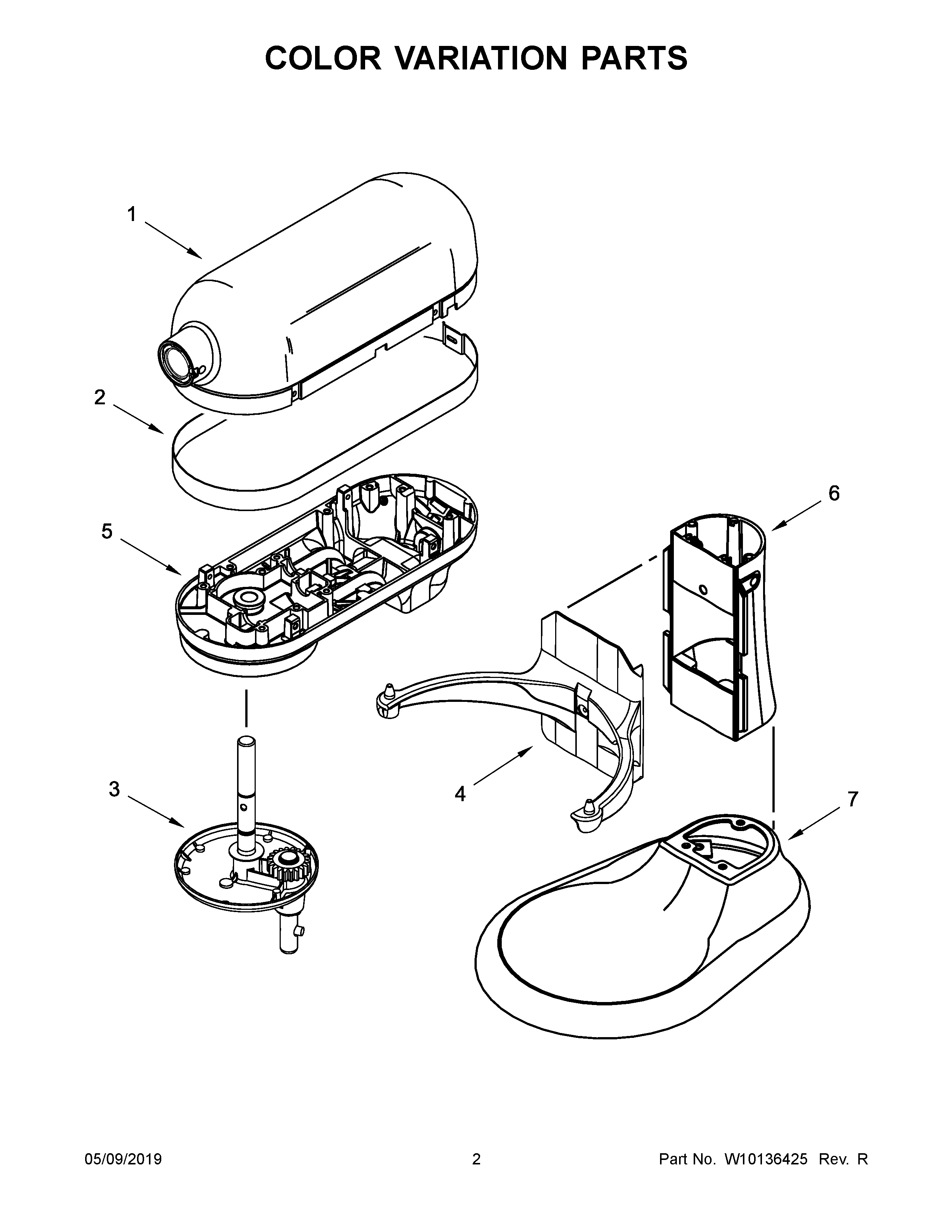

| 1D | 9709571 Whirlpool Housing Assembly |
| 1G | MOTOR HOUSING (COPPER PEARL) |
| 1I | MOTOR HOUSING (LIQUID GRAPHITE) |
| 1J | MOTOR HOUSING (GREEN APPLE) |
| 1P | Motor Housing (Majestic Yellow) |
| 1T | MOTOR HOUSING (CRIMSON RED) |
| 1O | W10114555 Whirlpool Housing |
| 1M | MOTOR HOUSING (BOYSENBERRY) |
| 1L | MOTOR HOUSING (AQUA SKY) |
| 1K | W10726426 Whirlpool Housing |
| 1N | WPW10453625 Whirlpool Housing |
| 1A | 9703532 Whirlpool Housing Assembly |
| 1R | MOTOR HOUSING (BLACK MATTE) |
| 1E | 9703433 Whirlpool Housing |
| 1C | 9705300 Whirlpool Housing Assembly |
| 1H | Motor Housing (Cobalt Blue) |
| 1 | 9703311 Whirlpool Housing Assembly |
| 1Q | MOTOR HOUSING (PISTACHIO) |
| 1F | MOTOR HOUSING (CRYSTAL BLUE) |
| 1S | MOTOR HOUSING (MATTE DRIED ROSE) |
| 1B | 9705296 Whirlpool Housing |
| 2 | W10749681 Whirlpool Trim Band |
| 3F | PLANETARY (CRYSTAL BLUE) |
| 3O | W10114559 Whirlpool Planetary Assembly |
| 3D | WP9709575 Whirlpool Planetary Mixer |
| 3L | W10577733 Whirlpool Planetary Gear |
| 3K | W10726430 Whirlpool Planetary Mixer |
| 3R | W11123171 Whirlpool Planetary Assembly |
| 3M | W10343683 Whirlpool Planetary Gear |
| 3I | WP9707977 Whirlpool Planetary Gear |
| 3P | 9708181 Whirlpool Planetary |
| 3J | W10343681 Whirlpool Planetary Gear |
| 3A | WP9708174 Whirlpool Planetary |
| 3C | WP9708180 Whirlpool Planetary Gear |
| 3H | Planetary (Cobalt Blue) |
| 3B | WP9708176 Whirlpool Planetary Mixer |
| 3E | WP9708175 Whirlpool Planetary Gear |
| 3 | WP9708172 Whirlpool Planetary Assembly |
| 3T | WPL W11236439 |
| 3S | WPL W11236432 |
| 3Q | 9708190 Whirlpool Planetary |
| 3G | 9709156 Whirlpool Planetary Assembly |
| 3N | WPW10453629 Whirlpool Planetary Mixer |
| 4 | Bowl Support and Pins (White) |
| 4O | WPL W10808330 |
| 4T | WPL W11234588 |
| 4S | WPL W11234576 |
| 4R | WPL W11123133 |
| 4K | BOWL SUPPORT AND PINS (ICE) |
| 4E | Bowl Support & Pin (Metallic Chrome) |
| 4M | WPL W10819157 |
| 4P | WPL W10819160 |
| 4C | Bowl Support and Pins (Empire Red) |
| 4B | Bowl Support and Pins (Onyx Black) |
| 4Q | WPL W10902058 |
| 4N | WPL W10808331 |
| 4L | W10808334 Whirlpool Support |
| 4D | Bowl Support & Pin (Silver) |
| 4A | 9708853 Whirlpool Support Assembly |
| 4F | WPL W10562418 |
| 4G | WPL W10625482 |
| 4H | WPL W10672071 |
| 4I | WPL W10707409 |
| 4J | WPL W10726831 |
| 5N | WPW10453632 Whirlpool Gearcase |
| 5Q | WPL 9708097 |
| 5S | WPL W11236430 |
| 5T | WPL W11236437 |
| 5H | 9709159 Whirlpool Gearcase Assembly |
| 5G | W10562412 Whirlpool Gearcase |
| 5C | W10343980 Whirlpool Gearcase Assembly |
| 5J | W10513724 Whirlpool Gearcase Assembly |
| 5M | W10577750 Whirlpool Gearcase |
| 5 | WP9706047 Whirlpool Gearcase |
| 5O | WPL W10114562 |
| 5E | 9709578 Whirlpool Gearcase |
| 5L | W10726433 Whirlpool Gearcase |
| 5R | GEARCASE |
| 5I | Lower Gearcase (Cobalt Blue) |
| 5P | Lower Gearcase (Majestic Yellow) |
| 5K | LOWER GEARCASE (GREEN APPLE) |
| 5A | 9706301 Whirlpool Gearcase |
| 5F | Lower Gearcase (Metallic Chrome) |
| 5D | 9706331 Whirlpool Gearcase |
| 5B | 9706311 Whirlpool Gearcase |
| 6H | 9705384 Whirlpool Column |
| 6F | WPL W10562421 |
| 6G | WPL 9709166 |
| 6B | 9705320 Whirlpool Column |
| 6I | WPL W10513737 |
| 6T | WPL W11234597 |
| 6E | 9703349 Whirlpool Column |
| 6 | 9703673 Whirlpool Column |
| 6M | WPL W10344074 |
| 6O | WPL W10114569 |
| 6P | WPL 9705325 |
| 6J | WPL W10344072 |
| 6Q | COLUMN AND PINS (PISTACHIO) |
| 6C | 9705324 Whirlpool Column Assembly |
| 6R | WPL W11123140 |
| 6K | W10726438 Whirlpool Column Assembly |
| 6S | COLUMN AND PINS (MATTE DRIED ROSE) |
| 6L | WPL W10577769 |
| 6N | WPW10453639 Whirlpool Column Assembly |
| 6D | WPL 9709585 |
| 6A | COLUMN-Imperial Black |
| 7C | 9705348 Whirlpool Base |
| 7A | Base And Foot Assembly (Imperial Black) |
| 7E | 9703346 Whirlpool Base |
| 7B | 9705344 Whirlpool Base |
| 7 | 9703690 Whirlpool Base |
| 7D | 9709588 Whirlpool Base |
| 7F | WPL W1056242 |
