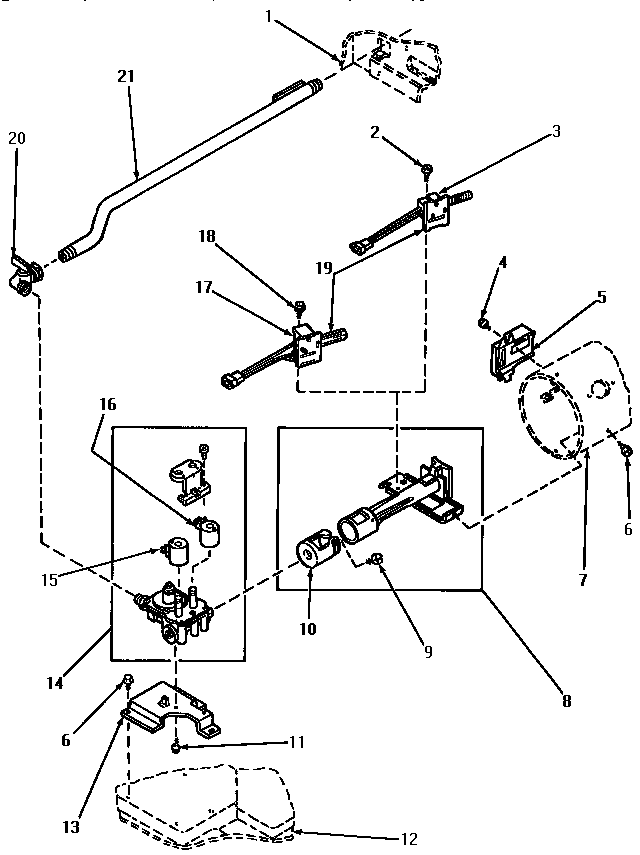

KG5519 04 – GAS VALVE, IGNITER & GAS CONVERSION KITS

Written by

Products

Position	Product
4	WP3177991 Whirlpool Screw
5	MAY Y56231
6	MAY 56264
8	MAY Y56234
9	MAY 51356
10	MAY 53007
11	MAY 56124
13	MAY 58912
14	58804P Speed Queen Gas Valve Assembly
15	MAY 58804A
16	MAY 58804B
17	SEE NOTE GROUND WIRE, GREEN
18	MAY 56693
19	MAY Y61076
20	MAY Y56229
21	MAY 58911
