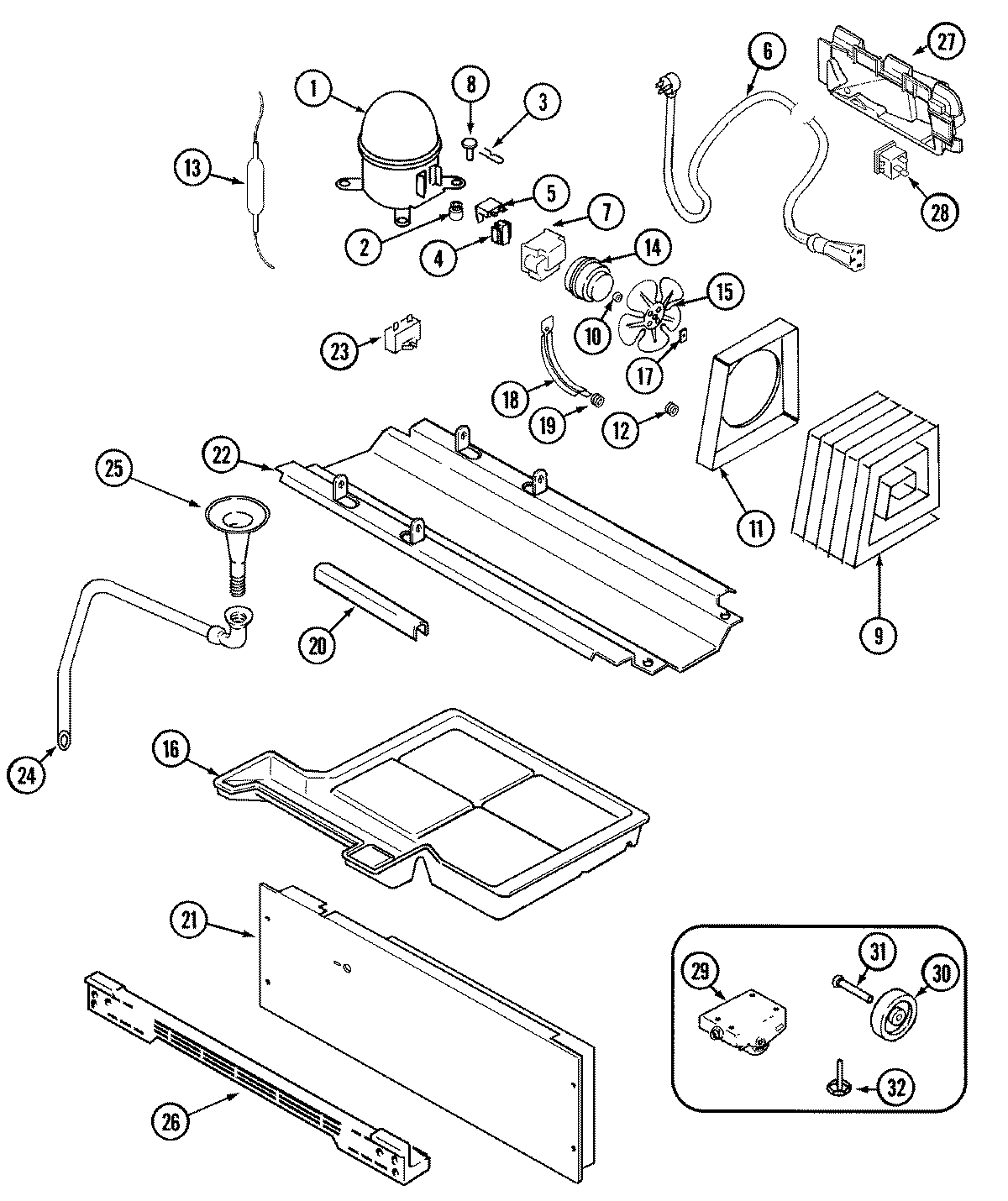

KG57U95SKD 01 – COMPRESSOR (REV 10)

Products

Position	Product
1	MAY 12001726
1	MAY 61004873
2	WP4387558 Whirlpool Refrigerator Compressor Grommet
3	MAY 61003099
4	MAY 61001832
5	MAY 61004872
6	MAY 61004874
7	WP61002138 Whirlpool Refrigerator Terminal Cover
8	MAY 52656-2
9	MAY 61004378
9	MAY 61005452
10	MAY 61001686
11	MAY 61001941
12	MAY 61002033
13	WPW10143759 Whirlpool Dryer Filter
14	MAY 65275-33
14	MAY 61002084
15	MAY 60683-1
16	MAY 61004095
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 61001414
19	GROMMET, BRACKET
20	MAY 61004584
21	MAY 65275-50
21	MAY 61004953
22	MAY 61005269
22	WP67006715 Whirlpool Refrigerator Screw
23	MAY 61004637
24	MAY 53516-9
24	MAY 61003133
25	MAY 61004751
26	SCREW
26	MAY 61004055
27	MAY 61004485
27	MAY 61004875
28	MAY 61004876
29	MAY 61005232
29	WP489478 Whirlpool Refrigerator Screw
30	WP61003826 Whirlpool Wheel
31	WP61002104 Whirlpool Refrigerator Pin Wheel
32	MAY 61002014
32	MAY 69810-1
33	MAY 12001549
