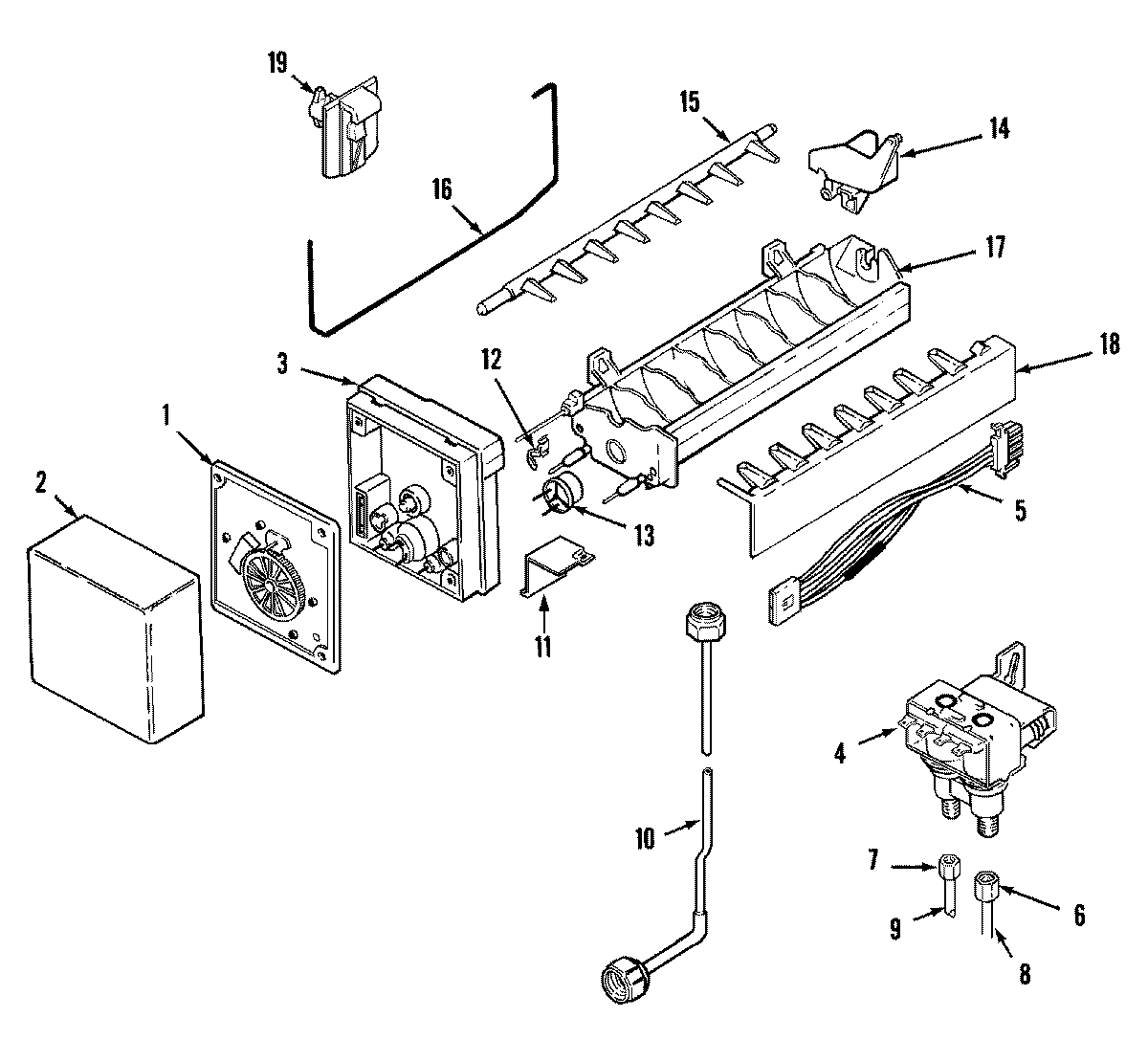

KG66U920 10 – ICE MAKER

Products

Position	Product
1	WP489478 Whirlpool Refrigerator Screw
1	MAY 61001014
2	MAY 61001982
2	MAY 61004608
3	WP2195914 Whirlpool Refrigerator Ice Maker Housing
3	SCREW
4	MAY 61004413
4	MAY 61002819
5	MAY 61005872
6	MAY 69583-2
7	WP627018 Whirlpool Refrigerator Nut
8	SEE NOTE GROUND WIRE, GREEN
9	MAY 67579-26
10	MAY 61001858
11	BRACKET, MODULE & HEATER
11	MAY 95108-1
12	WP2315522 Whirlpool Refrigerator Clip
13	WP627985 Whirlpool Icemaker Cycling Thermostat
13	MAY 95093-1
14	WP628356 Whirlpool Refrigerator Fill Cup
15	WP627843 Whirlpool Refrigerator Ejector Arm
16	MAY 61005657
17	MAY Y06100047
18	WP2182124 Whirlpool Refrigerator Stripper Arm
19	WP61005028 Whirlpool Refrigerator Support
