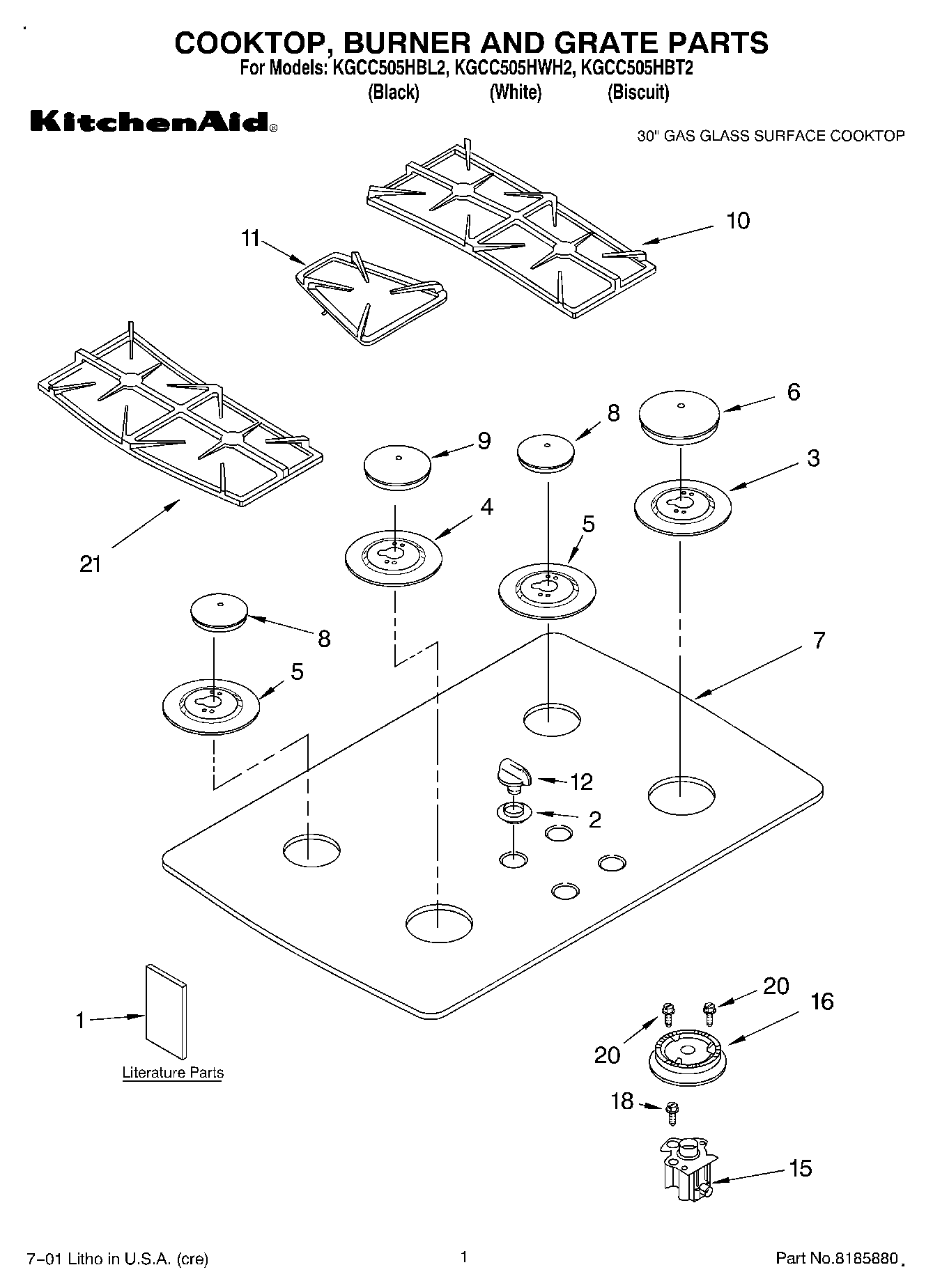

KGCC505HWH2 01 – SECTION

Products

PositionProduct
1Wiring Diagram
1Safe Cooking Tips
1Literature Parts (Installation Instructions)
1LP Conversion Instructions
1Literature Parts (Use & Care Guide)
2Grommet, Glass (Biscuit)
2WP3180081 Whirlpool Grommet
2W10854242 Whirlpool Grommet
3Bezel, Burner (Mouse Gray) (6K RF-LR)
3(Bezel, Burner (Black)) (6K RF-LR)
4Bezel, Burner (Mouse Gray) (14K LF)
4(Bezel, Burner (Black)) (14K LF)
5WPL 9753602GS
5Bezel, Bu
6Cap, (RF) (LR) (White)
6Cap, (RF) (LR) (Biscuit)
6Cap, (RF) (LR) (Black)
7Cooktop, Glass (Honeycomb)
7Cooktop, Glass (White)
7Cooktop, Glass (Black)
8Cap, (RR) (White)
8Cap, (RR) (Biscuit)
8Cap, (RR) (Black)
9Cap, (LF) (Black)
9Cap, (LF) (Biscuit)
9Cap, (LF) (White)
10WPL 3193018
10WPL 3193017
10WPL 3193016
11Grate, Filler (Mouse Gray)
11Grate, Filler (Black)
11Grate, Filler (Moleskin)
12WPL 3191923
12WPL 3191925
12WP3191922 Whirlpool Control Knob
15Orifice Holder (Turbi)
15Holder, Orifice (Includes 13 & 14) (RF 6K)
15814513 Whirlpool Top Burner
15Holder, Orifice (Includes 13 & 14) (LF 12K)
16Burner Head (Turbi)
16WP4455979 Whirlpool Range Small Burner Head
16WP4455981 Whirlpool Burner Head
18WP4449809 Whirlpool Screw
20WP3368921 Whirlpool Screw
21Grate, Burner LH (Moleskin)
21Grate, Burner LH (Black)
21Grate, Burner LH (Mouse Gray)
