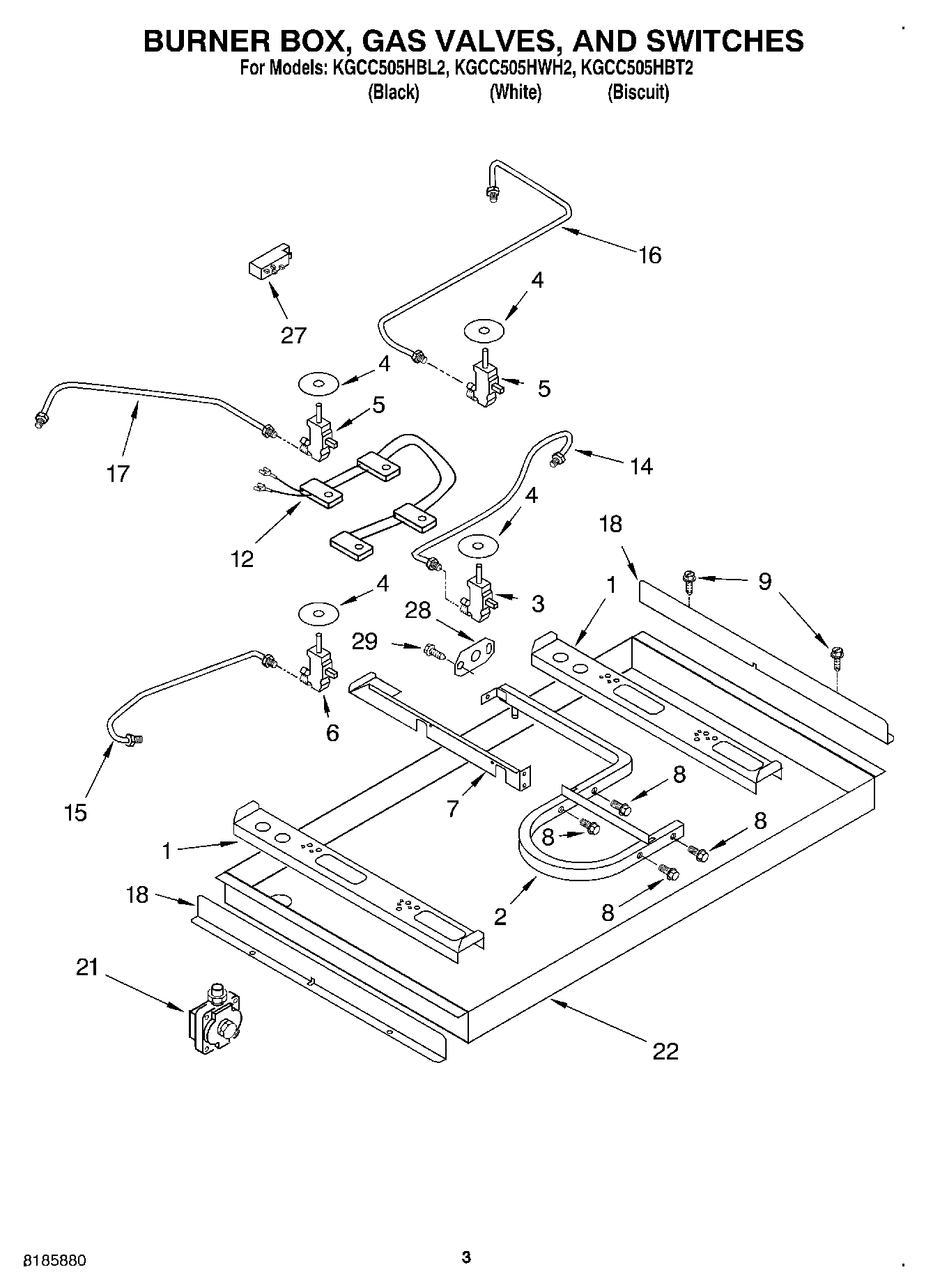

KGCC505HWH2 02 – SECTION

Products

PositionProduct
1W10203756 Whirlpool Support
2Pipe, Manifold
3Valve, Burner (Small (1))
4WP3188425 Whirlpool Seal Switch
5Valve, Burner (Large (3))
6Valve, Burner (Silver)
7Rail, Center
8Bolt (Gas Valve)
12WP3191334 Whirlpool Wire Harness
143191324 Whirlpool Oven Gas Tubing
15Tubing, Burner (LF)
16Tubing, Burner (RR)
17Tubing, Gas Burner (LR)
183191462 Whirlpool Oven Heat Shield
21Regulator, Pressure
22Burner Box
27WPW10110491 Whirlpool Spark Module
283192491 Whirlpool Support Bracket
2915“
29Hardware, Mounting
298186533 Whirlpool Hardware
29Nut, Tinnerman (2)
29W10491985 Whirlpool Screw
29W10392007 Whirlpool Power Cord
294173634 Whirlpool Bushing
29WP3177991 Whirlpool Screw
2928“
29WP3192741 Whirlpool LP Conversion Kit
