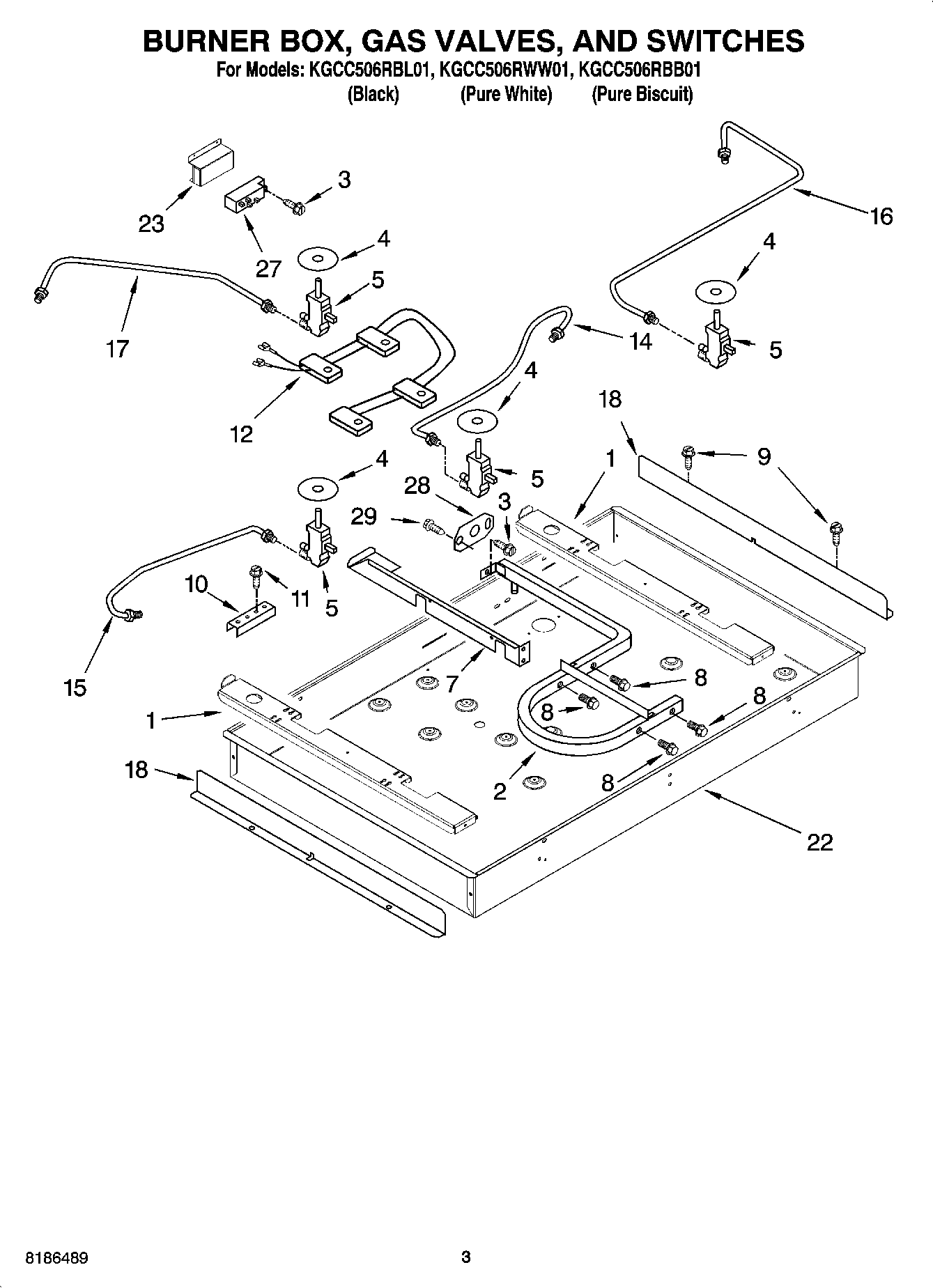

KGCC506RBB01 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

Products

Position	Product
	WP3192741 Whirlpool LP Conversion Kit
	Miscellaneous
	FOLLOWING PARTS NOT ILLUSTRATED
	Seal, Foam-Cooktop
	Hardware Kit (Mounting)
	4456626 Whirlpool Wire
	WIRING HARNESS PARTS
	WP8286320 Whirlpool Spud Orifice
	4456627 Whirlpool Wire Harness
	4173634 Whirlpool Bushing
	8186533 Whirlpool Hardware
	Nut, Tinnerman (2)
	W10392007 Whirlpool Power Cord
	WP3177991 Whirlpool Screw
1	8285796 Whirlpool Support Assembly
2	Pipe, Manifold
3	WP12990527 Whirlpool Microwave Screw
4	WP3188425 Whirlpool Seal Switch
5	8286561 Whirlpool Oven Burner Valve
5	Valve, Gas Burner (Yellow)
5	Valve, Gas Burner (White)
5	WP4456817 Whirlpool Burner Valve
7	Rail, Center
8	WP3186217 Whirlpool Screw
11	WP3400093 Whirlpool Screw
12	WP4456905 Whirlpool Wire Harness
14	8285793 Whirlpool Gas Tubing
15	8285794 Whirlpool Oven Gas Tubing
16	8285792 Whirlpool Oven Gas Tubing
17	8285795 Whirlpool Oven Gas Tubing
18	3191462 Whirlpool Oven Heat Shield
22	Burner Box
23	8285788 Whirlpool Oven Heat Shield
27	WPW10110491 Whirlpool Spark Module
28	3192491 Whirlpool Support Bracket
29	W10491985 Whirlpool Screw
