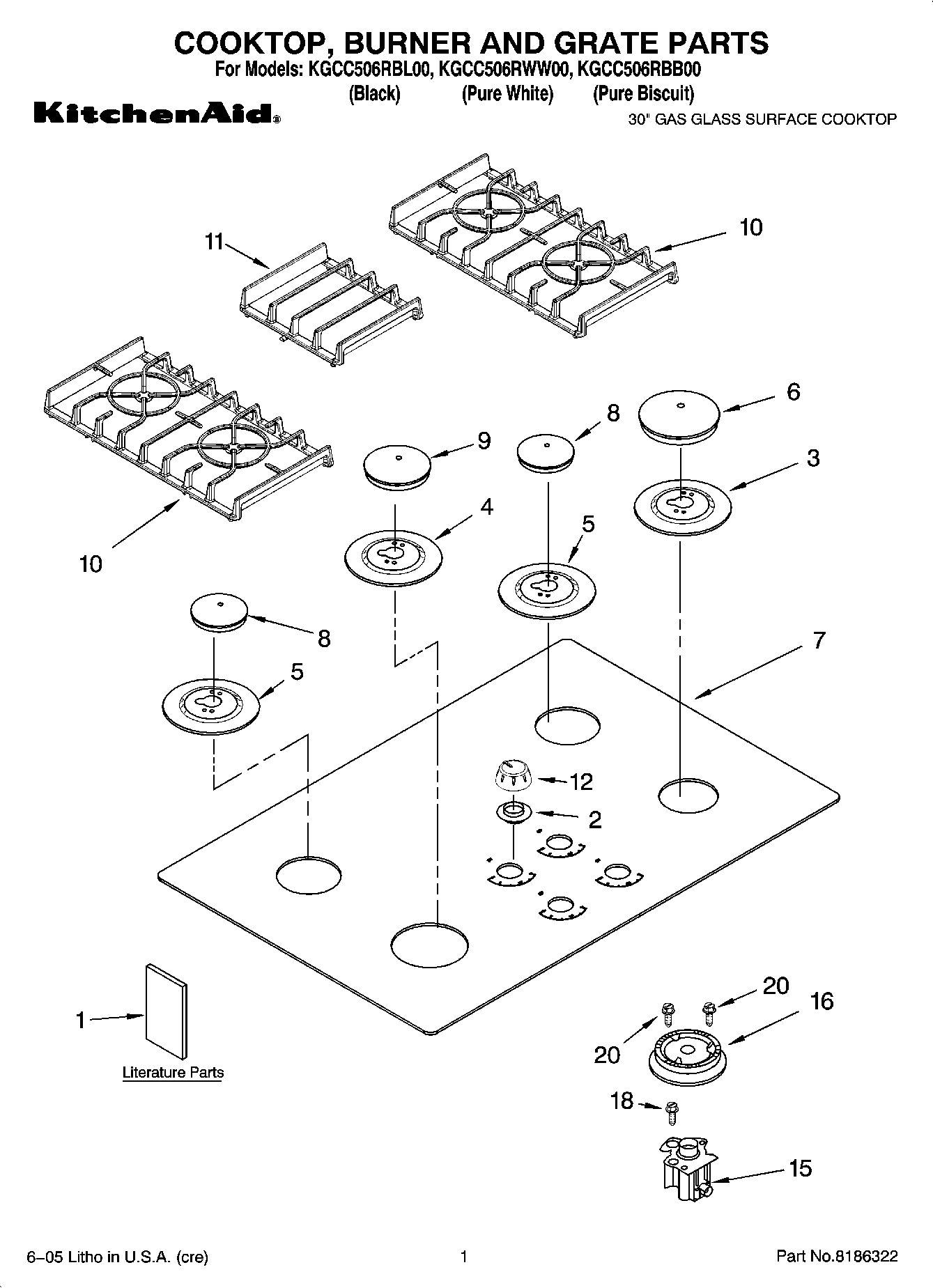

KGCC506RWW00 01 – COOKTOP, BURNER AND GRATE PARTS

KGCC506RWW00 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KGCC506RWW00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Wiring Diagram
1Installation Instructions
1LP Conversion Instructions
1Safe Cooking Tips (French)
1Use & Care Guide
2Grommet, Glass (Biscuit)
2WP3180081 Whirlpool Grommet
2W10854242 Whirlpool Grommet
3Bezel, Cooktop (RR) (Center) (Moleskin)
3Bezel, Cooktop (RR) (Center) (Black)
39753601CG Whirlpool Bezel
48285779CG Whirlpool Bezel
48285779BL Whirlpool Bezel Assembly
4Bezel, Cooktop (LF) (Moleskin)
5Bezel, Cooktop (RF) (LR) (Moleskin)
59753602BL Whirlpool Bezel
5WPL 9753602CG
6WP8286153CB Whirlpool Burner Cap
6Cap, (RF) (LR) (Moleskin)
6WP8286153CG Whirlpool Burner Cap
7W10564558 Whirlpool Cooktop
7Cooktop (White)
78186526 Whirlpool Oven Cooktop
8WP8286155CG Whirlpool Burner Cap
8WP8286155CB Whirlpool Burner Cap
88286155MS Whirlpool Burner Cap
9WP8286156CB Whirlpool Cooktop Burner Cap
9Cap, (LF) (Moleskin)
98286156CG Whirlpool Burner Cap
10Grate, Burner (Moleskin)
10W11242860 Whirlpool Burner Grate
10W11502175 Whirlpool Burner Grate
11W11242858 Whirlpool Burner Grate
11W11242862 Whirlpool Burner Grate
11Grate,
12WP8286094BL Whirlpool Knob
128286094BT Whirlpool Knob
128286094WH Whirlpool Knob Assembly
15WPW10128448 Whirlpool Igniter and Orifice Holder
15WPW10128451 Whirlpool Orifice Holder
15WP8286177 Whirlpool Orifice Holder
15WPW10128450 Whirlpool Orifice Holder
16WPW10406878 Whirlpool Burner Base (16K)
16WPW10406243 Whirlpool Burner Head Auxiliary 6K
16WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
18WP4449809 Whirlpool Screw
20WP3368921 Whirlpool Screw
