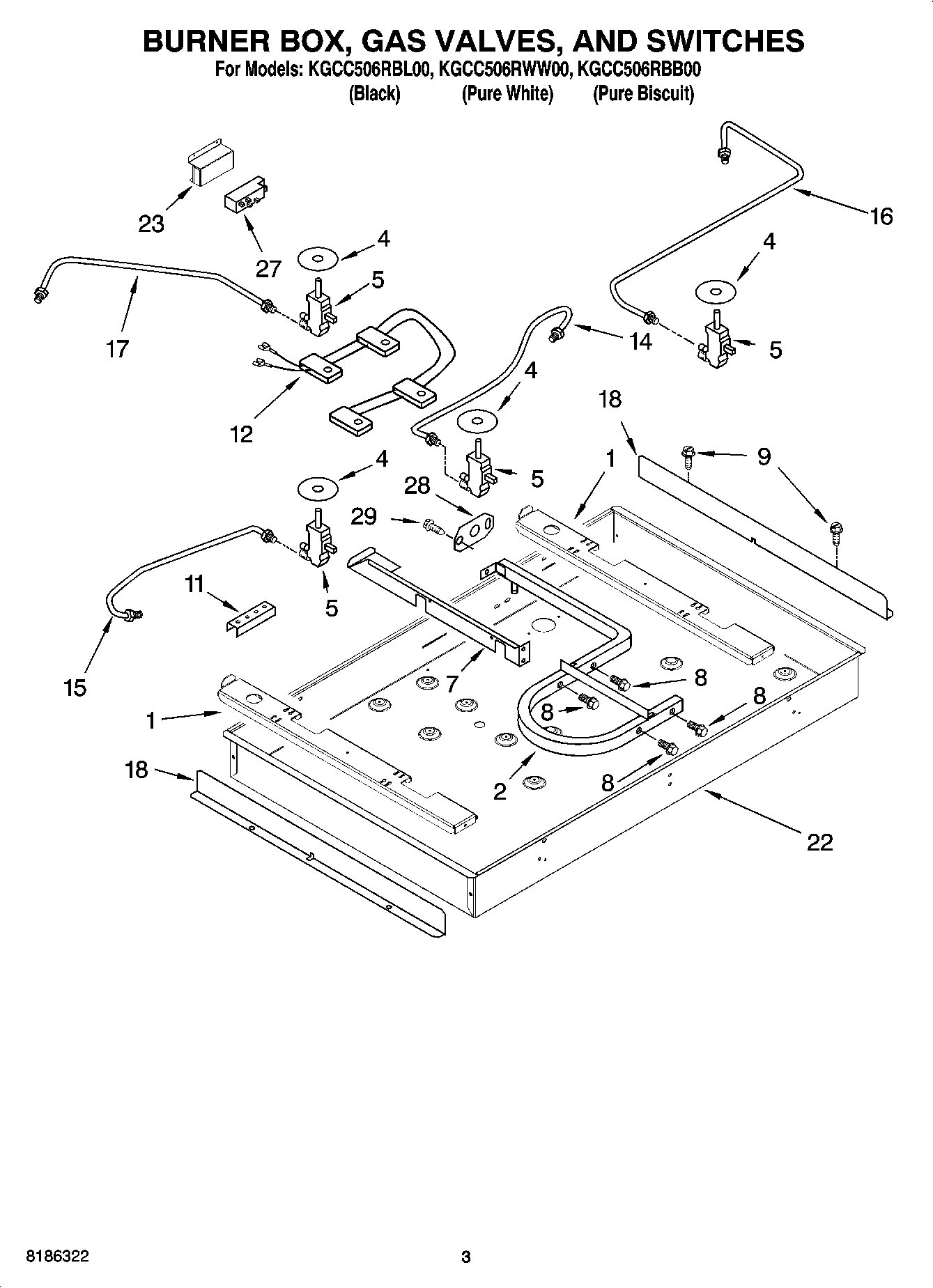

KGCC506RWW00 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

Products

Position	Product
	WP3192741 Whirlpool LP Conversion Kit
	Miscellaneous
	FOLLOWING PARTS NOT ILLUSTRATED
	Seal, Foam-Cooktop
	Hardware Kit (Mounting)
	4456626 Whirlpool Wire
	WIRING HARNESS PARTS
	4456627 Whirlpool Wire Harness
	WP3177991 Whirlpool Screw
	4173634 Whirlpool Bushing
	W10392007 Whirlpool Power Cord
	Nut, Tinnerman (2)
	8186533 Whirlpool Hardware
1	8285796 Whirlpool Support Assembly
2	9759145 Whirlpool Oven Support Bracket
2	Pipe, Manifold
4	WP3188425 Whirlpool Seal Switch
5	Valve, Gas Burner (White)
5	Valve, Gas Burner (Yellow)
5	8286561 Whirlpool Oven Burner Valve
5	WP4456817 Whirlpool Burner Valve
7	Rail, Center
8	WP3186217 Whirlpool Screw
11	WP3400093 Whirlpool Screw
12	WP4456905 Whirlpool Wire Harness
14	8285793 Whirlpool Gas Tubing
15	8285794 Whirlpool Oven Gas Tubing
16	8285792 Whirlpool Oven Gas Tubing
17	8285795 Whirlpool Oven Gas Tubing
18	3191462 Whirlpool Oven Heat Shield
22	WP3196557 Whirlpool Screw
22	Burner Box
23	8285788 Whirlpool Oven Heat Shield
27	4455837 Whirlpool Oven Mounting Bracket
27	WPW10110491 Whirlpool Spark Module
27	WP12990527 Whirlpool Microwave Screw
28	3192491 Whirlpool Support Bracket
29	W10491985 Whirlpool Screw
