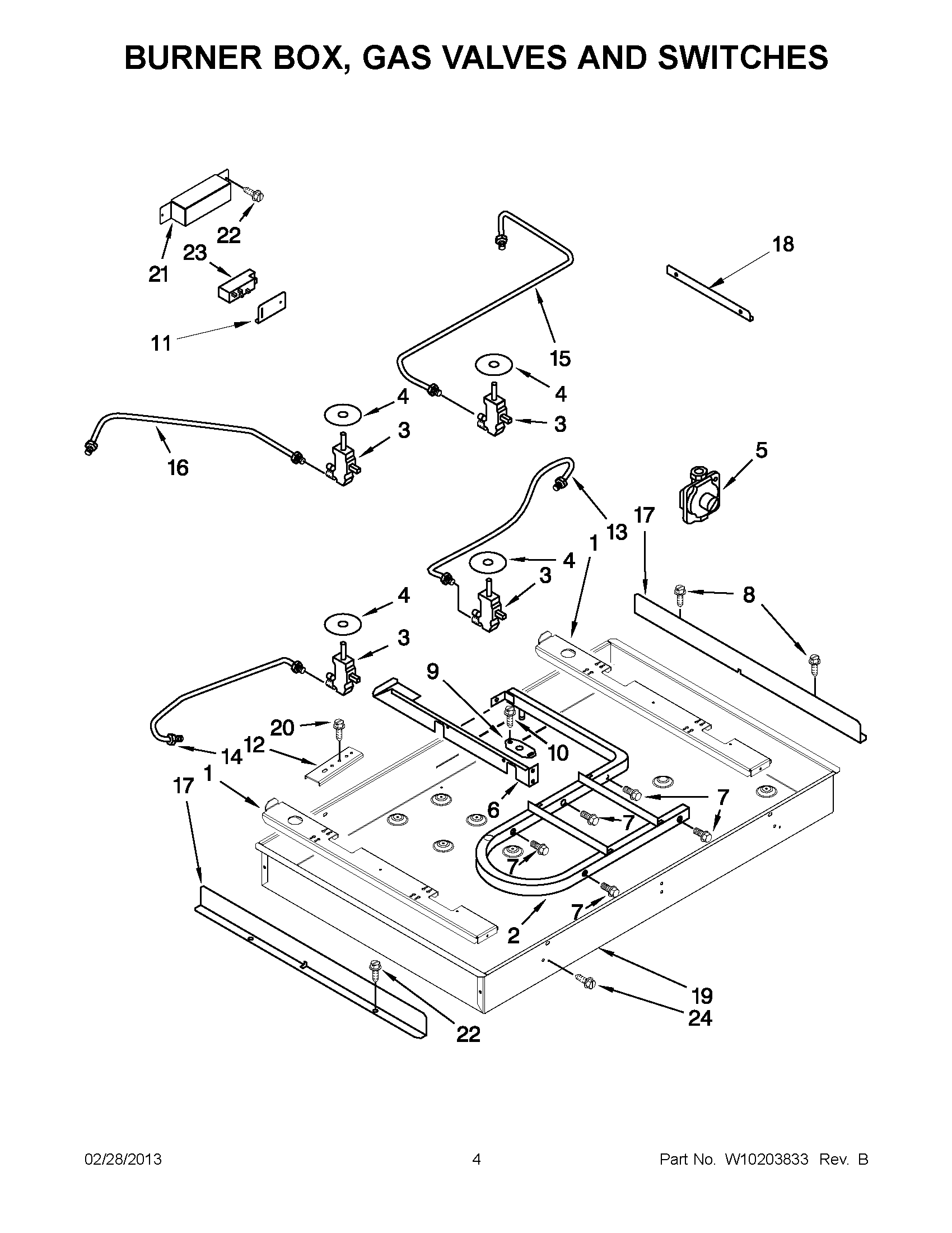

KGCC506RWW03 02 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
18285796 Whirlpool Support Assembly
2Pipe, Manifold
38286561 Whirlpool Oven Burner Valve
3WP4456817 Whirlpool Burner Valve
3Valve, Gas Burner (Yellow)
3Valve, Gas Burner (White)
4WP3188425 Whirlpool Seal Switch
5Regulator, Pressure
6Rail, Center
7WP3186217 Whirlpool Screw
8WP12990527 Whirlpool Microwave Screw
93192491 Whirlpool Support Bracket
10W10491985 Whirlpool Screw
114455837 Whirlpool Oven Mounting Bracket
128186533 Whirlpool Hardware
138285793 Whirlpool Gas Tubing
148285794 Whirlpool Oven Gas Tubing
158285792 Whirlpool Oven Gas Tubing
168285795 Whirlpool Oven Gas Tubing
173191462 Whirlpool Oven Heat Shield
189759145 Whirlpool Oven Support Bracket
19Burner Box
20WP3400093 Whirlpool Screw
218285788 Whirlpool Oven Heat Shield
22WP3177991 Whirlpool Screw
23WPW10110491 Whirlpool Spark Module
24WP4449809 Whirlpool Screw
