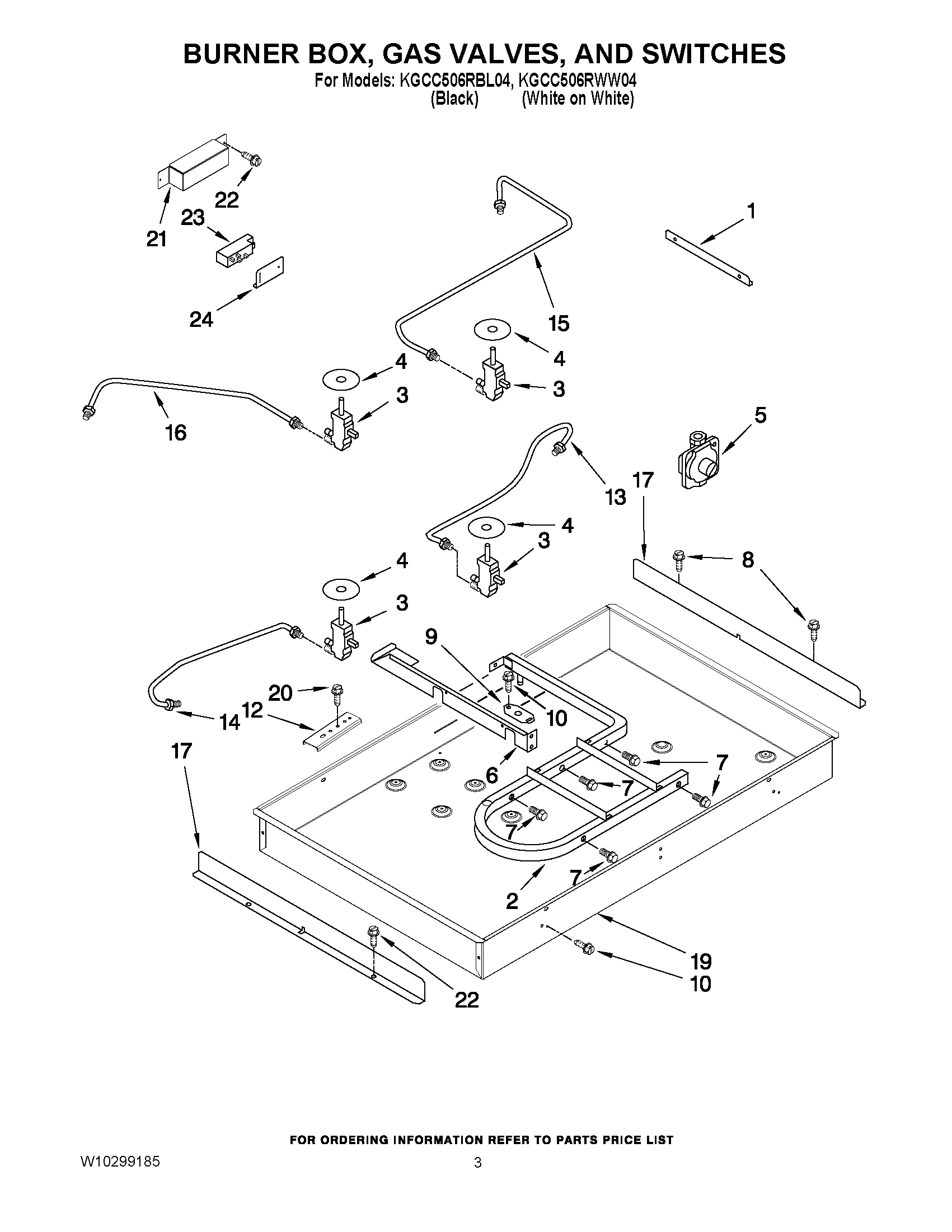

KGCC506RWW04 02 – BURNER BOX, GAS VALVES, AND SWITCHES

KGCC506RWW04 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

KGCC506RWW04 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
19759145 Whirlpool Oven Support Bracket
2Pipe, Manifold
3Valve, Gas Burner (White)
38286561 Whirlpool Oven Burner Valve
3WP4456817 Whirlpool Burner Valve
3Valve, Gas Burner (Yellow)
4WP3188425 Whirlpool Seal Switch
5W11170853 Whirlpool Regulator Assembly
6Rail, Center
7BOLT, VALVE (4)
8WP12990527 Whirlpool Microwave Screw
98286858 Whirlpool Cover Plate
10SCREW
128186533 Whirlpool Hardware
138285793 Whirlpool Gas Tubing
148285794 Whirlpool Oven Gas Tubing
158285792 Whirlpool Oven Gas Tubing
168285795 Whirlpool Oven Gas Tubing
173191462 Whirlpool Oven Heat Shield
19Burner Box
20WP3400093 Whirlpool Screw
218285788 Whirlpool Oven Heat Shield
22WP3177991 Whirlpool Screw
23WPW10110491 Whirlpool Spark Module
244455837 Whirlpool Oven Mounting Bracket
