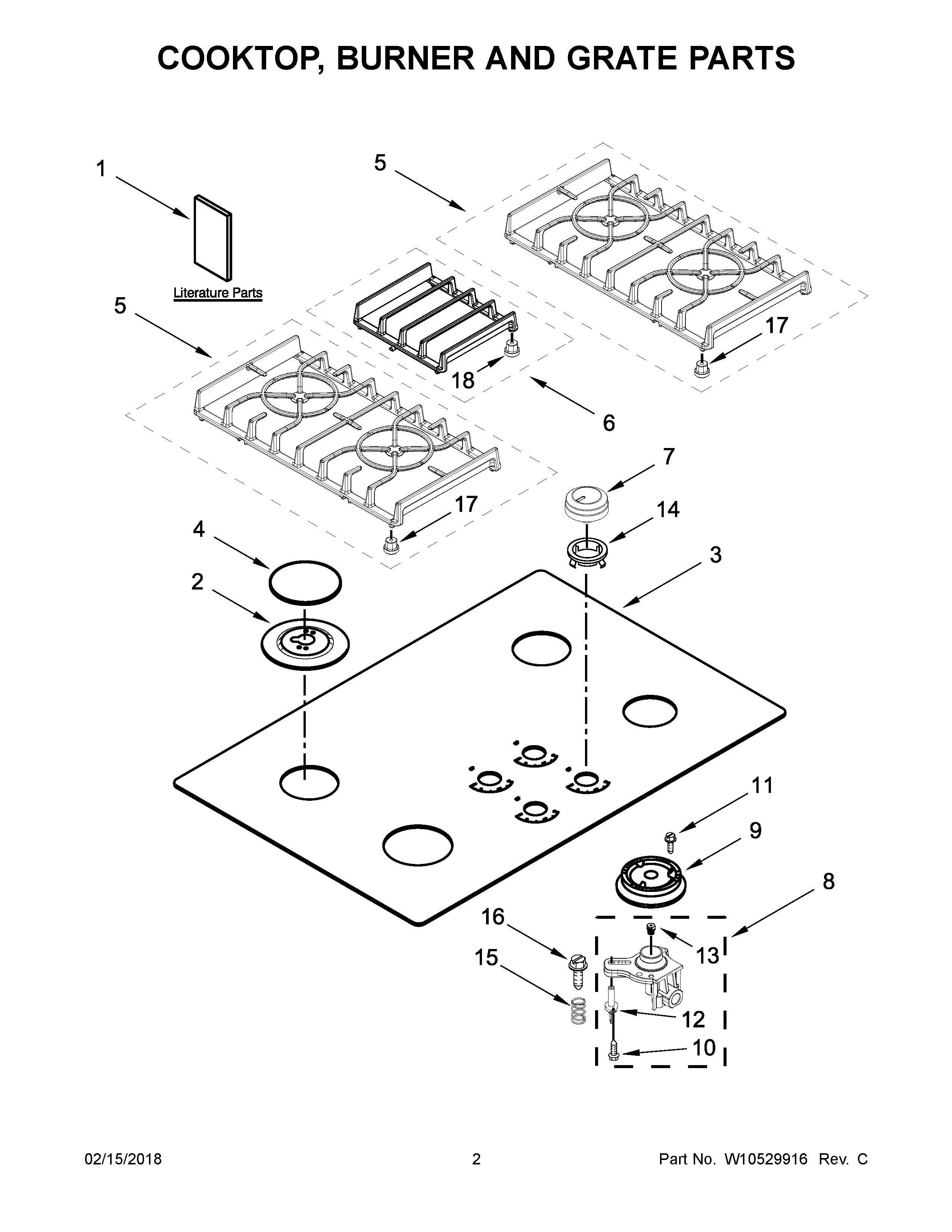

KGCC506RWW05 02 – COOKTOP, BURNER AND GRATE PARTS

KGCC506RWW05 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KGCC506RWW05 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NIW10392007 Whirlpool Power Cord
NIWP4456905 Whirlpool Wire Harness
NIWP8286320 Whirlpool Spud Orifice
NI4456626 Whirlpool Wire
NIWP8286642 Whirlpool Tape
NIWIRE, HV FRONT 750MM
NICABINET (NOT A SERVICEABLE PART)
NI4173634 Whirlpool Bushing
NIWP3177991 Whirlpool Screw
1BGUIDE, USE & CARE
1CINSTRUCTIONS, LP CONVERSION
1INSTRUCTIONS, INSTALLATION
1AInstallation Instructions (Undercounter Oven)
2A9753602BL Whirlpool Bezel
28285779BL Whirlpool Bezel Assembly
2BBezel, Cooktop (RR) (Center) (Black)
2C8285779CG Whirlpool Bezel
2E9753601CG Whirlpool Bezel
2DWPL 9753602CG
3W10564558 Whirlpool Cooktop
3AW10564560 Whirlpool Cooktop
4GWP8286155CG Whirlpool Burner Cap
4D8286156CG Whirlpool Burner Cap
4FWP8286153CG Whirlpool Burner Cap
4WP8286156CB Whirlpool Cooktop Burner Cap
4EWP8286154CG Whirlpool Burner Cap
4BWP8286153CB Whirlpool Burner Cap
4AWP8286154CB Whirlpool Burner Cap
4CWP8286155CB Whirlpool Burner Cap
5W11502175 Whirlpool Burner Grate
5AW11242860 Whirlpool Burner Grate
6AW11242858 Whirlpool Burner Grate
6W11242862 Whirlpool Burner Grate
7WPW10484149 Whirlpool Knob
7AW10484148 Whirlpool Knob
8WPW10128445 Whirlpool Orifice Holder
8CWPW10128451 Whirlpool Orifice Holder
8AWPW10128450 Whirlpool Orifice Holder
8BWPW10128448 Whirlpool Igniter and Orifice Holder
9WPW10406878 Whirlpool Burner Base (16K)
9BWPW10406243 Whirlpool Burner Head Auxiliary 6K
9AWPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
9CWPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
10WP8273062 Whirlpool Screw
11WP3368921 Whirlpool Screw
12WP9782116 Whirlpool Surface Igniter
138286474 Whirlpool Orifice
13AWP3192523 Whirlpool Orifice
13BWP3192529 Whirlpool Orifice Assembly
13C8286551 Whirlpool Oven Orifice
14AWP3180081 Whirlpool Grommet
14W10854242 Whirlpool Grommet
15SPRING, ORIFICE HOLDER
16SCREW
178186321 Whirlpool Range Foot Pads Set of 4
18W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
