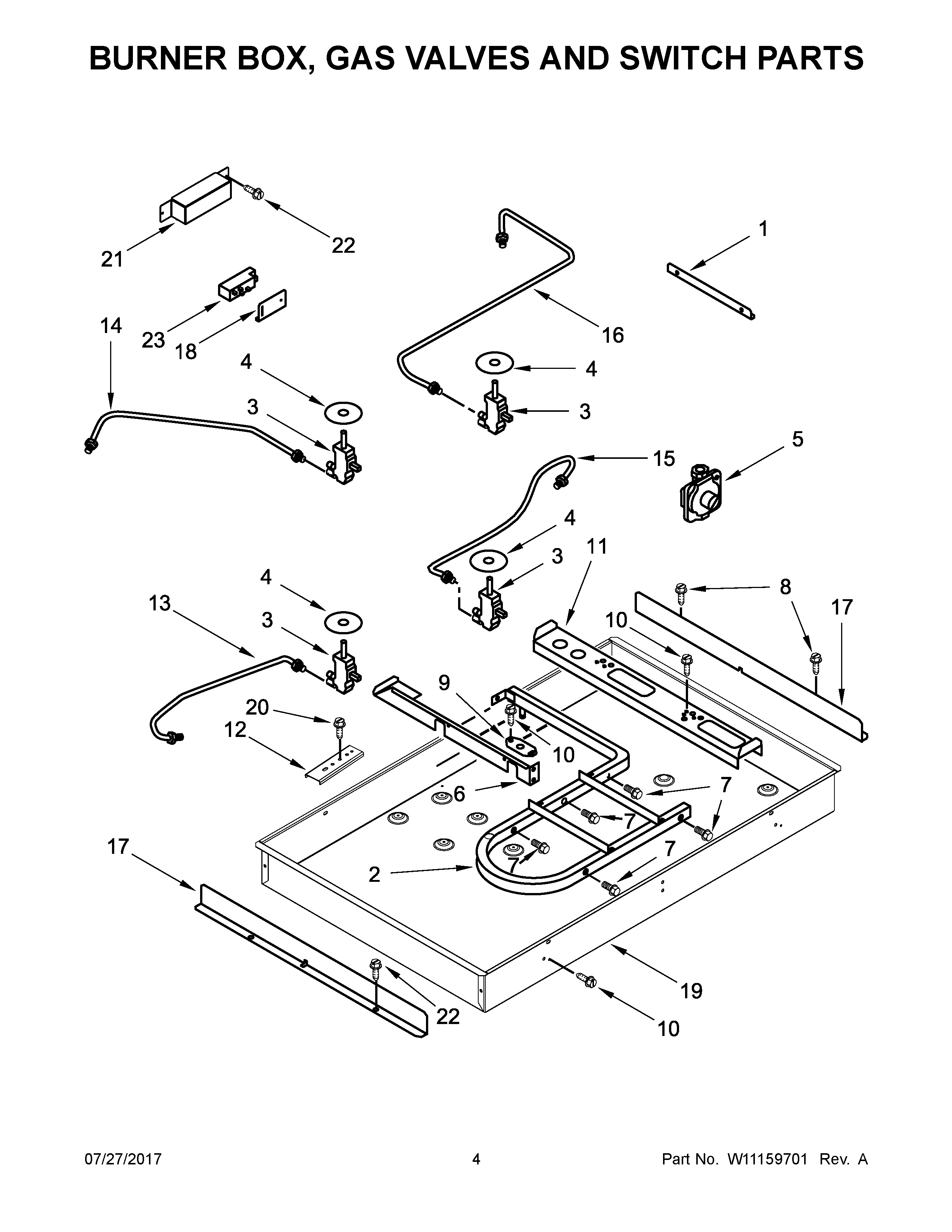

KGCC506RWW07 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
1	9759145 Whirlpool Oven Support Bracket
2	Pipe, Manifold
3	8286561 Whirlpool Oven Burner Valve
3A	WP4456817 Whirlpool Burner Valve
3B	Valve, Gas Burner (White)
3C	Valve, Gas Burner (Yellow)
4	WP3188425 Whirlpool Seal Switch
5	W11170853 Whirlpool Regulator Assembly
6	Rail, Center
7	BOLT, VALVE (4)
8	WP12990527 Whirlpool Microwave Screw
9	8286858 Whirlpool Cover Plate
10	SCREW
11	8285796 Whirlpool Support Assembly
12	8186533 Whirlpool Hardware
13	8285794 Whirlpool Oven Gas Tubing
14	8285795 Whirlpool Oven Gas Tubing
15	8285793 Whirlpool Gas Tubing
16	8285792 Whirlpool Oven Gas Tubing
17	3191462 Whirlpool Oven Heat Shield
18	4455837 Whirlpool Oven Mounting Bracket
19	Burner Box
20	WP3400093 Whirlpool Screw
21	8285788 Whirlpool Oven Heat Shield
22	WP3177991 Whirlpool Screw
23	WPW10110491 Whirlpool Spark Module
