KGCC566HBL2 01 – SECTION
Written by
in

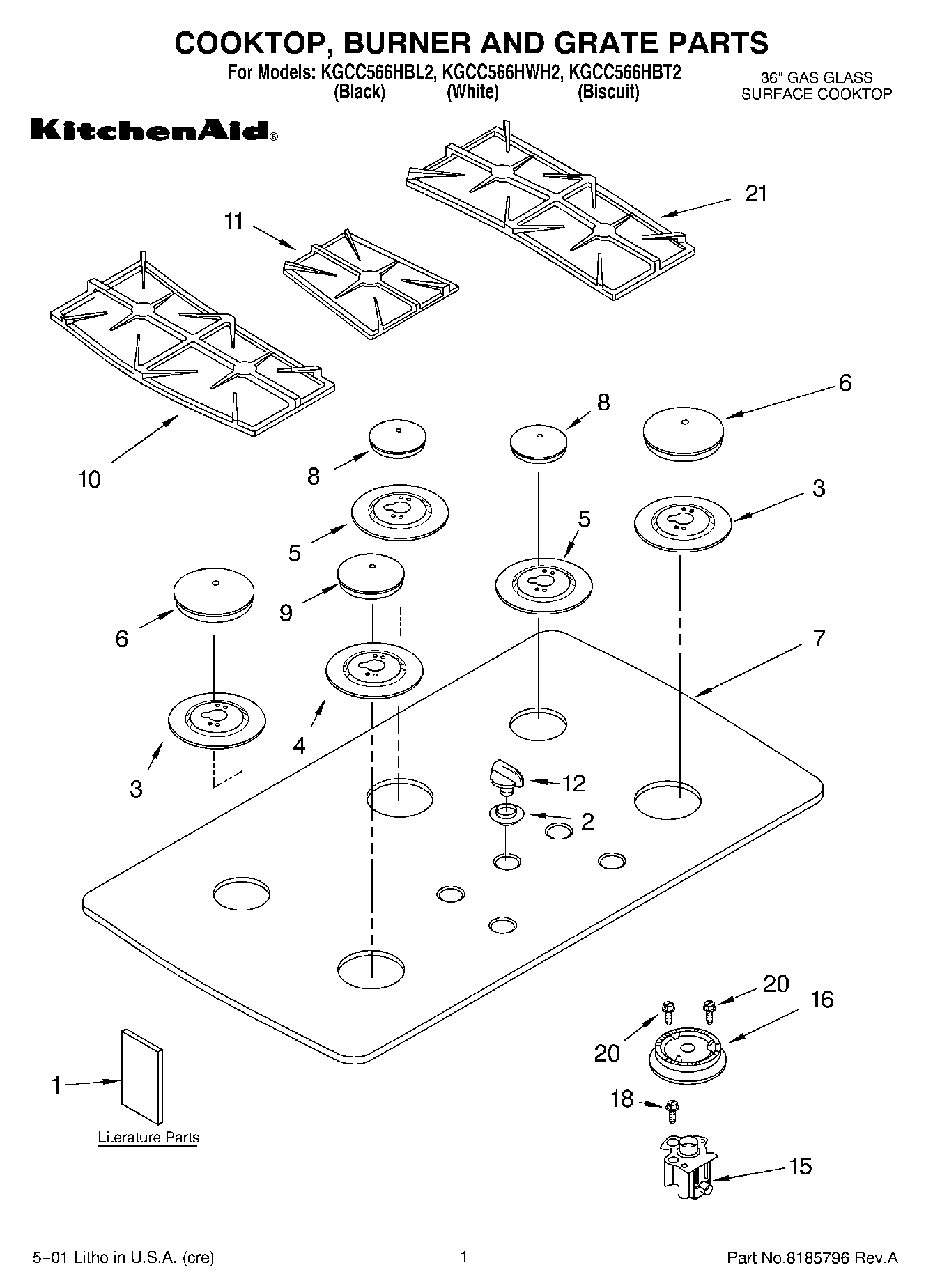

KGCC566HBL2 01 – SECTION
Products
Position
Product
1
Safer Cooking Tips
1
LITERATURE PARTS (Wiring Diagram)
1
Literature Parts (Installation Instructions)
1
Literature Parts (Use & Care Guide)
1
LP Conversion Instructions
2
Grommet, Glass (Biscuit)
2
WP3180081 Whirlpool Grommet
2
W10854242 Whirlpool Grommet
3
WPL 9753602GS
3
Bezel, Bu
4
Bezel, Burner (Mouse Gray) (14K LF)
4
(Bezel, Burner (Black)) (14K LF)
5
(Bezel, Burner (Black)) (6K RF-LR)
5
Bezel, Burner (Mouse Gray) (6K RF-LR)
6
Cap, (RF) (LR) (Biscuit)
6
Cap, (RF) (LR) (White)
6
Cap, (RF) (LR) (Black)
7
Hinge Receiver (Right Hand)
7
Cooktop, Glass (Biscuit)
7
Cooktop, Glass (White)
8
Cap, (RR) (Biscuit)
8
Cap, (RR) (White)
8
Cap, (RR) (Black)
9
Cap, (LF) (White)
9
Cap, (LF) (Black)
9
Cap, (LF) (Biscuit)
10
Grate, Burner LH (Black)
10
Grate, Burner LH (Moleskin)
10
Grate, Burner LH (Mouse Gray)
11
Grate, Filler (Black)
11
Grate, Filler (Mouse Gray)
11
Grate, Filler (Moleskin)
12
WPL 3191923
12
WPL 3191925
12
WP3191922 Whirlpool Control Knob
15
Holder, Orifice (Includes 13 & 14) (LF 12K)
15
Orifice Holder (Turbi)
15
814513 Whirlpool Top Burner
15
Holder, Orifice (Includes 13 & 14) (RF 6K)
16
Head, Burner (14K – LF)
16
WP4455979 Whirlpool Range Small Burner Head
16
WP4455981 Whirlpool Burner Head
18
WP4449809 Whirlpool Screw
20
WP3368921 Whirlpool Screw
21
WPL 3193016
21
WPL 3193017
21
WPL 3193018
←
