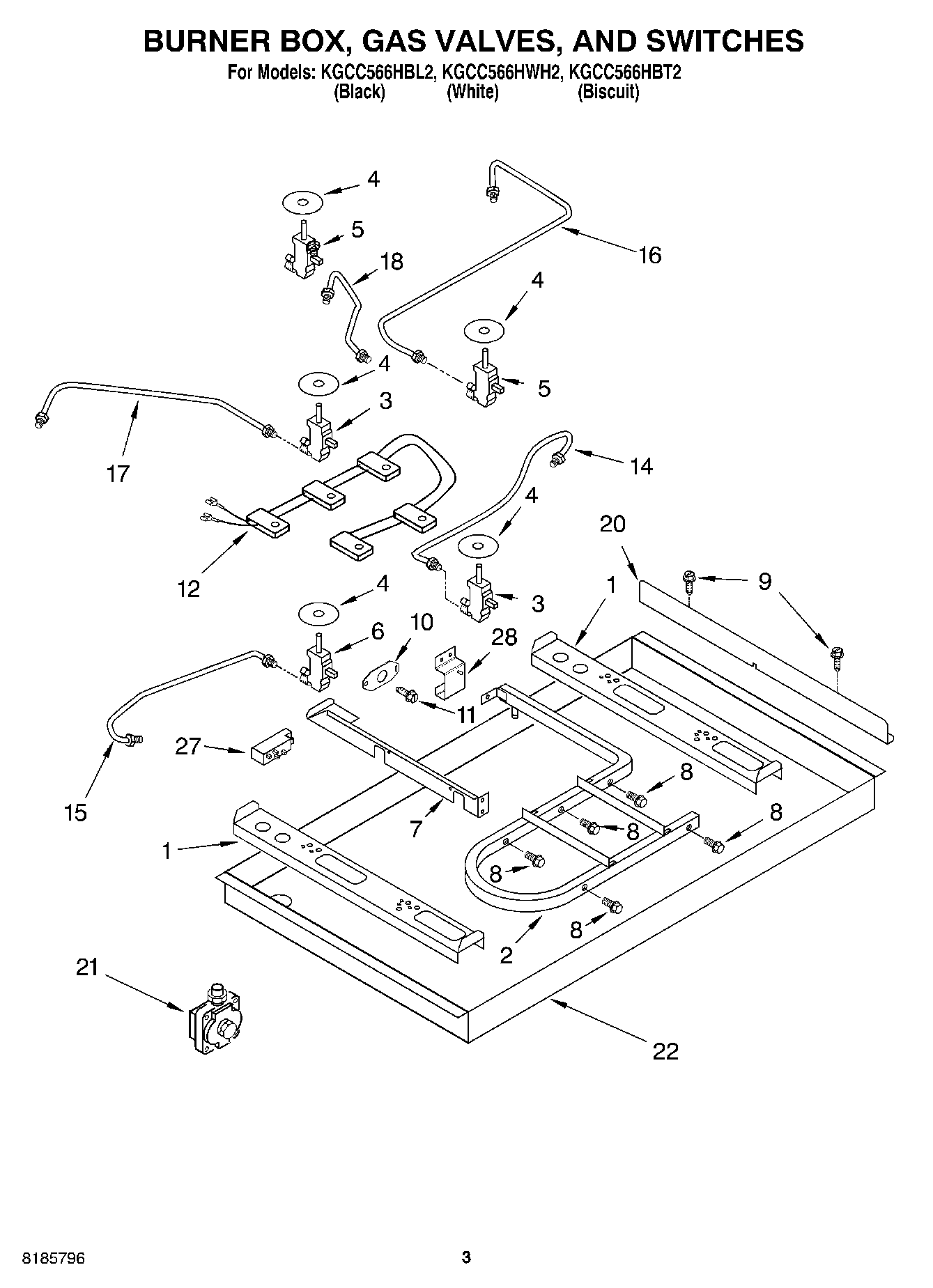

KGCC566HBL2 02 – SECTION

Products

Position	Product
1	W10203756 Whirlpool Support
2	Pipe, Manifold
3	Valve, Burner (Small (1))
4	WP3188425 Whirlpool Seal Switch
5	Valve, Burner (Large (3))
6	Valve, Burner (Silver)
7	Rail, Center
8	Bolt (Gas Valve)
10	3192491 Whirlpool Support Bracket
11	W10491985 Whirlpool Screw
12	Harness & Switches
14	3191324 Whirlpool Oven Gas Tubing
15	Tubing, Burner (LF)
16	Tubing, Burner (RR)
17	Tubing, Gas Burner (LR)
18	Tubing, Gas Burner (CR)
20	3191462 Whirlpool Oven Heat Shield
21	Regulator, Pressure
22	Burner Box
27	WPW10110486 Whirlpool Spark Module
28	Bracket, Mounting
28	Seal, Foam-Cooktop
28	Hardware, Mounting
28	8186533 Whirlpool Hardware
28	Nut, Tinnerman (2)
28	W10392007 Whirlpool Power Cord
28	4173634 Whirlpool Bushing
28	WP3177991 Whirlpool Screw
28	15“
28	8285402 Whirlpool Oven Grounding Wire
28	28“
28	WP3192741 Whirlpool LP Conversion Kit
