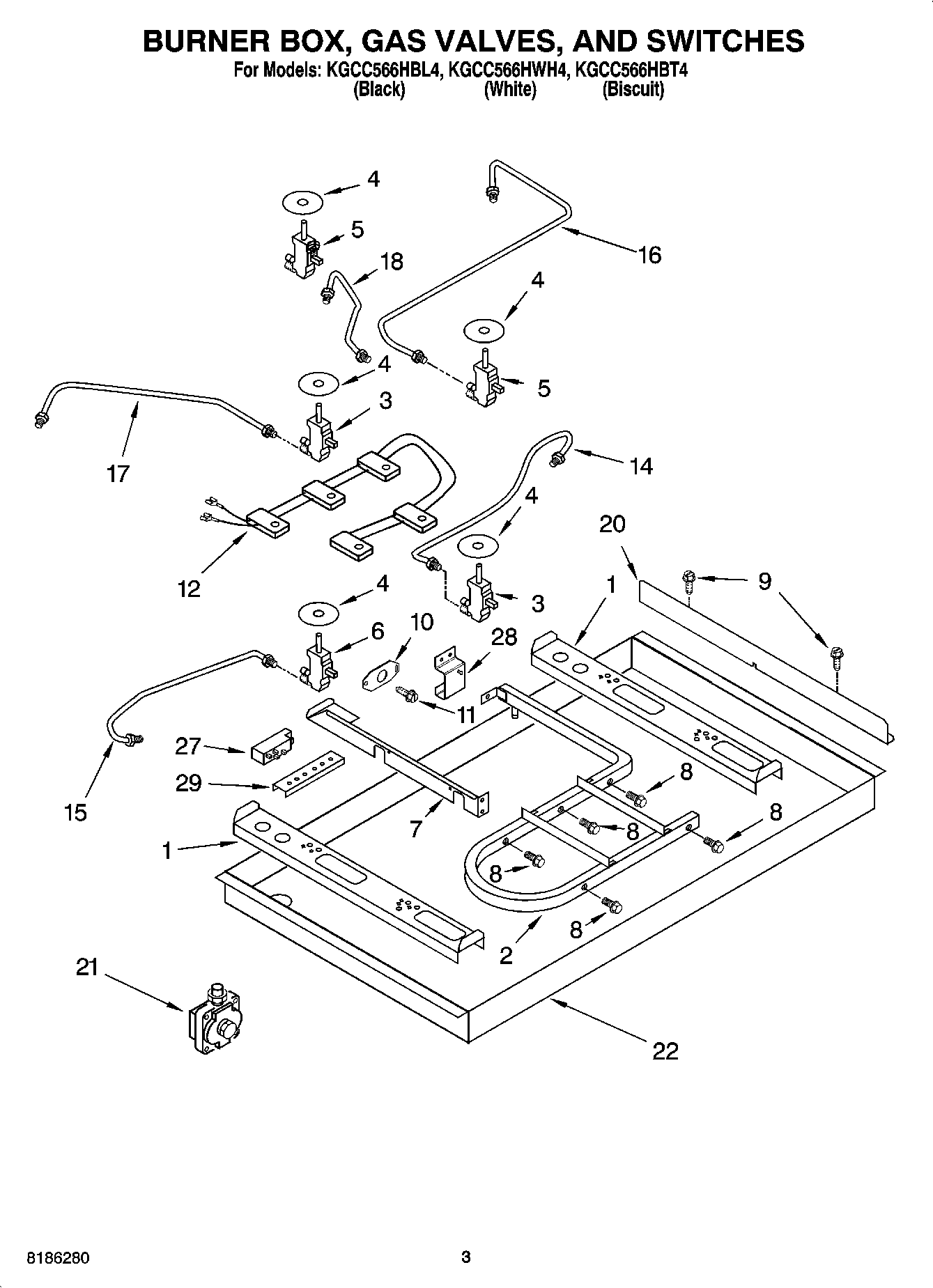

KGCC566HBL4 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

KGCC566HBL4 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

Written by

in

KGCC566HBL4 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

Products

PositionProduct
WP3192741 Whirlpool LP Conversion Kit
FOLLOWING PARTS NOT ILLUSTRATED
8285402 Whirlpool Oven Grounding Wire
4456626 Whirlpool Wire
Miscellaneous
Seal, Foam-Cooktop
4456627 Whirlpool Wire Harness
WIRING HARNESS PARTS
Nut, Tinnerman (2)
Hardware, Mounting
8186533 Whirlpool Hardware
WP3177991 Whirlpool Screw
4173634 Whirlpool Bushing
W10392007 Whirlpool Power Cord
1W10203756 Whirlpool Support
2Pipe, Manifold
3WP4456816 Whirlpool Burner Valve
4WP3188425 Whirlpool Seal Switch
5WP4456817 Whirlpool Burner Valve
6Valve, Burner (Bronze)
7Rail, Center
8WP3186217 Whirlpool Screw
103192491 Whirlpool Support Bracket
11W10491985 Whirlpool Screw
12WP4456901 Whirlpool Wire Harness
143191324 Whirlpool Oven Gas Tubing
15Tubing, Burner (LF)
16Tubing, Burner (RR)
17Tubing, Gas Burner (LR)
18Tubing, Gas Burner (CR)
203191462 Whirlpool Oven Heat Shield
21Regulator, Pressure
22Burner Box
27WPW10110486 Whirlpool Spark Module
28Bracket, Mounting
29WP3400093 Whirlpool Screw
