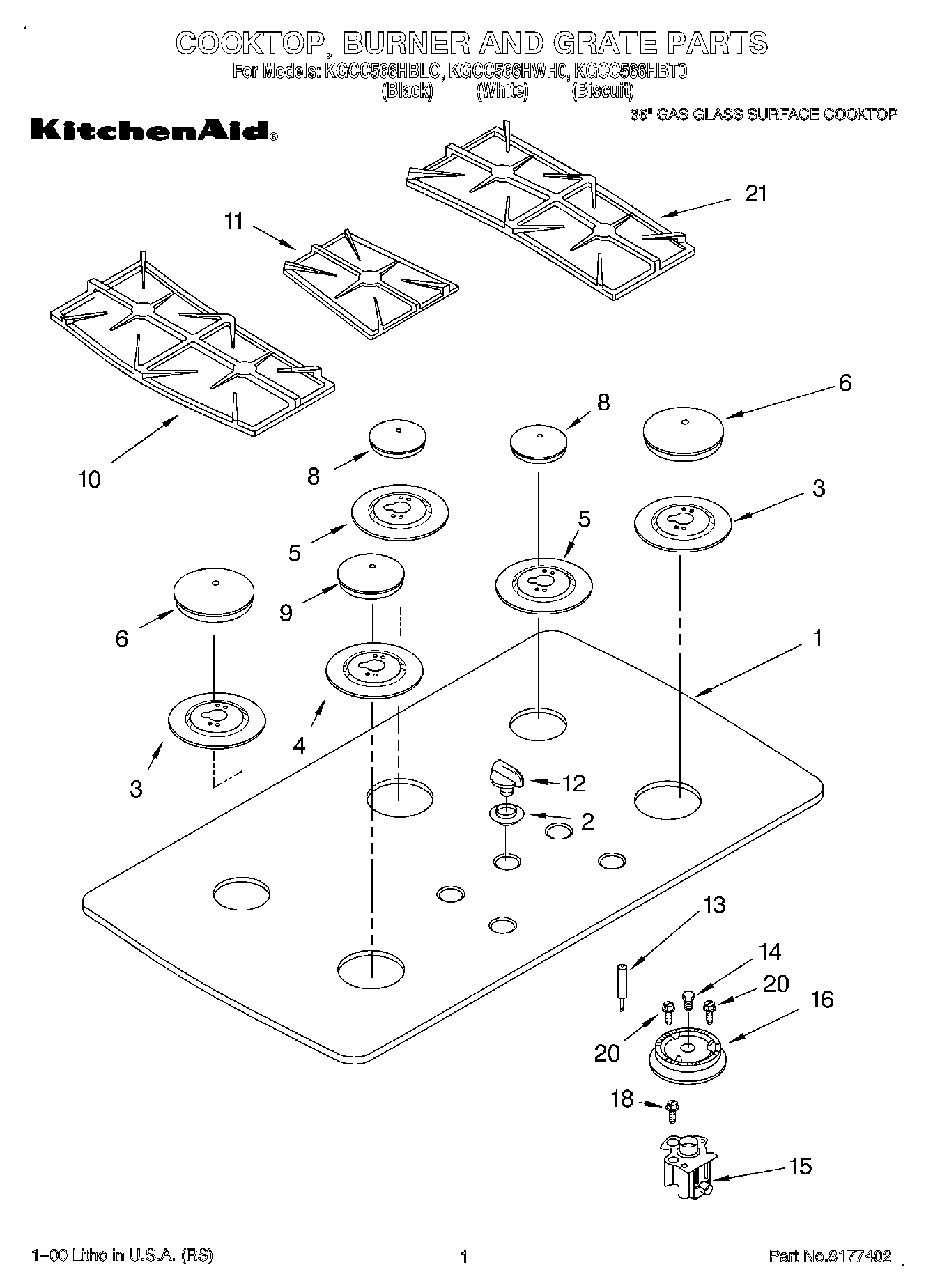

KGCC566HBT0 01 – SECTION

Products

Position	Product
1	Cooktop, Glass (Black)
1	Cooktop, Glass (White)
1	Cooktop, Glass (Honeycomb)
2	WP3180081 Whirlpool Grommet
2	Grommet, Glass (Biscuit)
2	W10854242 Whirlpool Grommet
3	Bezel, Cooktop (RF) (LR) (Black)
3	Bezel, Cooktop (RF) (LR) (Mouse Gray)
4	Bezel, Cooktop (LF) (Mouse Gray)
4	Bezel, Cooktop (LF) (Black)
5	Bezel, Cooktop (RR) (Center) (Black)
5	Bezel, Cooktop (RR) (Center) (Mouse Gray)
6	Cap, (RF) (LR) (Black)
6	Cap, (RF) (LR) (White)
6	Cap, (RF) (LR) (Biscuit)
8	Cap, (RR) (White)
8	Cap, (RR) (Biscuit)
8	Cap, (RR) (Black)
9	Cap, (LF) (Biscuit)
9	Cap, (LF) (Black)
9	Cap, (LF) (White)
10	Grate, Burner LH (Black)
10	Grate, Burner LH (Mouse Gray)
10	Grate, Burner LH (Moleskin)
11	Grate, Filler (Mouse Gray)
11	Grate, Filler (Moleskin)
11	Grate, Filler (Black)
12	WPL 3191923
12	WPL 3191925
12	WP3191922 Whirlpool Control Knob
13	WP9754215 Whirlpool Surface Igniter
14	Orifice (RF)
14	WP9753930 Whirlpool Orifice
14	WP3192523 Whirlpool Orifice
14	Orifice (Turbi (14k))
15	814513 Whirlpool Top Burner
15	Holder, Orifice (Includes 13 & 14) (RF 6K)
15	Holder, Orifice (Includes 13 & 14) (LF 12K)
15	Orifice Holder (Turbi)
16	WP4455981 Whirlpool Burner Head
16	WP4455979 Whirlpool Range Small Burner Head
16	Head, Burner (14K – LF)
18	WP4449809 Whirlpool Screw
20	WP3368921 Whirlpool Screw
21	WPL 3193016
21	WPL 3193017
21	WPL 3193018
