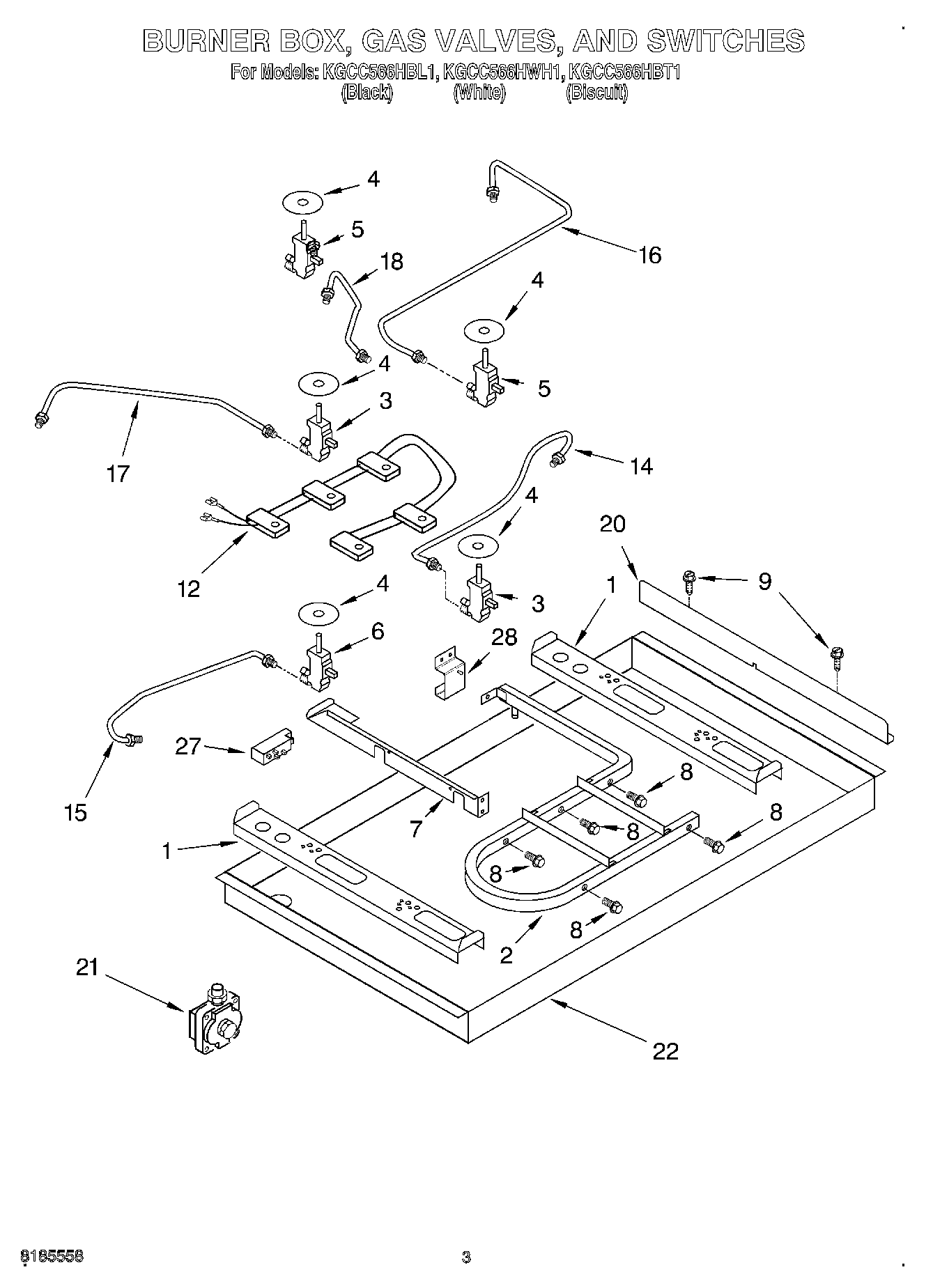

KGCC566HBT1 02 – SECTION

Products

Position	Product
	WP3192741 Whirlpool LP Conversion Kit
	Seal, Foam-Cooktop
	Wire, Ground
	Literature Parts (Use & Care Guide)
	LITERATURE PARTS (Wiring Diagram)
	28“
	15“
	WP3177991 Whirlpool Screw
	4173634 Whirlpool Bushing
	W10392007 Whirlpool Power Cord
	8186533 Whirlpool Hardware
	Installation Instructions
	Nut, Tinnerman (2)
	Safer Cooking Tips
	Hardware, Mounting
	LP Conversion Instructions
1	W10203756 Whirlpool Support
2	3192491 Whirlpool Support Bracket
2	Pipe, Manifold
3	Valve, Burner (Small (1))
4	WP3188425 Whirlpool Seal Switch
5	Valve, Burner (Large (3))
6	Valve, Burner (Silver)
7	Rail, Center
8	Bolt, Gas Valve
12	Harness & Switches
14	3191324 Whirlpool Oven Gas Tubing
15	Tubing, Burner (LF)
16	Tubing, Burner (RR)
17	Tubing, Gas Burner (LR)
18	Tubing, Gas Burner (CR)
20	3191462 Whirlpool Oven Heat Shield
21	Regulator, Pressure
22	Burner Box
27	WPW10110486 Whirlpool Spark Module
28	Bracket, Mounting
