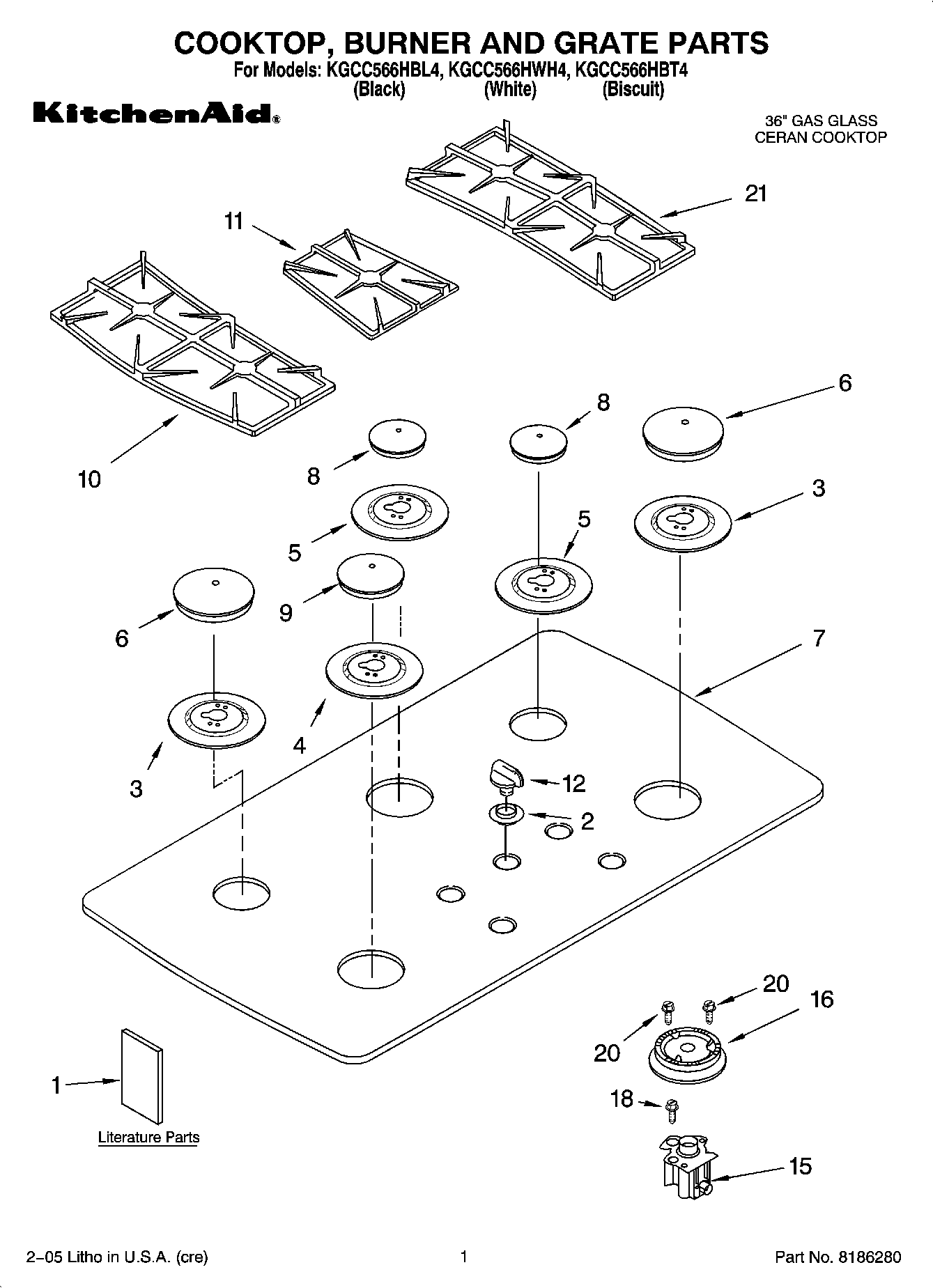

KGCC566HBT4 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Installation Instructions
1	L.P. Conversion Instructions
1	Safe Cooking Tips
1	Use & Care Guide
1	Wiring Diagram
2	Grommet, Glass (Biscuit)
2	W10854242 Whirlpool Grommet
2	WP3180081 Whirlpool Grommet
3	WPL 9753602GS
3	Bezel, Bu
4	Bezel, Burner (Mouse Gray) (14K LF)
4	(Bezel, Burner (Black)) (14K LF)
5	(Bezel, Burner (Black)) (6K RF-LR)
5	Bezel, Burner (Mouse Gray) (6K RF-LR)
6	Cap, (RF) (LR) (Black)
6	Cap, (RF) (LR) (White)
6	Cap, (RF) (LR) (Biscuit)
7	Hinge Receiver (Right Hand)
7	Cooktop, Glass (White)
7	Cooktop, Glass (Biscuit)
8	Cap, (RR) (Biscuit)
8	Cap, (RR) (White)
8	Cap, (RR) (Black)
9	Cap, (LF) (Black)
9	Cap, (LF) (White)
9	Cap, (LF) (Biscuit)
10	Grate, Burner LH (Moleskin)
10	Grate, Burner LH (Mouse Gray)
10	Grate, Burner LH (Black)
11	Grate, Filler (Moleskin)
11	Grate, Filler (Mouse Gray)
11	Grate, Filler (Black)
12	WPL 3191923
12	WPL 3191925
12	WP3191922 Whirlpool Control Knob
15	WPW10155786 Whirlpool Surface Burner Orifice Holder
15	WPW10128448 Whirlpool Igniter and Orifice Holder
15	WPW10155785 Whirlpool Orifice Holder
15	Holder, Orifice (Semi-Rapid)
16	Burner Head (Turbi)
16	WP4455981 Whirlpool Burner Head
16	WP4455979 Whirlpool Range Small Burner Head
18	WP4449809 Whirlpool Screw
20	WP3368921 Whirlpool Screw
21	WPL 3193016
21	WPL 3193017
21	WPL 3193018
