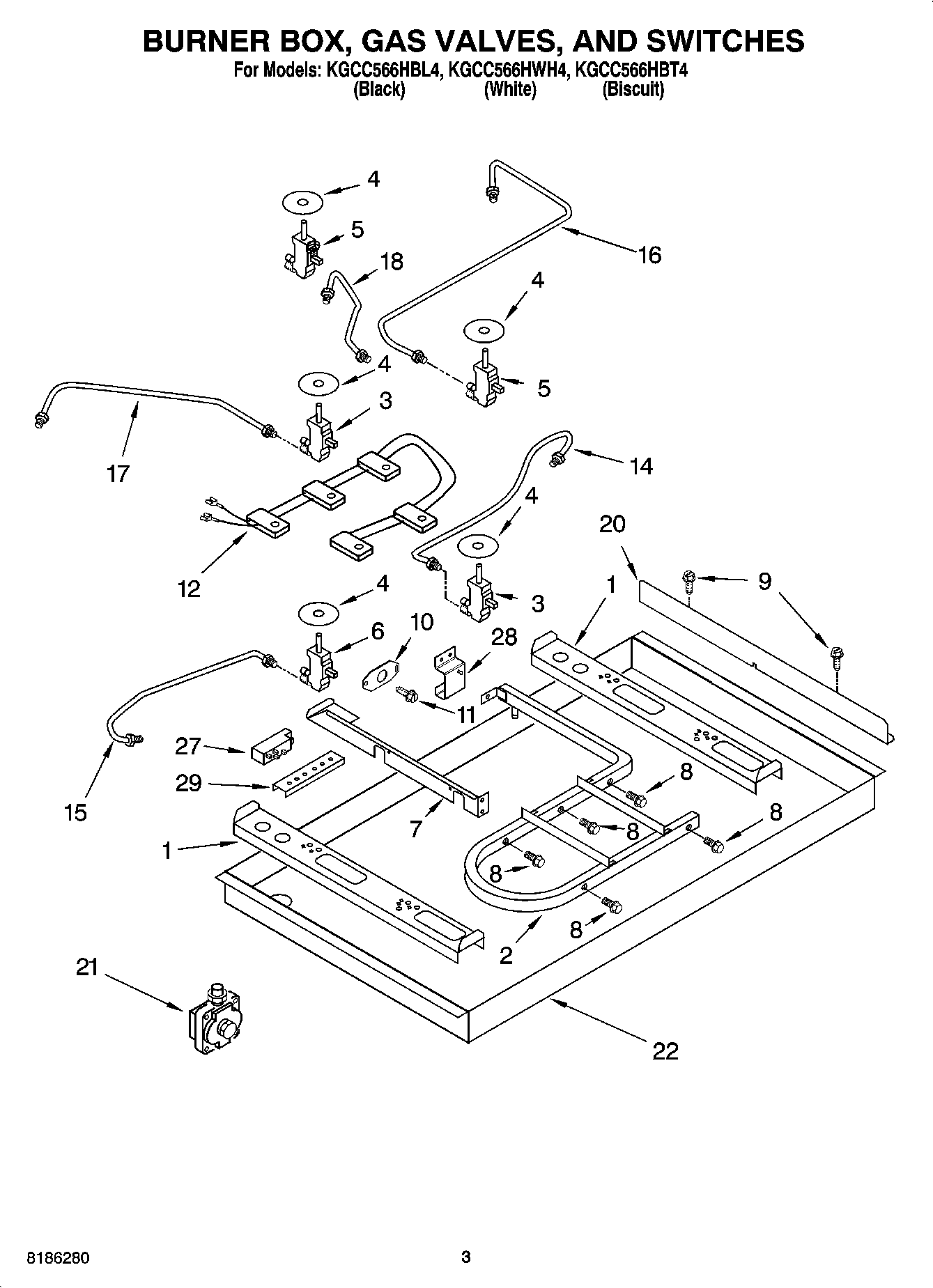

KGCC566HWH4 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

Products

Position	Product
	WP3192741 Whirlpool LP Conversion Kit
	Miscellaneous
	FOLLOWING PARTS NOT ILLUSTRATED
	Seal, Foam-Cooktop
	8285402 Whirlpool Oven Grounding Wire
	4456626 Whirlpool Wire
	WIRING HARNESS PARTS
	4456627 Whirlpool Wire Harness
	W10392007 Whirlpool Power Cord
	4173634 Whirlpool Bushing
	WP3177991 Whirlpool Screw
	8186533 Whirlpool Hardware
	Hardware, Mounting
	Nut, Tinnerman (2)
1	W10203756 Whirlpool Support
2	Pipe, Manifold
3	WP4456816 Whirlpool Burner Valve
4	WP3188425 Whirlpool Seal Switch
5	WP4456817 Whirlpool Burner Valve
6	Valve, Burner (Bronze)
7	Rail, Center
8	WP3186217 Whirlpool Screw
10	3192491 Whirlpool Support Bracket
11	W10491985 Whirlpool Screw
12	WP4456901 Whirlpool Wire Harness
14	3191324 Whirlpool Oven Gas Tubing
15	Tubing, Burner (LF)
16	Tubing, Burner (RR)
17	Tubing, Gas Burner (LR)
18	Tubing, Gas Burner (CR)
20	3191462 Whirlpool Oven Heat Shield
21	Regulator, Pressure
22	Burner Box
27	WPW10110486 Whirlpool Spark Module
28	Bracket, Mounting
29	WP3400093 Whirlpool Screw
