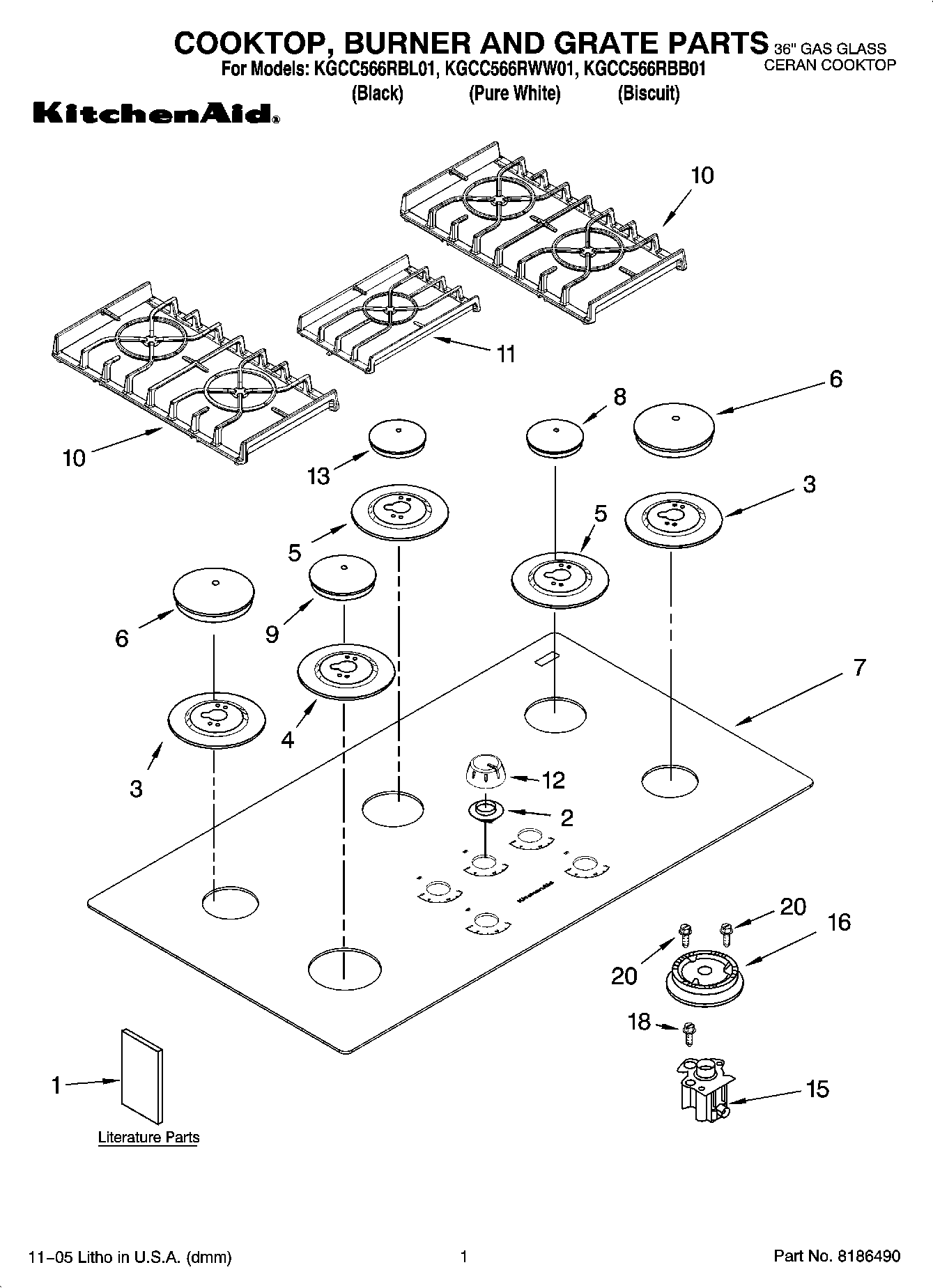

KGCC566RBB01 01 – COOKTOP, BURNER AND GRATE PARTS

KGCC566RBB01 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KGCC566RBB01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Use & Care Guide
1Wiring Diagram
1Safe Cooking Tips
1Safe Cooking Tips (French)
1Installation Instructions
1L.P. Conversion Instructions
2W10854242 Whirlpool Grommet
2Grommet, Glass (Biscuit)
2WP3180081 Whirlpool Grommet
3Bezel, Cooktop (RF) (LR) (Moleskin)
3WPL 9753602CG
39753602BL Whirlpool Bezel
4Bezel, Cooktop (LF) (Moleskin)
48285779BL Whirlpool Bezel Assembly
48285779CG Whirlpool Bezel
5Bezel, Cooktop (RR) (Center) (Black)
59753601CG Whirlpool Bezel
5Bezel, Cooktop (RR) (Center) (Moleskin)
6WP8286153CG Whirlpool Burner Cap
6WP8286153CB Whirlpool Burner Cap
6Cap, (RF) (LR) (Moleskin)
7W10661511 Whirlpool Maintop Assembly
7W10661512 Whirlpool Cooktop Assembly
7Cooktop Glass (Biscuit)
8Cap, (Center) (Moleskin)
8WP8286154CB Whirlpool Burner Cap
8WP8286154CG Whirlpool Burner Cap
9Cap, (LF) (Moleskin)
98286156CG Whirlpool Burner Cap
9WP8286156CB Whirlpool Cooktop Burner Cap
10Grate, Burner (Moleskin)
10W11242860 Whirlpool Burner Grate
10W11502175 Whirlpool Burner Grate
118285881CG Whirlpool Burner Grate
11W11242859 Whirlpool Burner Grate
11Grate, Center (Moleskin)
12WP8286094BL Whirlpool Knob
128286094WH Whirlpool Knob Assembly
128286094BT Whirlpool Knob
13WP8286155CB Whirlpool Burner Cap
138286155MS Whirlpool Burner Cap
13WP8286155CG Whirlpool Burner Cap
15WPW10128451 Whirlpool Orifice Holder
15WPW10128448 Whirlpool Igniter and Orifice Holder
15WP8286177 Whirlpool Orifice Holder
15WPW10128450 Whirlpool Orifice Holder
16WPW10406243 Whirlpool Burner Head Auxiliary 6K
16WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
16WPW10406878 Whirlpool Burner Base (16K)
16WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
18WP4449809 Whirlpool Screw
20WP3368921 Whirlpool Screw
