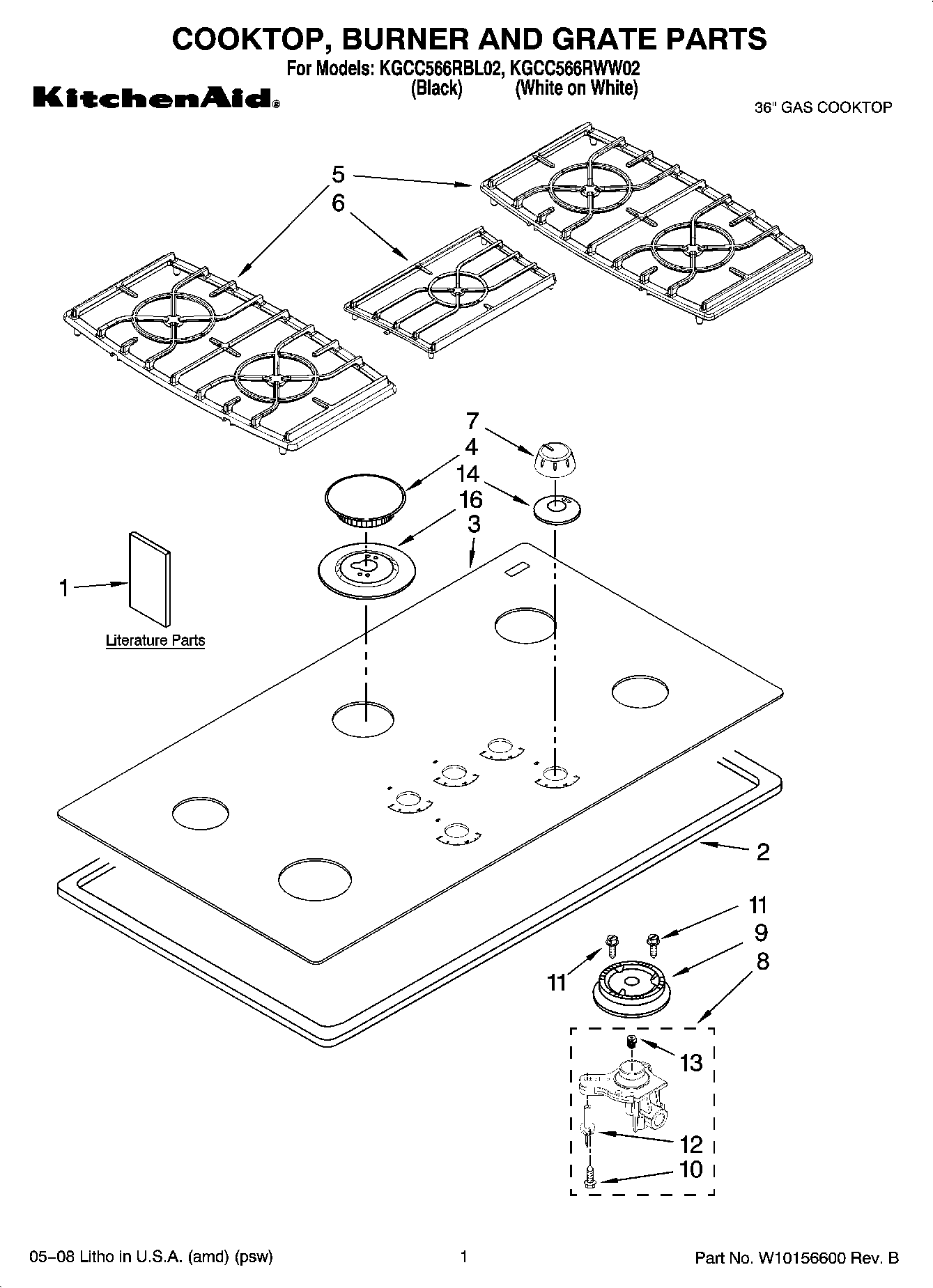

KGCC566RWW02 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Installation Instructions
1Installation Instructions (Undercounter Oven)
1Wiring Diagram
1Use & Care Guide
1L.P. Conversion Instructions
1Safe Cooking Tips (French)
1Safe Cooking Tips
2Seal, Foam-Cooktop
3W10661511 Whirlpool Maintop Assembly
3W10661512 Whirlpool Cooktop Assembly
4WP8286155CG Whirlpool Burner Cap
4WP8286156CB Whirlpool Cooktop Burner Cap
4WP8286155CB Whirlpool Burner Cap
4WP8286154CB Whirlpool Burner Cap
4WP8286153CB Whirlpool Burner Cap
4WP8286153CG Whirlpool Burner Cap
48286156CG Whirlpool Burner Cap
4WP8286154CG Whirlpool Burner Cap
5W11242860 Whirlpool Burner Grate
5W11502175 Whirlpool Burner Grate
6W11242859 Whirlpool Burner Grate
68285881CG Whirlpool Burner Grate
7WP8286094BL Whirlpool Knob
78286094WH Whirlpool Knob Assembly
8WPW10128450 Whirlpool Orifice Holder
8WPW10128448 Whirlpool Igniter and Orifice Holder
8Holder, Orifice (RR)
8WPW10128445 Whirlpool Orifice Holder
9WPW10406878 Whirlpool Burner Base (16K)
9WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
9WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
9WPW10406243 Whirlpool Burner Head Auxiliary 6K
10WP8273062 Whirlpool Screw
11WP3368921 Whirlpool Screw
12WP9782116 Whirlpool Surface Igniter
138286474 Whirlpool Orifice
13WP3192529 Whirlpool Orifice Assembly
138286551 Whirlpool Oven Orifice
13WP3192523 Whirlpool Orifice
14W10854242 Whirlpool Grommet
14WP3180081 Whirlpool Grommet
16WPL 9753602CG
168285779CG Whirlpool Bezel
16Bezel, Cooktop (RR) (Center) (Black)
168285779BL Whirlpool Bezel Assembly
169753602BL Whirlpool Bezel
169753601CG Whirlpool Bezel
