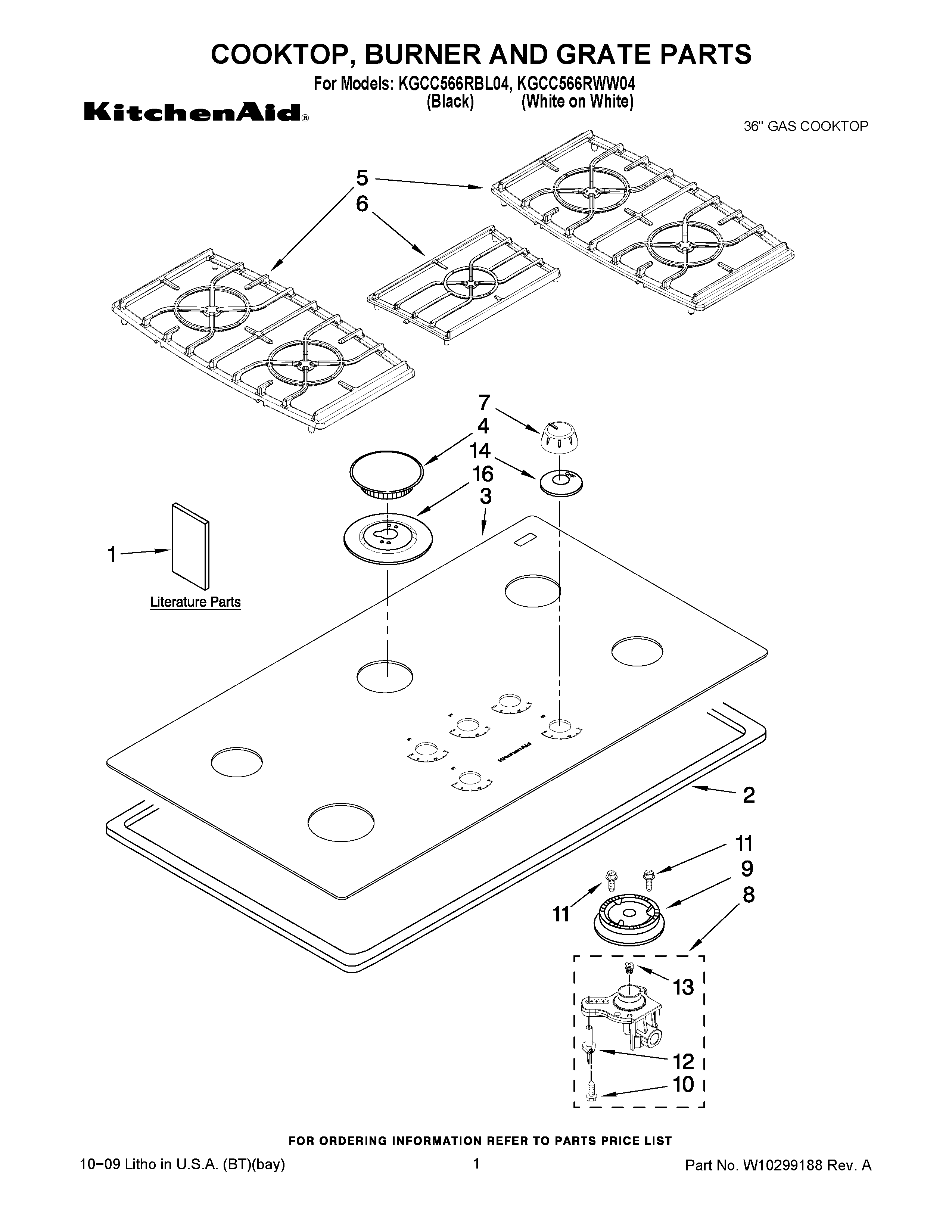

KGCC566RWW04 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Installation Instructions
1	Wiring Diagram
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
1	Installation Instructions (Undercounter Oven)
1	L.P. Conversion Instructions
1	Use & Care Guide
2	Seal, Foam-Cooktop
3	W10661511 Whirlpool Maintop Assembly
3	W10661512 Whirlpool Cooktop Assembly
4	WP8286155CG Whirlpool Burner Cap
4	WP8286156CB Whirlpool Cooktop Burner Cap
4	WP8286155CB Whirlpool Burner Cap
4	WP8286154CB Whirlpool Burner Cap
4	WP8286153CB Whirlpool Burner Cap
4	WP8286153CG Whirlpool Burner Cap
4	8286156CG Whirlpool Burner Cap
4	WP8286154CG Whirlpool Burner Cap
5	W11502175 Whirlpool Burner Grate
5	W11242860 Whirlpool Burner Grate
6	W11242859 Whirlpool Burner Grate
6	8285881CG Whirlpool Burner Grate
7	8286094WH Whirlpool Knob Assembly
7	WP8286094BL Whirlpool Knob
8	WPW10128451 Whirlpool Orifice Holder
8	WPW10128448 Whirlpool Igniter and Orifice Holder
8	WPW10128450 Whirlpool Orifice Holder
8	WPW10128445 Whirlpool Orifice Holder
9	WPW10406878 Whirlpool Burner Base (16K)
9	WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
9	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
9	WPW10406243 Whirlpool Burner Head Auxiliary 6K
10	WP8273062 Whirlpool Screw
11	WP3368921 Whirlpool Screw
12	WP9782116 Whirlpool Surface Igniter
13	WP3192523 Whirlpool Orifice
13	8286474 Whirlpool Orifice
13	8286551 Whirlpool Oven Orifice
13	WP3192529 Whirlpool Orifice Assembly
14	WP3180081 Whirlpool Grommet
14	W10854242 Whirlpool Grommet
16	8285779CG Whirlpool Bezel
16	9753602BL Whirlpool Bezel
16	8285779BL Whirlpool Bezel Assembly
16	Bezel, Cooktop (RR) (Center) (Black)
16	WPL 9753602CG
16	9753601CG Whirlpool Bezel
