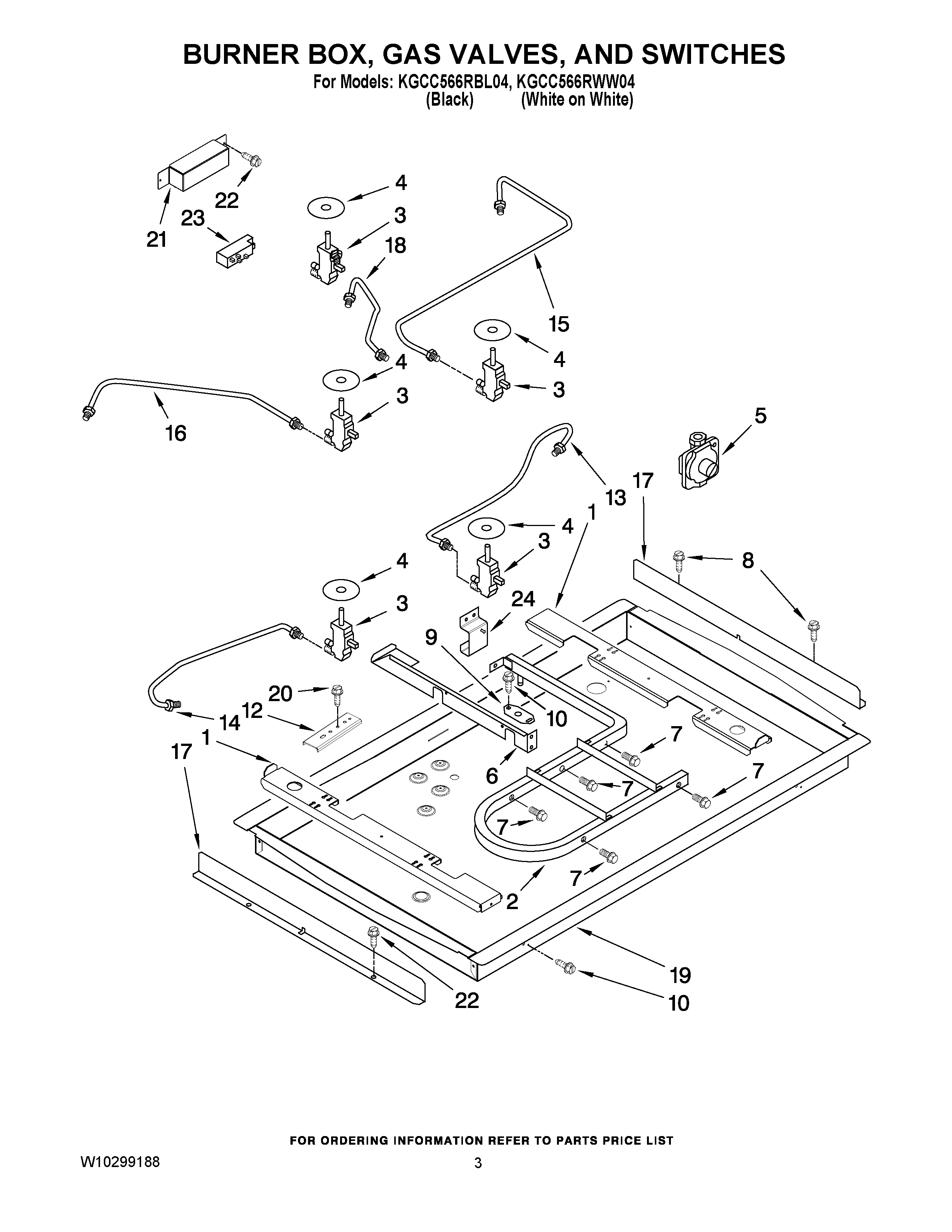

KGCC566RWW04 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
1	8285796 Whirlpool Support Assembly
2	8285751 Whirlpool Oven Manifold Pipe
3	Valve, Gas Burner (Yellow)
3	8286561 Whirlpool Oven Burner Valve
3	WP4456817 Whirlpool Burner Valve
3	Valve, Gas Burner (White)
4	WP3188425 Whirlpool Seal Switch
5	W11170853 Whirlpool Regulator Assembly
6	Rail, Center
7	BOLT, VALVE (4)
8	WP12990527 Whirlpool Microwave Screw
9	8286858 Whirlpool Cover Plate
10	SCREW
12	8186533 Whirlpool Hardware
13	8285768 Whirlpool Oven Gas Tubing
14	8285766 Whirlpool Oven Gas Tubing
15	8285767 Whirlpool Oven Gas Tubing
16	8285769 Whirlpool Gas Tubing
17	3191462 Whirlpool Oven Heat Shield
18	8285770 Whirlpool Gas Tubing Assembly
19	8285773 Whirlpool Burner Box
20	WP3400093 Whirlpool Screw
21	8285789 Whirlpool Heat Shield
22	WP3177991 Whirlpool Screw
23	WPW10110486 Whirlpool Spark Module
24	Bracket, Mounting Orifice
