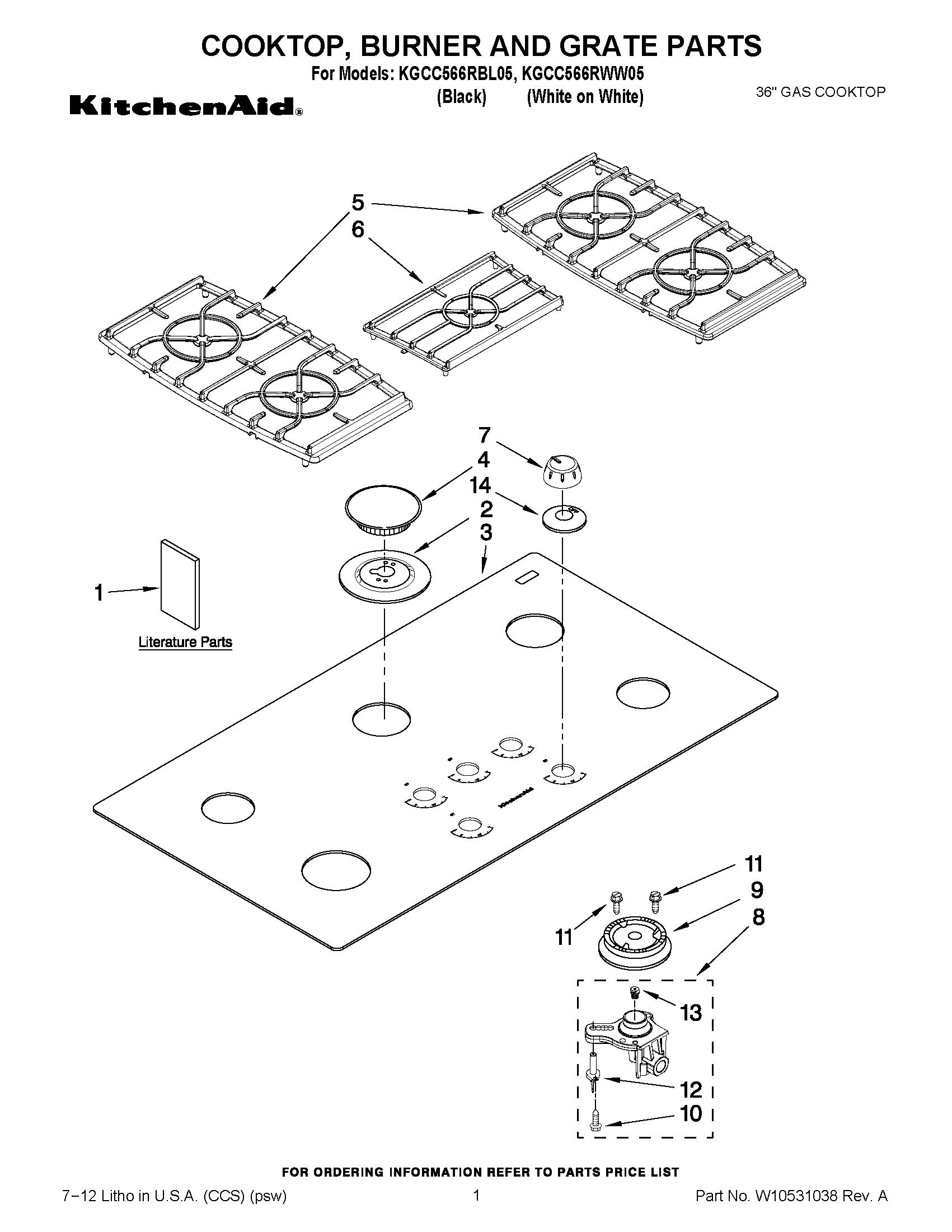

KGCC566RWW05 01 – COOKTOP, BURNER AND GRATE PARTS
Written by
in
KGCC566RWW05 01 – COOKTOP, BURNER AND GRATE PARTS
Products
Position
Product
1
Installation Instructions (Undercounter Oven)
1
Use & Care Guide
1
Installation Instructions
1
Wiring Diagram
1
L.P. Conversion Instructions
1
Safer Cooking Tips (French)
1
SAFER COOKING TIPS (ENGLISH
2
Bezel, Cooktop (RR) (Center) (Black)
2
8285779CG Whirlpool Bezel
2
WPL 9753602CG
2
9753601CG Whirlpool Bezel
2
8285779BL Whirlpool Bezel Assembly
2
9753602BL Whirlpool Bezel
3
W10661511 Whirlpool Maintop Assembly
3
W10661512 Whirlpool Cooktop Assembly
4
WP8286153CG Whirlpool Burner Cap
4
WP8286155CG Whirlpool Burner Cap
4
WP8286156CB Whirlpool Cooktop Burner Cap
4
WP8286155CB Whirlpool Burner Cap
4
WP8286154CB Whirlpool Burner Cap
4
WP8286153CB Whirlpool Burner Cap
4
8286156CG Whirlpool Burner Cap
4
WP8286154CG Whirlpool Burner Cap
5
W11242860 Whirlpool Burner Grate
5
W11502175 Whirlpool Burner Grate
6
8285881CG Whirlpool Burner Grate
6
W11242859 Whirlpool Burner Grate
7
WPW10484149 Whirlpool Knob
7
W10484148 Whirlpool Knob
8
WPW10128451 Whirlpool Orifice Holder
8
WPW10128448 Whirlpool Igniter and Orifice Holder
8
WPW10128450 Whirlpool Orifice Holder
8
WPW10128445 Whirlpool Orifice Holder
9
WPW10406243 Whirlpool Burner Head Auxiliary 6K
9
WPW10406878 Whirlpool Burner Base (16K)
9
WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
9
WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
10
WP8273062 Whirlpool Screw
11
WP3368921 Whirlpool Screw
12
WP9782116 Whirlpool Surface Igniter
13
WP3192523 Whirlpool Orifice
13
8286474 Whirlpool Orifice
13
WP3192529 Whirlpool Orifice Assembly
13
8286551 Whirlpool Oven Orifice
14
W10854242 Whirlpool Grommet
14
WP3180081 Whirlpool Grommet
←
