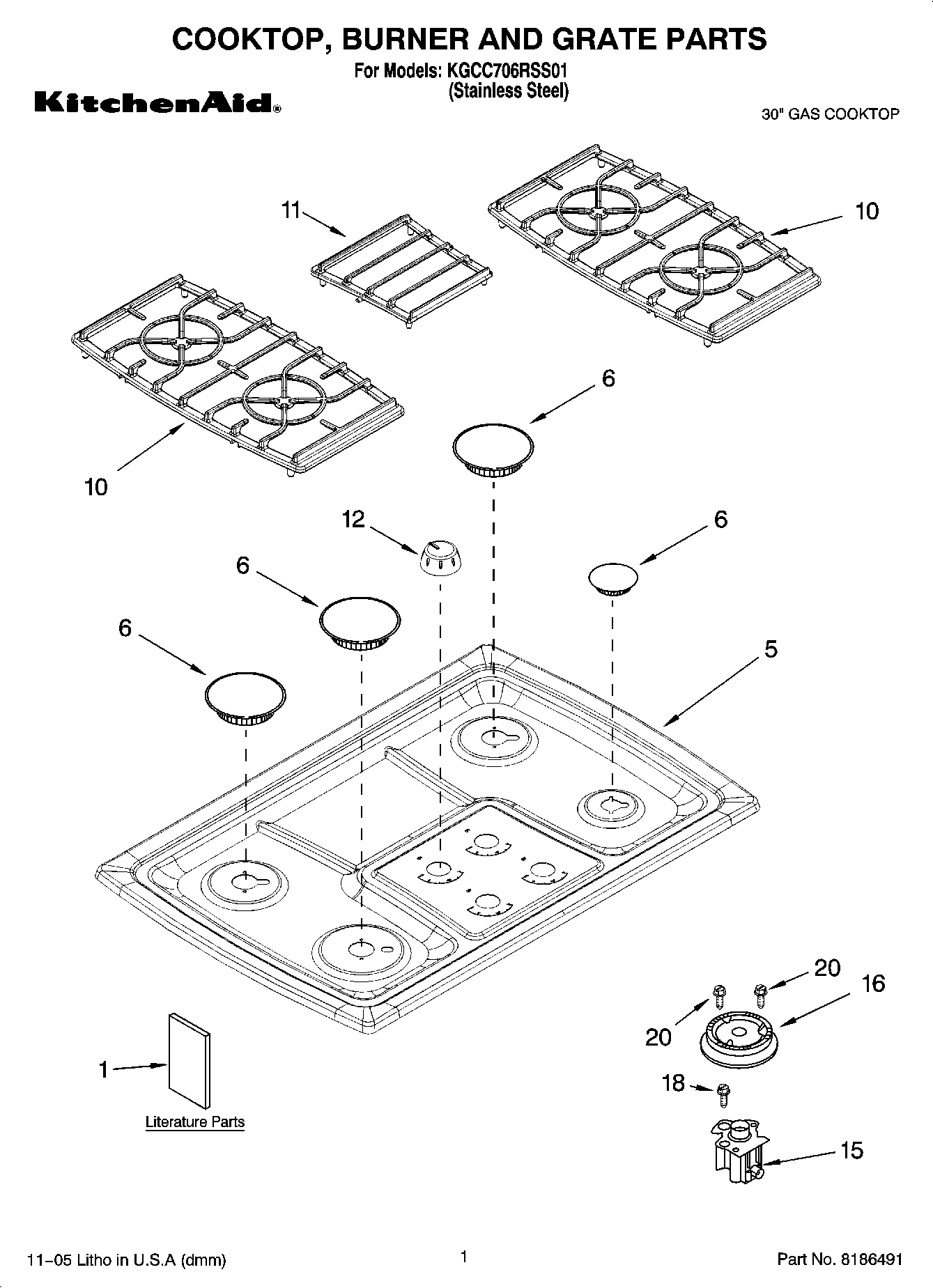

KGCC706RSS01 01 – COOKTOP, BURNER AND GRATE PARTS

KGCC706RSS01 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KGCC706RSS01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Wiring Diagram
1L.P. Conversion Instructions
1Installation Instructions
1Use & Care Guide
1Safe Cooking Tips (French)
1Safe Cooking Tips
5COOKTOP
6WP8286153CB Whirlpool Burner Cap
6WP8286154CB Whirlpool Burner Cap
6WP8286155CB Whirlpool Burner Cap
6WP8286156CB Whirlpool Cooktop Burner Cap
10Grate, Burner
11WP8286452 Whirlpool Grommet
11Grate, Center
12Knob, Control
15WPW10128450 Whirlpool Orifice Holder
15WPW10128448 Whirlpool Igniter and Orifice Holder
15WPW10128451 Whirlpool Orifice Holder
15WP8286177 Whirlpool Orifice Holder
16WPW10406243 Whirlpool Burner Head Auxiliary 6K
16WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
16WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
16WPW10406878 Whirlpool Burner Base (16K)
18WP4449809 Whirlpool Screw
20WP3368921 Whirlpool Screw
