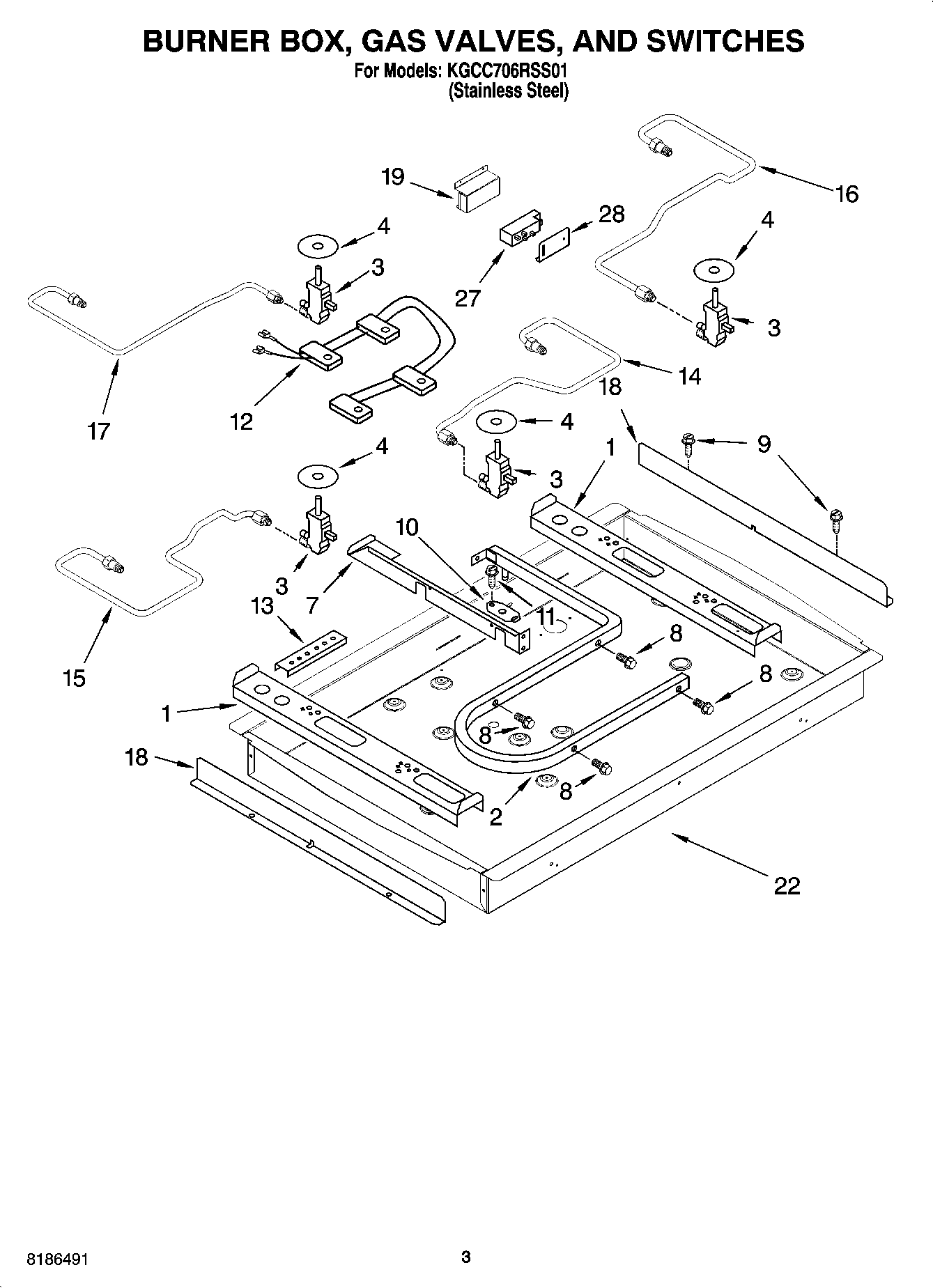

KGCC706RSS01 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

Products

Position	Product
	WIRING HARNESS PARTS
	4456627 Whirlpool Wire Harness
	WP8286320 Whirlpool Spud Orifice
	4456626 Whirlpool Wire
	9759145 Whirlpool Oven Support Bracket
	Hardware Kit (Mounting)
	FOLLOWING PARTS NOT ILLUSTRATED
	WP3177991 Whirlpool Screw
	W10392007 Whirlpool Power Cord
	Miscellaneous
	Cleaner, Stainless Steel
1	8285796 Whirlpool Support Assembly
2	Pipe, Manifold
3	8286561 Whirlpool Oven Burner Valve
3	Valve, Gas Burner (White)
3	Valve, Gas Burner (Yellow)
3	WP4456817 Whirlpool Burner Valve
4	WP3188425 Whirlpool Seal Switch
7	Rail, Center
8	WP3186217 Whirlpool Screw
9	WP12990527 Whirlpool Microwave Screw
10	3192491 Whirlpool Support Bracket
11	W10491985 Whirlpool Screw
12	WP4456905 Whirlpool Wire Harness
13	8186533 Whirlpool Hardware
13	WP3400093 Whirlpool Screw
14	8285793 Whirlpool Gas Tubing
15	8285794 Whirlpool Oven Gas Tubing
16	8285792 Whirlpool Oven Gas Tubing
17	8285795 Whirlpool Oven Gas Tubing
18	3191462 Whirlpool Oven Heat Shield
19	8285788 Whirlpool Oven Heat Shield
22	Burner Box
22	WP3196557 Whirlpool Screw
27	WPW10110491 Whirlpool Spark Module
28	4455837 Whirlpool Oven Mounting Bracket
