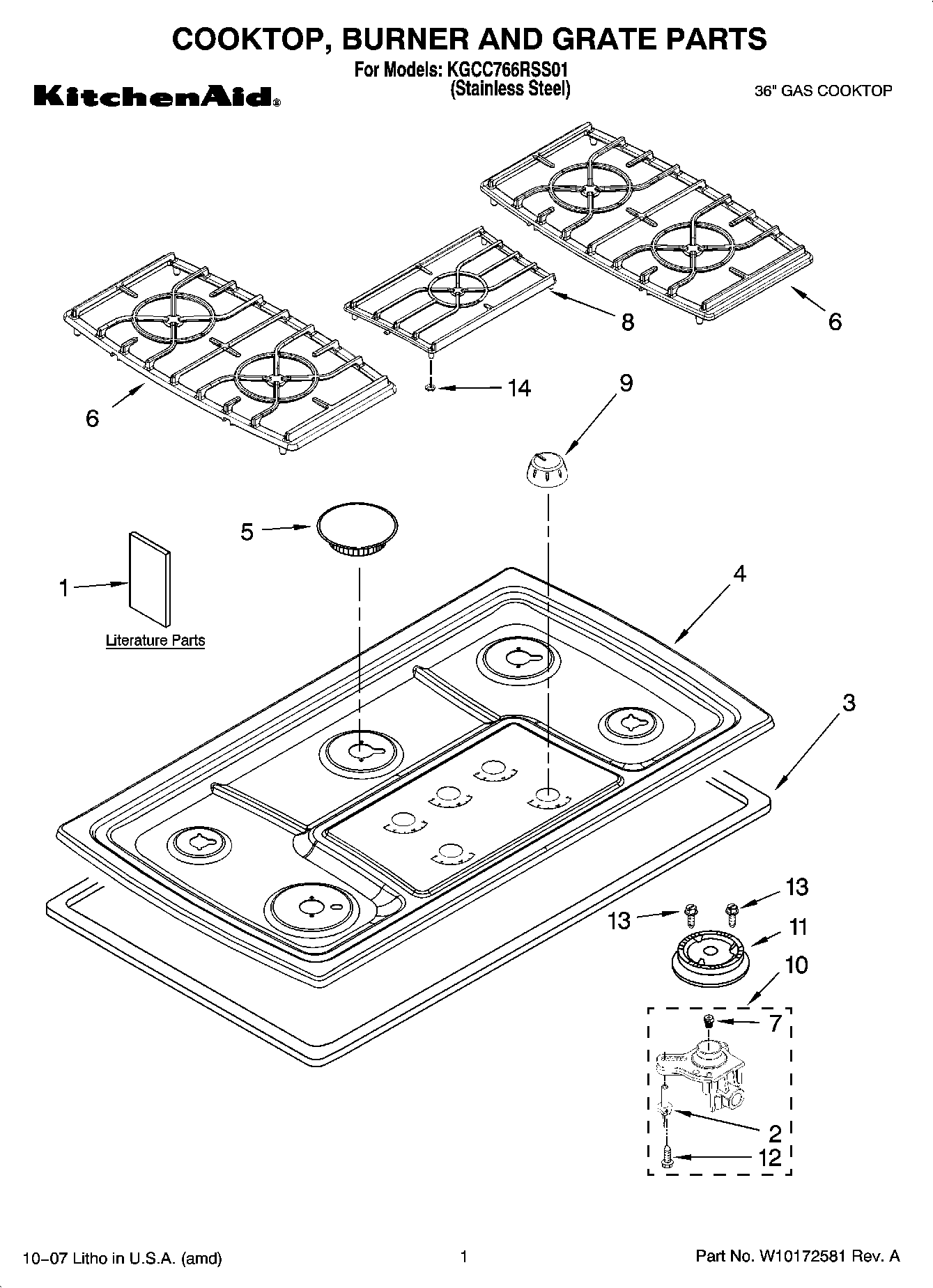

KGCC766RSS01 01 – COOKTOP, BURNER AND GRATE PARTS

KGCC766RSS01 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KGCC766RSS01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Wiring Diagram
1Installation Instructions
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Use & Care Guide
1L.P. Conversion Instructions
2WP9782116 Whirlpool Surface Igniter
3Seal, Foam
4Cooktop
5WP8286154CB Whirlpool Burner Cap
5WP8286153CB Whirlpool Burner Cap
5WP8286155CB Whirlpool Burner Cap
5WP8286156CB Whirlpool Cooktop Burner Cap
6Grate, Burner
78286474 Whirlpool Orifice
7WP3192523 Whirlpool Orifice
7Orifice (RR)
7WP3192529 Whirlpool Orifice Assembly
8Grate, Filler
9WP8286094BL Whirlpool Knob
10Holder, Orifice (RR)
10WPW10128448 Whirlpool Igniter and Orifice Holder
10WPW10128450 Whirlpool Orifice Holder
11WPW10406878 Whirlpool Burner Base (16K)
11WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
11WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
11WPW10406243 Whirlpool Burner Head Auxiliary 6K
12WP4449809 Whirlpool Screw
13WP3368921 Whirlpool Screw
14WP8286452 Whirlpool Grommet
