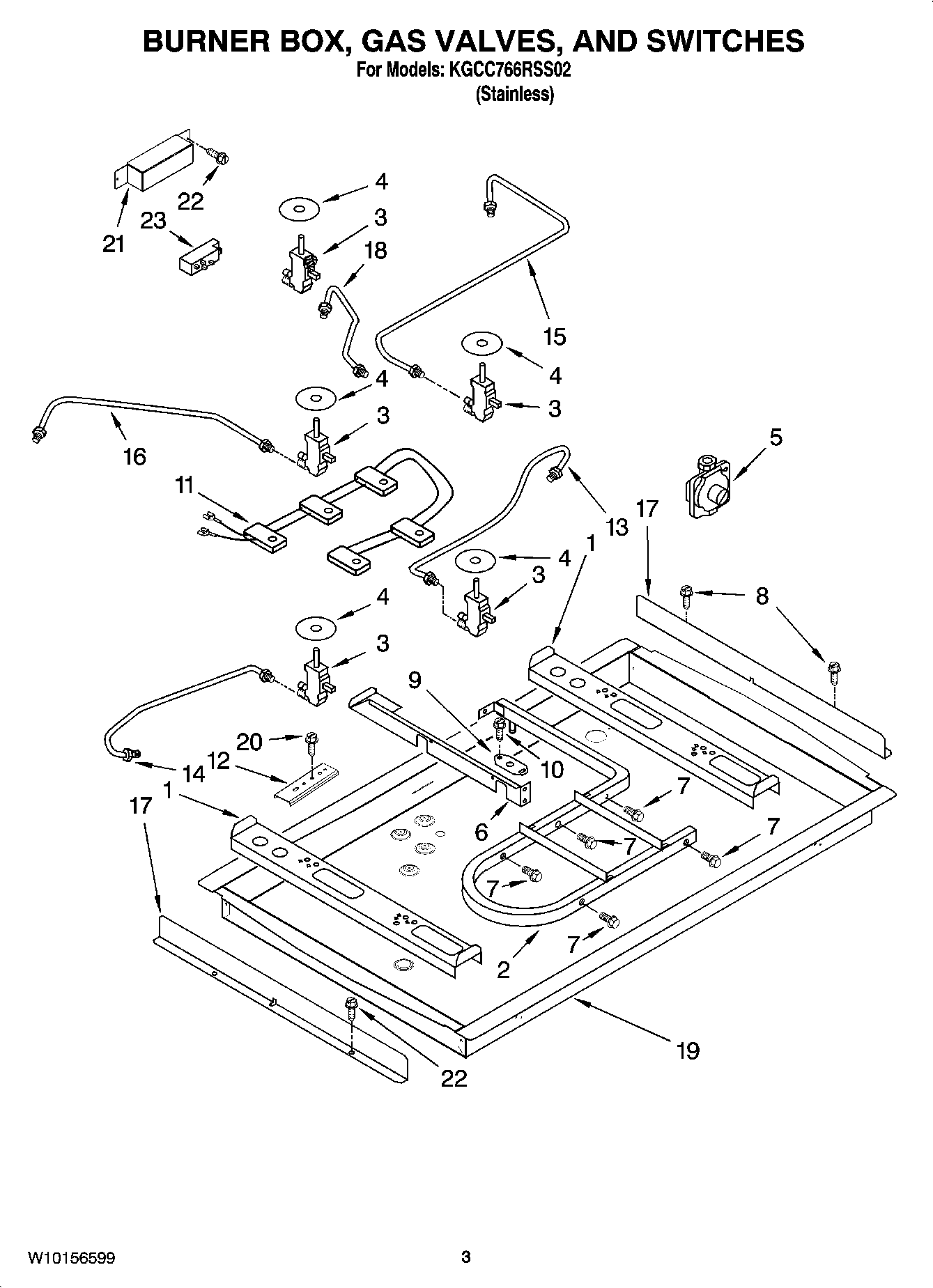

KGCC766RSS02 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

KGCC766RSS02 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

Written by

in

KGCC766RSS02 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

Products

PositionProduct
WIRING HARNESS PARTS
4456627 Whirlpool Wire Harness
4456626 Whirlpool Wire
8285402 Whirlpool Oven Grounding Wire
Following Parts Not Illustrated
WP3177991 Whirlpool Screw
W10392007 Whirlpool Power Cord
Miscellaneous
WP8286320 Whirlpool Spud Orifice
18285796 Whirlpool Support Assembly
28285751 Whirlpool Oven Manifold Pipe
3Valve, Gas Burner (Yellow)
3Valve, Gas Burner (White)
38286561 Whirlpool Oven Burner Valve
3WP4456817 Whirlpool Burner Valve
4WP3188425 Whirlpool Seal Switch
5W11170853 Whirlpool Regulator Assembly
6Rail, Center
7WP3186217 Whirlpool Screw
8WP12990527 Whirlpool Microwave Screw
93192491 Whirlpool Support Bracket
10W10491985 Whirlpool Screw
11WP4456901 Whirlpool Wire Harness
128186533 Whirlpool Hardware
138285768 Whirlpool Oven Gas Tubing
148285766 Whirlpool Oven Gas Tubing
158285767 Whirlpool Oven Gas Tubing
168285769 Whirlpool Gas Tubing
173191462 Whirlpool Oven Heat Shield
188285770 Whirlpool Gas Tubing Assembly
19Burner Box
20WP3400093 Whirlpool Screw
218285789 Whirlpool Heat Shield
23WPW10110486 Whirlpool Spark Module
