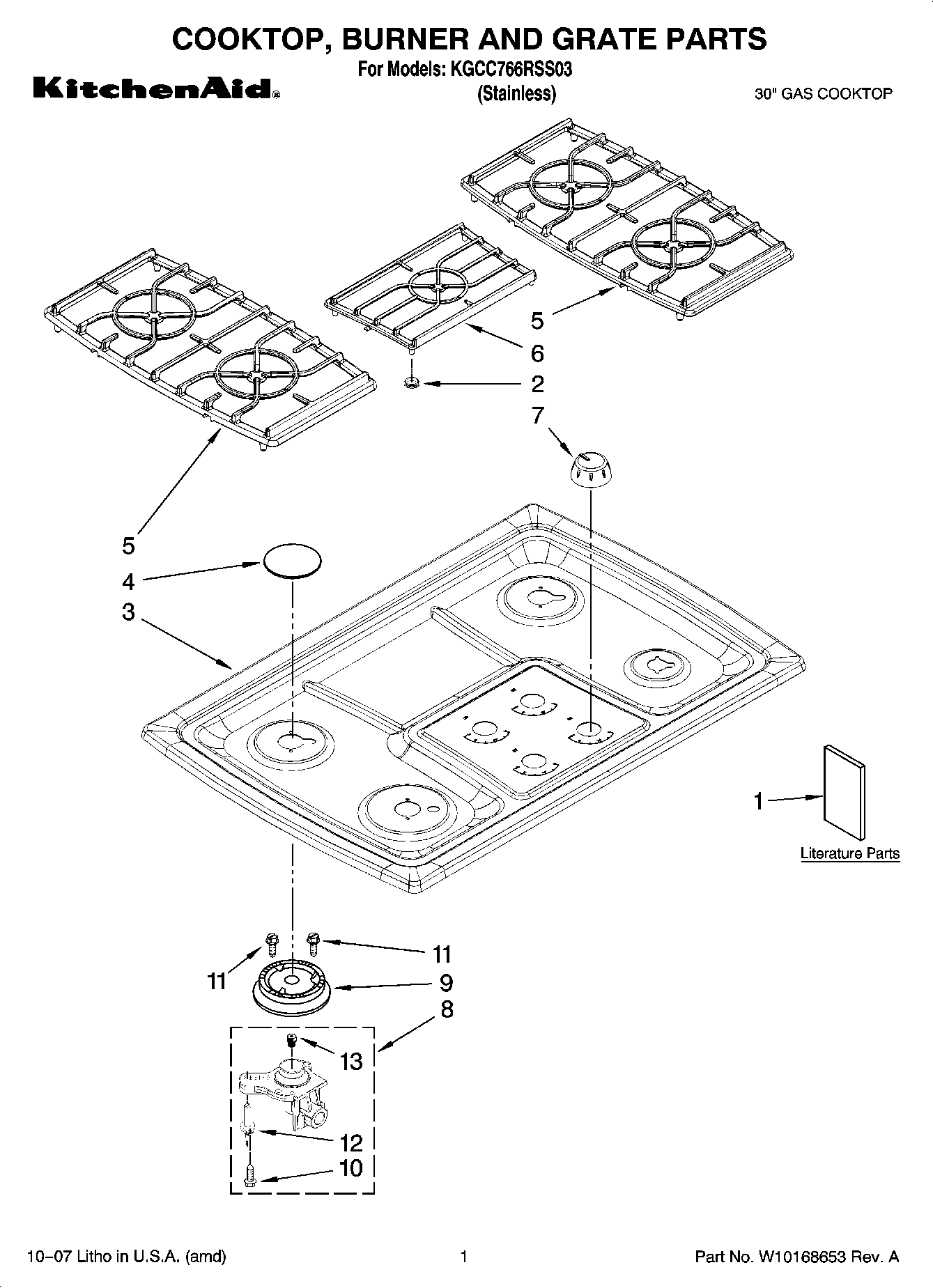

KGCC766RSS03 01 – COOKTOP, BURNER AND GRATE PARTS

KGCC766RSS03 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KGCC766RSS03 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Installation Instructions
1Use & Care Guide
1Safe Cooking Tips
1Safe Cooking Tips (French)
1L.P. Conversion Instructions
1Installation Instructions (Undercounter Oven)
2WP8286452 Whirlpool Grommet
3Cooktop
4WP8286155CB Whirlpool Burner Cap
4WP8286154CB Whirlpool Burner Cap
4WP8286153CB Whirlpool Burner Cap
4WP8286156CB Whirlpool Cooktop Burner Cap
5Grate, Burner
6Grate, Filler
7Knob, Control
8Holder, Orifice (RR)
8WPW10128450 Whirlpool Orifice Holder
8WPW10128448 Whirlpool Igniter and Orifice Holder
8WPW10128445 Whirlpool Orifice Holder
9WPW10406243 Whirlpool Burner Head Auxiliary 6K
9WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
9WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
9WPW10406878 Whirlpool Burner Base (16K)
10WP8273062 Whirlpool Screw
11WP3368921 Whirlpool Screw
12WP9782116 Whirlpool Surface Igniter
138286474 Whirlpool Orifice
13Orifice (RR)
13WP3192529 Whirlpool Orifice Assembly
13WP3192523 Whirlpool Orifice
