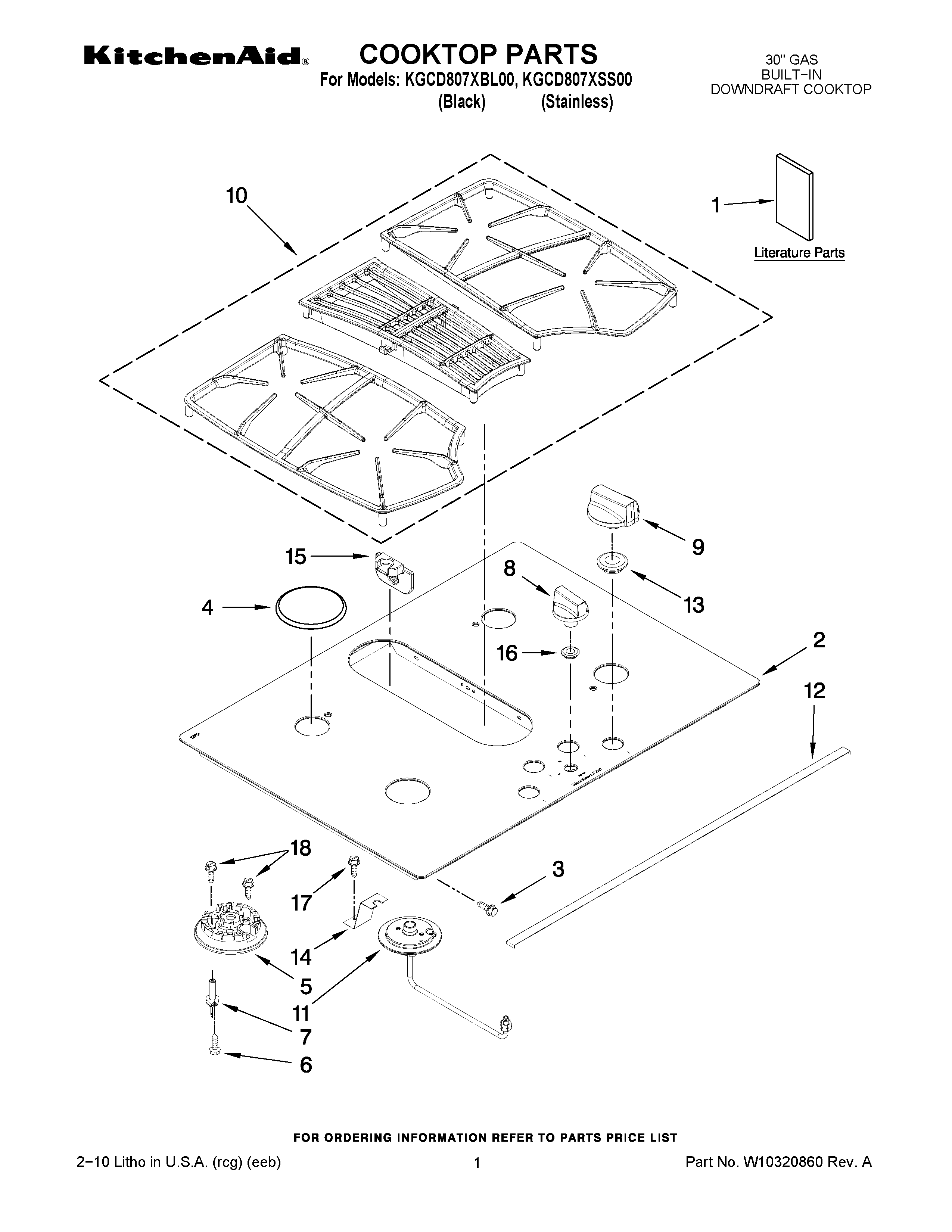

KGCD807XBL00 01 – COOKTOP PARTS

KGCD807XBL00 01 – COOKTOP PARTS

Written by

in

KGCD807XBL00 01 – COOKTOP PARTS

Products

PositionProduct
1INSTRUCTIONS LP CONVERSION
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1WIRING DIAGRAM
1CARD, FLOW TEST
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
2W10296933 Whirlpool Cooktop
4CAP, BURNER (SMALL)
4CAP, BURNER (RF)
4CAP, BURNER (LARGE)
5BURNER, HEAD (RF)
5BURNER, HEAD (LR/RR)
5BURNER, HEAD (LF)
6SCREW
7IGNITOR, COOKTOP
8KNOB, FAN
9KNOB, CONTROL
10GRATE (L/R/C)
11HOLDER, ORIFICE (RF)
11HOLDER, ORIFICE (RR)
11HOLDER, ORIFICE (LF)
11HOLDER, ORIFICE (LR)
12TRIM, STAINLESS (FRONT)
12TRIM, STAINLESS (REAR)
13GROMMET
14BRACKET, ORIFICE
15LOCATOR, GRATE
16GROMMET
17SCREW
18Screw (8)
