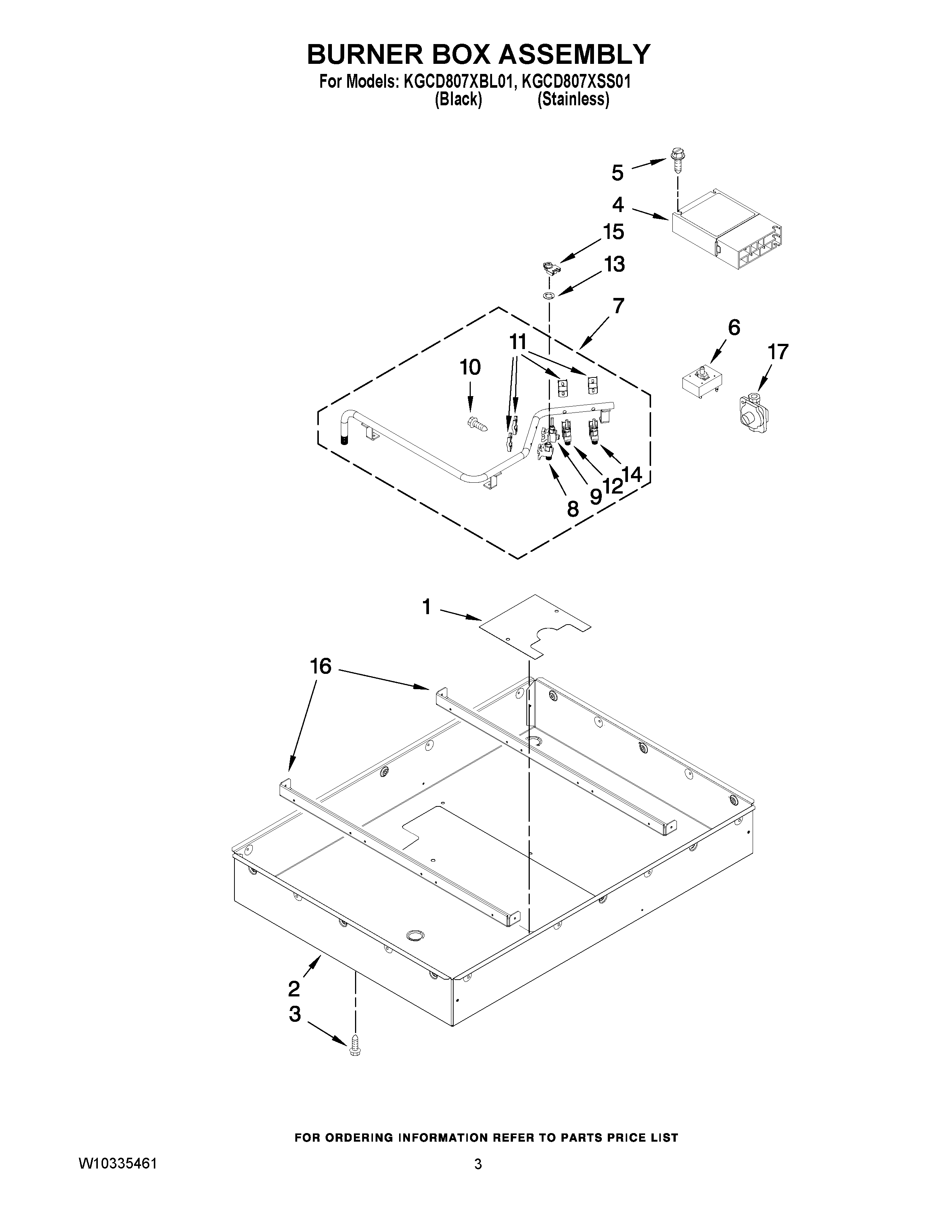

KGCD807XBL01 02 – BURNER BOX ASSEMBLY

Products

PositionProduct
1INSULATOR, BAFFLE
2BOTTOM, BURNER
3Screw
4MODULE, SPARK
5SCREW
6SWITCH, ROTARY
7SEAL, MANIFOLD
7PIPE,MANIFOLD ASY.
8VALVE, 9.2K
9VALVE, 5K
10SCREW
11BRACKET, VALVE
12VALVE, 9.2K
13GASKET (RIGHT)
13GASKET (LEFT)
14VALVE, 17K
15SWITCH, SPARK (LEFT)
15SWITCH, SPARK (RIGHT)
16BRACKET, BRACE
17REGULATOR, PRESSURE
