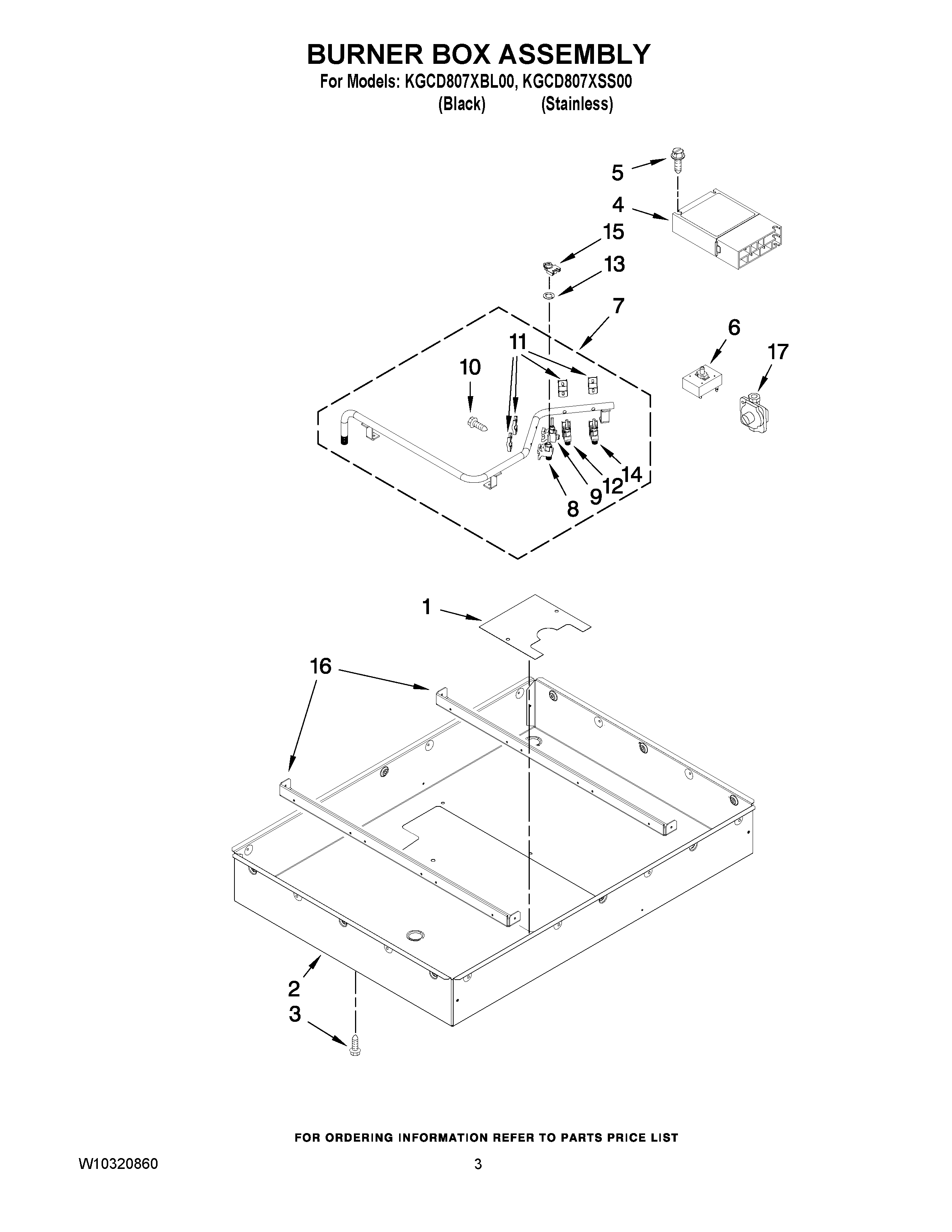

KGCD807XSS00 02 – BURNER BOX ASSEMBLYadmin2025-04-26T11:41:37+00:00KGCD807XSS00 02 – BURNER BOX ASSEMBLY
Products
| Position | Product |
|---|
| 1 | INSULATOR, BAFFLE |
| 2 | BOTTOM, BURNER MOTOR HARNESS |
| 4 | MODULE, SPARK |
| 5 | SCREW |
| 6 | SWITCH, ROTARY |
| 7 | SEAL, MANIFOLD |
| 7 | PIPE,MANIFOLD ASY. |
| 8 | VALVE, 9.2K |
| 9 | VALVE, 5K |
| 10 | SCREW |
| 11 | BRACKET, VALVE |
| 12 | VALVE, 9.2K |
| 13 | GASKET (RIGHT) |
| 13 | GASKET (LEFT) |
| 14 | VALVE, 17K |
| 15 | SWITCH, SPARK (LEFT) |
| 15 | SWITCH, SPARK (RIGHT) |
| 16 | BRACKET, BRACE |
| 17 | REGULATOR, PRESSURE |
