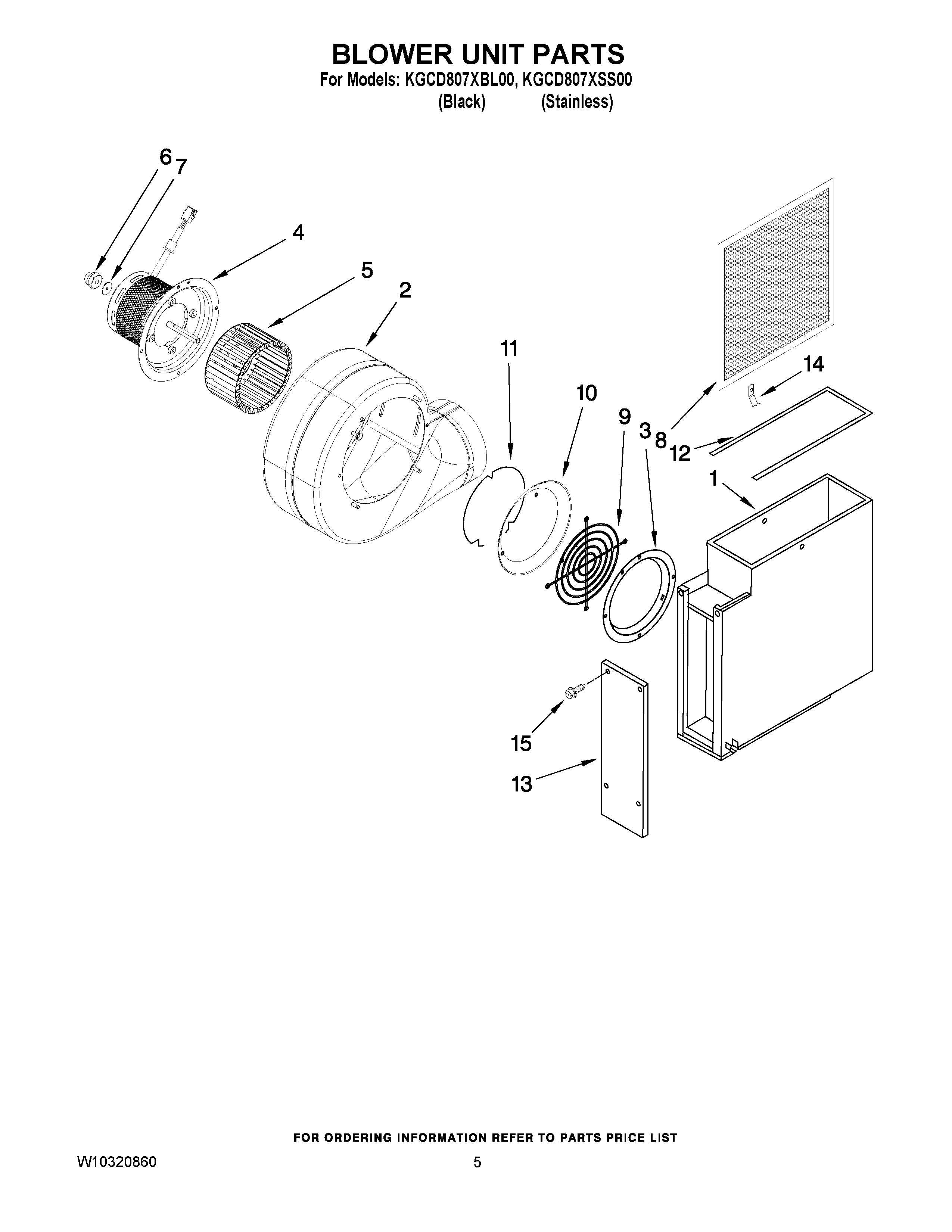

KGCD807XSS00 03 – BLOWER UNIT PARTS

Products

PositionProduct
1ASSEMBLY,PLENUM
2HOUSING, BLOWER
3RING, INLET
4WPW10241953 Whirlpool Blower Motor
5WHEEL, BLOWER
6NUT, MTG.
7WASHER
8FILTER, GREASE
9GUARD, BLOWER
10RING, RESTRICTOR
11SPRING, RETAINER
12GASKET, PLENUM
13PLATE, COVER
14RETAINER, FILTER
15Screw
