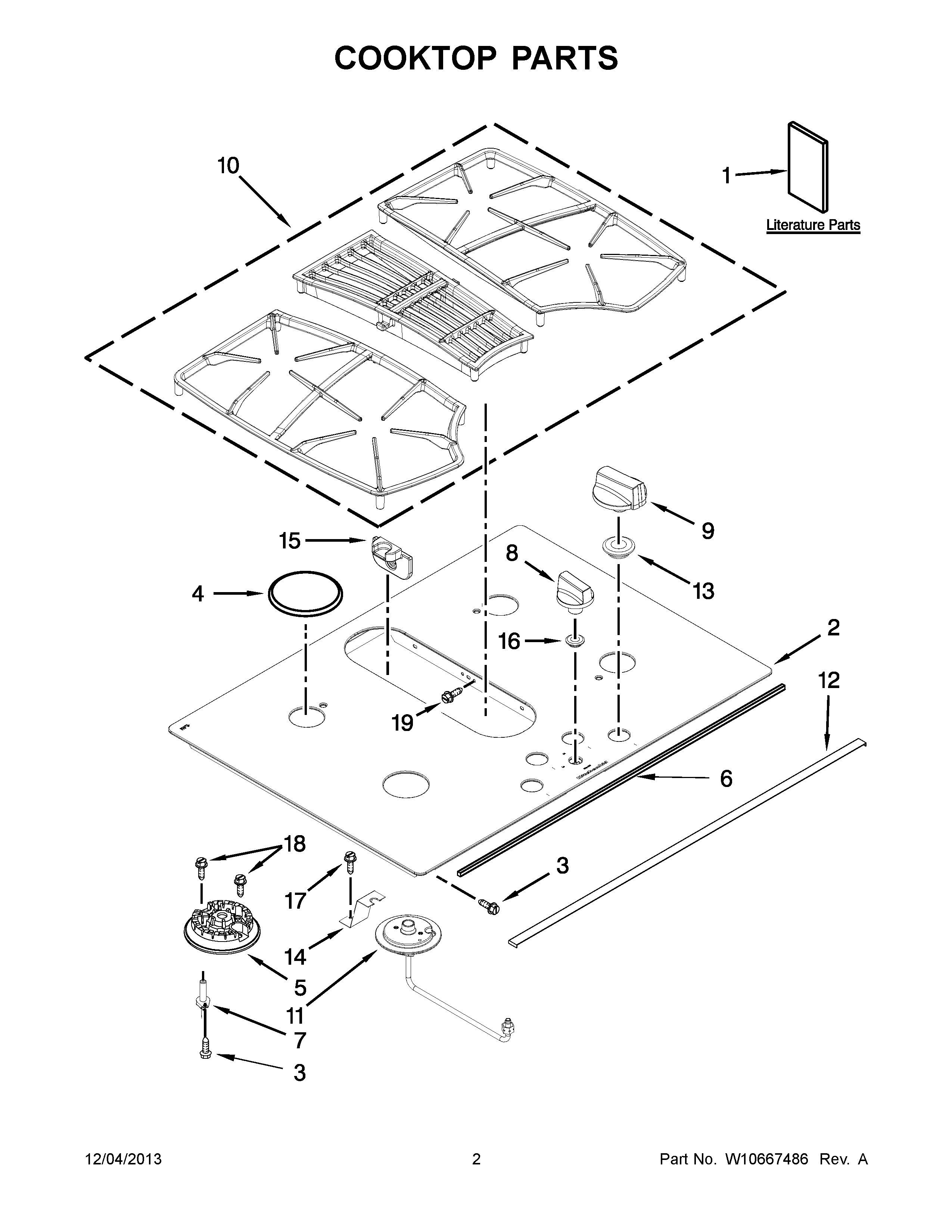

KGCD807XSS02 02 – COOKTOP PARTS

KGCD807XSS02 02 – COOKTOP PARTS

Written by

in

KGCD807XSS02 02 – COOKTOP PARTS

Products

PositionProduct
1WIRING DIAGRAM
1CARD, FLOW TEST
1USE & CARE GUIDE
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
1INSTALLATION INSTRUCTIONS
2W10296933 Whirlpool Cooktop
3SCREW
4CAP, BURNER (RF) (BLACK)
4CAP, BURNER (CTR) (BLACK)
4CAP, BURNER (LF) (BLACK)
5BURNER, HEAD (LR/RR)
5BURNER, HEAD (RF)
5BURNER, HEAD (LF)
6WP8286642 Whirlpool Tape
7IGNITOR, COOKTOP
8WPW10303835 Whirlpool Stove Burner Control Knob
9WPW10301588 Whirlpool Burner Knob
10ASSEMBLY, GRATE
11HOLDER, ORIFICE (RF)
11HOLDER, ORIFICE (LF)
11HOLDER, ORIFICE (LR)
11HOLDER, ORIFICE (RR)
12TRIM, STAINLESS (FRONT)
12TRIM, STAINLESS (REAR)
13GROMMET
14BRACKET, ORIFICE
15LOCATOR, GRATE
16WPW10293874 Whirlpool Stove Cooktop Knob Grommet
17SCREW
18WP3368921 Whirlpool Screw
19Screw
