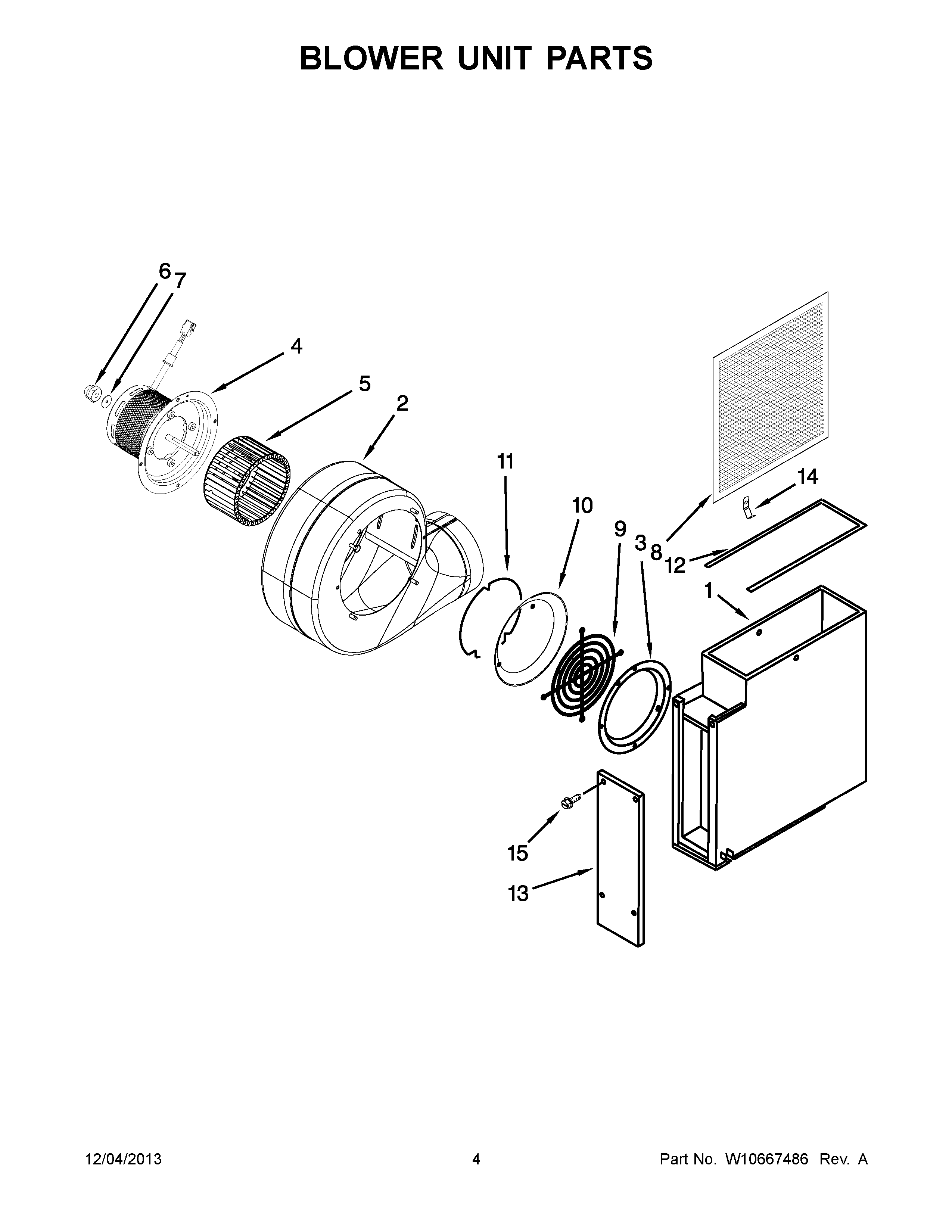

KGCD807XSS02 03 – BLOWER UNIT PARTSadmin2025-04-26T11:40:17+00:00KGCD807XSS02 03 – BLOWER UNIT PARTS
Products
| Position | Product |
|---|
| 1 | ASSEMBLY,PLENUM |
| 2 | HOUSING, BLOWER |
| 3 | RING, INLET |
| 4 | WPW10241953 Whirlpool Blower Motor |
| 5 | WHEEL, BLOWER |
| 6 | NUT, MTG. |
| 7 | WASHER |
| 8 | FILTER, GREASE |
| 9 | GUARD, BLOWER |
| 10 | RING, RESTRICTOR |
| 11 | SPRING, RETAINER |
| 12 | GASKET, PLENUM |
| 13 | PLATE, COVER |
| 14 | RETAINER, FILTER |
| 15 | Screw |
