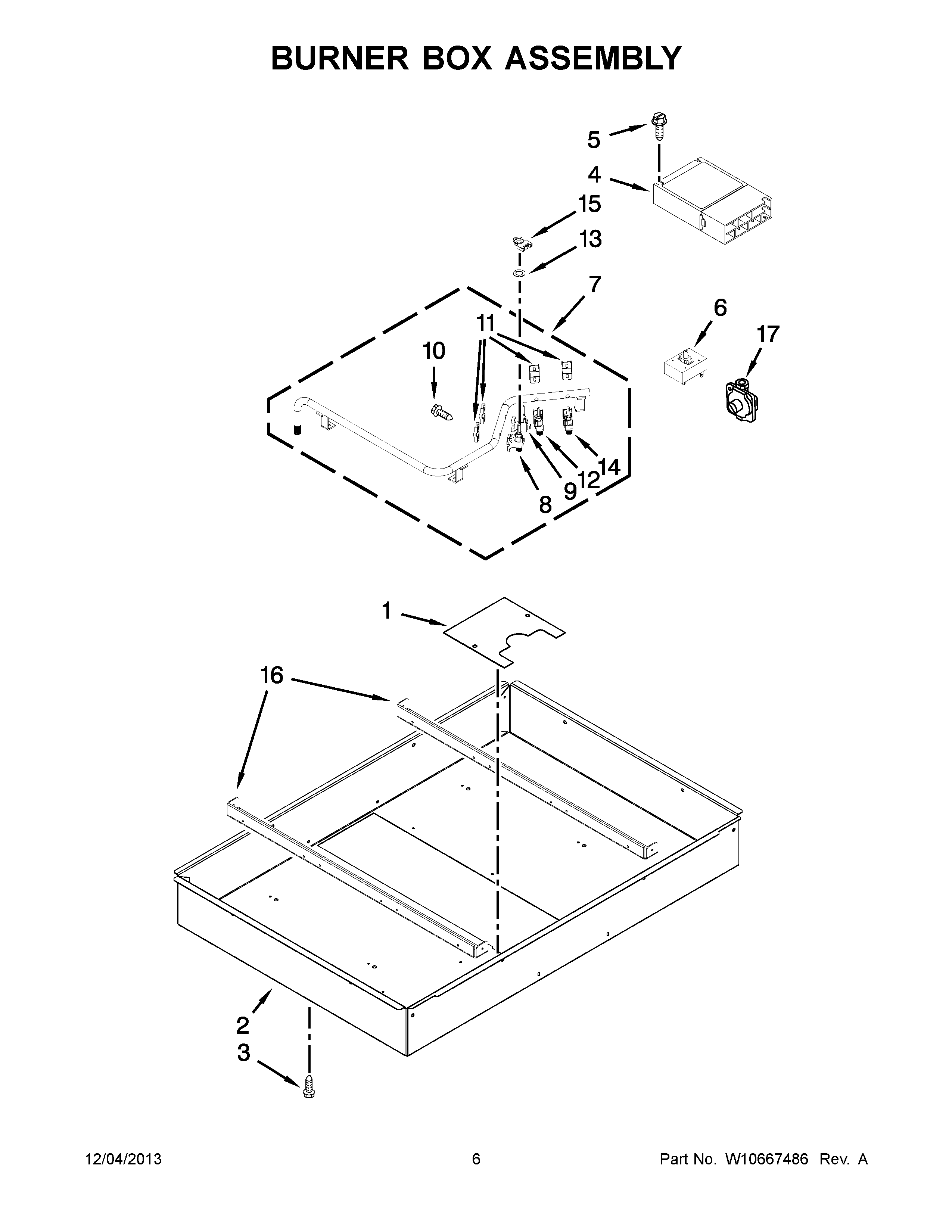

KGCD807XSS02 04 – BURNER BOX ASSEMBLY

KGCD807XSS02 04 – BURNER BOX ASSEMBLY

Written by

in

KGCD807XSS02 04 – BURNER BOX ASSEMBLY

Products

PositionProduct
1INSULATOR, BAFFLE
2BOX, BURNER
3Screw
4WPW10475147 Whirlpool Spark Module
5SCREW
6SWITCH, ROTARY
7PIPE,MANIFOLD ASY.
8VALVE, 9.2K
9VALVE, 5K
10SCREW
11BRACKET, VALVE
12VALVE, 9.2K
13GASKET (RIGHT)
13GASKET (LEFT)
14VALVE, 17K
15SWITCH, SPARK (RIGHT)
15SWITCH, SPARK (LEFT)
16BRACKET, BRACE
17REGULATOR, PRESSURE
