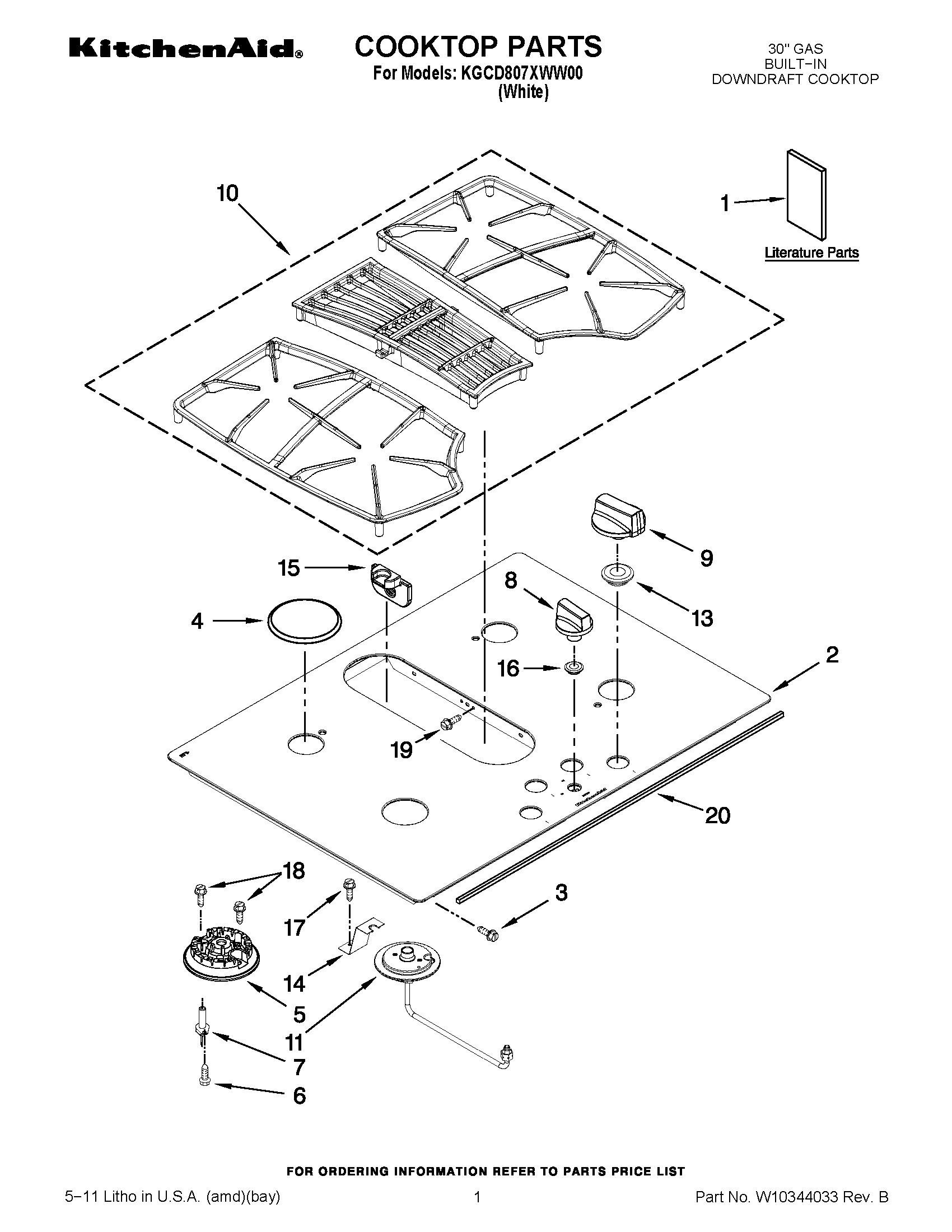

KGCD807XWW00 01 – COOKTOP PARTS

KGCD807XWW00 01 – COOKTOP PARTS

Written by

in

KGCD807XWW00 01 – COOKTOP PARTS

Products

PositionProduct
1USE & CARE GUIDE
1WIRING DIAGRAM
1CARD, FLOW TEST
1INSTRUCTIONS LP CONVERSION
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
1INSTALLATION INSTRUCTIONS
2TOP, MAIN
4CAP, BURNER
5BURNER, HEAD (RF)
5BURNER, HEAD (LF)
5BURNER, HEAD (LR/RR)
6SCREW
7IGNITOR, COOKTOP
8WPW10303835 Whirlpool Stove Burner Control Knob
9WPW10301588 Whirlpool Burner Knob
10GRATE (L/R/C)
11HOLDER, ORIFICE (RF)
11HOLDER, ORIFICE (RR)
11HOLDER, ORIFICE (LF)
11HOLDER, ORIFICE (LR)
13GROMMET
14BRACKET, ORIFICE
15LOCATOR, GRATE
16GROMMET
17SCREW
18WP3368921 Whirlpool Screw
19Screw
20TAPE, FOAM
