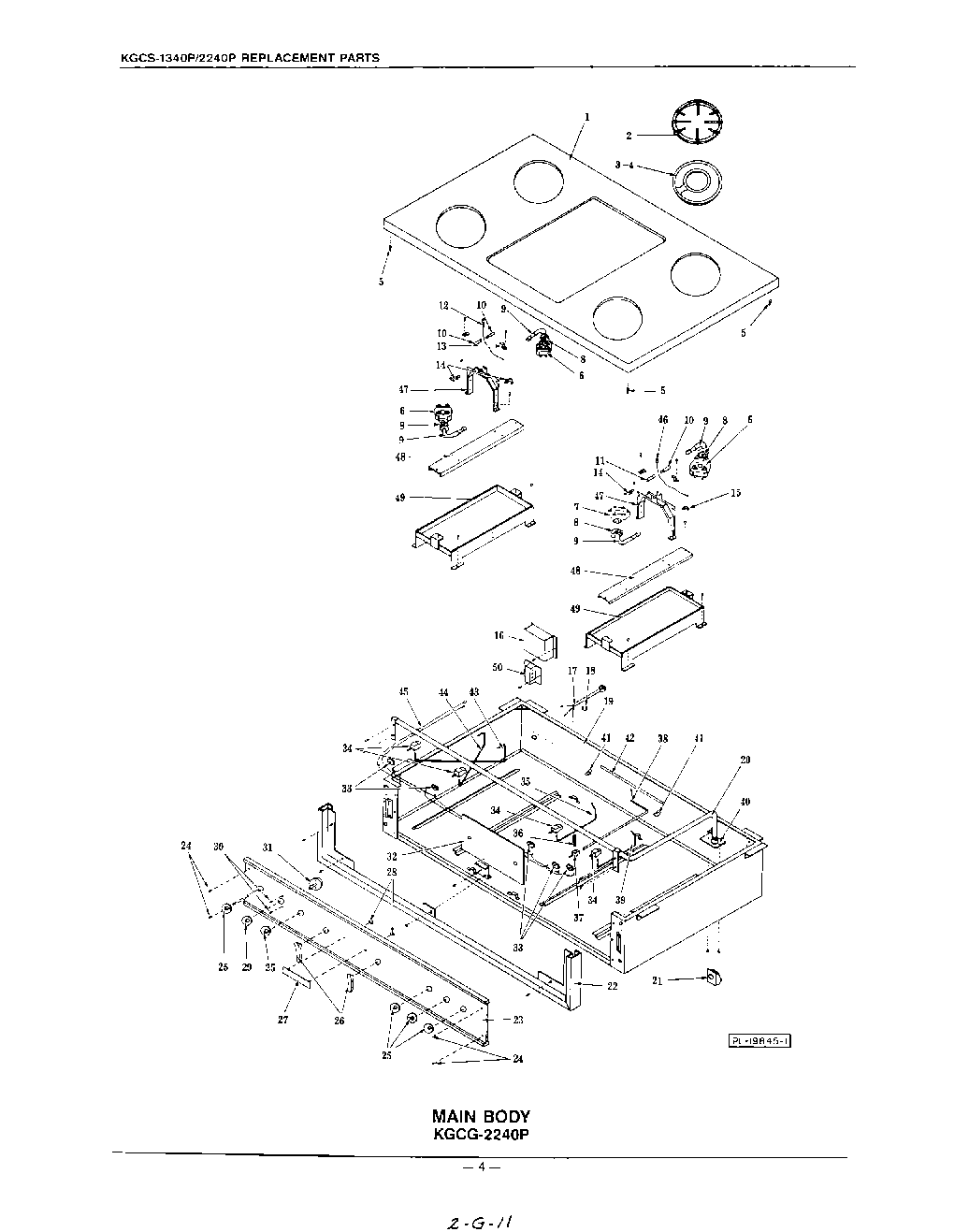

KGCG220SBC0 03 – MAIN BODY

Products

Position	Product
1	Cooktop
2	Grate
3	Drip Ring - LF, LR & RR
4	Drip Ring - RF
5	Tee Bolt
6	Top Burner - LF, LR & RR
7	Top Burner - RF
8	Burner Gasket
9	Venturi
10	Flash Tube
11	Oven Door Lock Box Asm. (Inc. Key 74)
12	Ignitor and Cap Assembly, Broiler
13	Flash Tube Retainer
14	Elbow Mixer
15	Elbow Mixer - RF
16	Module Cover
17	Service Cord
18	Bushing-Strain Relief (Straight)
19	Housing
20	Manifold
21	Pressure Regulator 1/2 x 1/2
22	Front Frame
23	Control Panel
24	Screw, 10AB x 1/2`` POHSMS
25	Knob, Burner
26	Handle
27	Nameplate
28	Special Nut - 1/8`` Stud ``Palnut``
29	Knob - Timer
30	Screw, 5-40 x 1/2`` RHMS - Slot
31	Timer
32	Control Panel Heat Shield
33	Switch
34	Valve, Top Burner
35	Tubing, Burner, Right Rear
36	Valve Adaptor
37	Valve, Broiler
38	Tubing, Broiler
39	Tubing, Burner, Right Front
40	Inlet Cover Plate
41	Conduit Clamp
42	Conduit
43	Tubing, Burner, Left Rear
44	Tubing, Burner, Left Front
45	Switch Harness
46	Ignitor and Cap Assembly, Right
47	Orifice Ignitor Bracket
48	Burner Support
49	Burner Pan
50	Spark Module
